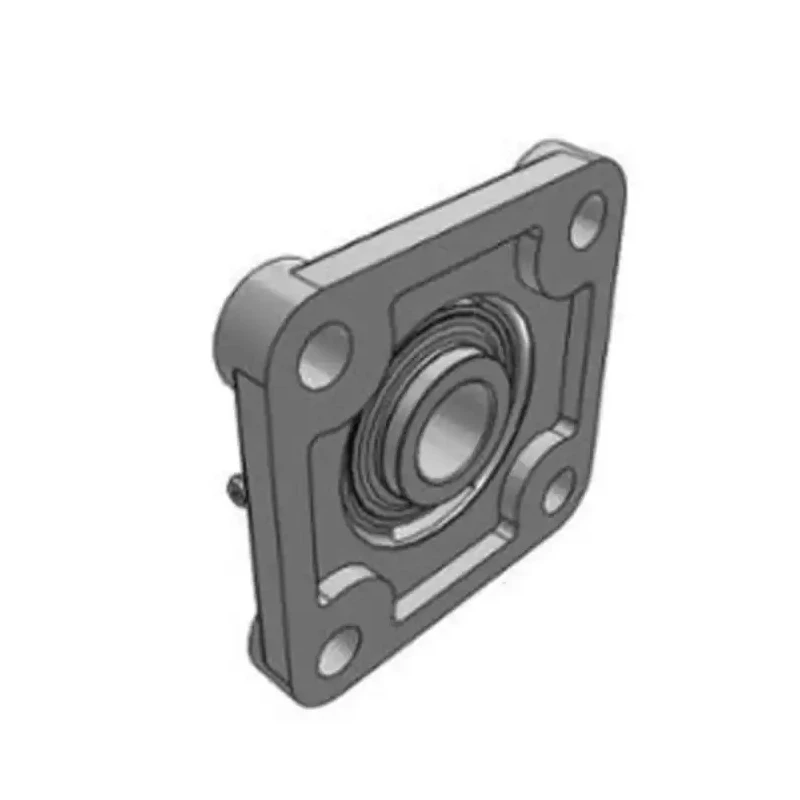

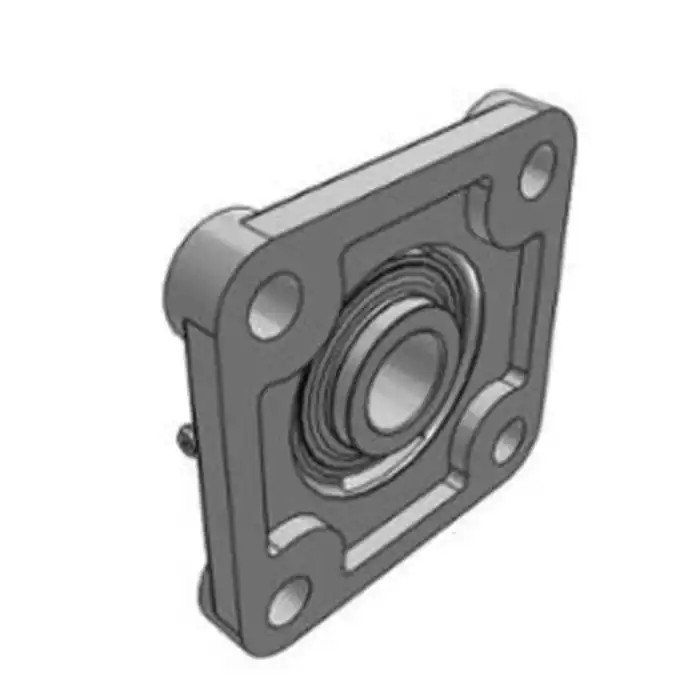

SKF 4 Hole Cylindrical Flange Bearing Unit Cast Iron, 22.25 mm ID, 95mm Length, Set Screw Locking UCF 205-14

The SKF UCF 205-14 is a 4 Hole Cylindrical Flange Bearing Unit made from robust cast iron, designed for high reliability in industrial machinery. It features a 22.25 mm inside diameter with a cylindrical bore type that enables easy mounting onto shafts using set screw locking for secure fitment.

This flange bearing unit has precise mounting provisions with four holes spaced 70 mm apart centre-to-centre, each with a 12 mm diameter to facilitate secure attachment to support surfaces. The dimensions include a length of 95 mm, width of 35.7 mm, and depth of 70 mm, ensuring stability and compatibility with standard industrial equipment.

The SKF UCF 205-14 unit is based on the UCF series and ensures excellent load handling with a static load rating of 7.8 kN and a dynamic load rating of 14 kN. It safely supports shaft speeds up to 5850 rpm without performance compromises. The open end type bearing allows for efficient rotation and maintenance.

Manufactured with cast iron housing, this bearing unit provides durability and long service life in demanding environments. The set screw locking method allows for quick and reliable fixing of the bearing insert to the shaft, making installation straightforward.

Typical industrial applications include mechanical machinery, conveyor systems, and power transmission where reliable bearing units are critical. The unit meets quality expectations for both heavy industrial and commercial use. It is sourced from China and supplied new with no additional certifications.

The unit has a length of 95 mm, width of 35.7 mm, and depth of 70 mm. It features 4 mounting holes with centre-to-centre spacing of 70 mm and 12 mm mount hole size. The bearing end type is open with a cylindrical bore type for secure shaft fitting.

The unit has a static load rating of 7.8 kN and dynamic load rating of 14 kN, suitable for demanding industrial applications. Rated for a limiting speed of 5850 rpm, it offers reliable rotational performance. Constructed with cast iron material for durability and strength.

The locking mechanism uses set screws to secure the bearing in place. Designed for industrial use in mechanical machinery and spares. Country of origin is China. Explore more models of Bearing Units and related mechanical components at EnvMart to find the perfect fit for your industrial needs.
