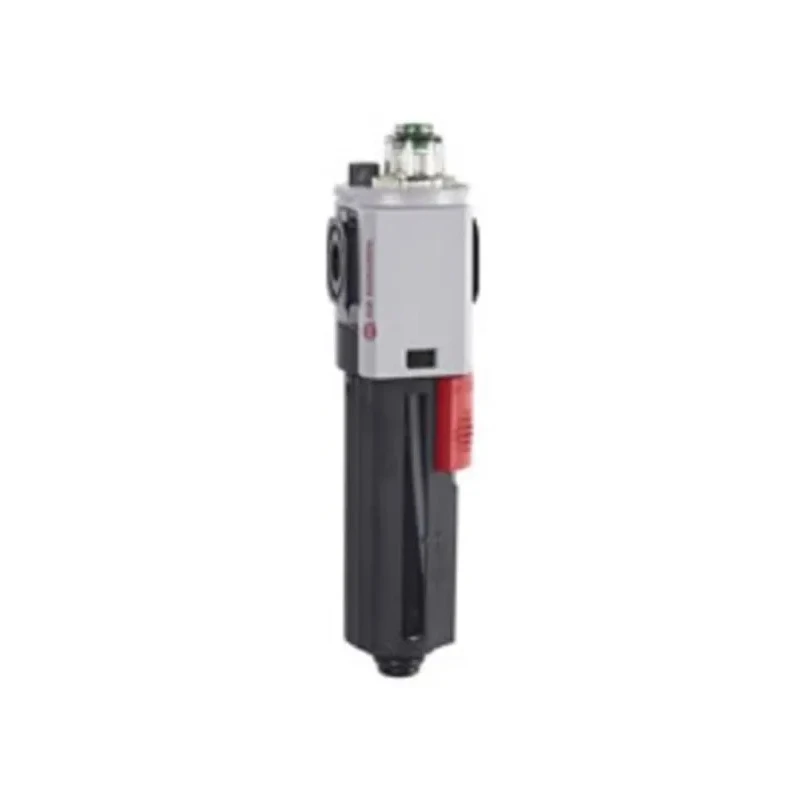

Norgren Pneumatic Air Lubricator 3/8 in Port Size 17 bar Operating Pressure L82C-3GP-EDN

Norgren L82C-3GP-EDN Pneumatic Air Lubricator from the L82 series is engineered for efficient air preparation in pneumatic systems, particularly to lubricate compressed air to protect downstream pneumatic equipment and extend their service life. With a port size of 3/8 inch and maximum operating pressure of 17 bar, this lubricator ensures precise oil-fog delivery to maintain system reliability.

The device features a robust die cast aluminium housing combined with a die cast zinc metal bowl. The metal bowl is equipped with a prismatic liquid level indicator lens which allows operators to monitor oil levels visually. Its flow sensor maintains a nearly constant oil to air ratio over a broad range of air flow rates, optimizing lubrication efficiency.

The lubricator operates effectively within a temperature range of -20°C to 65°C, making it suitable for various industrial and manufacturing environments. The incorporation of a double safety lock bowl provides added security during operation and maintenance.

This unit’s compact design, measuring 186 mm in height and 52 mm in width, facilitates easy installation in constrained pneumatic setups. It uses the G thread connection standard for compatibility with common pneumatic piping and utilizes oil-fog type oil feed system.

Due to its dependable performance, this air lubricator is employed widely in industrial automation, fluid power systems, manufacturing processes, and general pneumatic air preparation applications. It helps reduce wear and tear of pneumatic components through effective lubrication.

Features die cast aluminium housing with a die cast zinc metal bowl for durability. Equipped with a prismatic liquid level indicator lens for easy oil level monitoring. Flow sensor provides a nearly constant oil to air ratio over a wide range of flows.

Suitable for operating temperatures from -20°C to 65°C. Incorporates a double safety lock bowl for secure usage. Designed to handle a maximum operating pressure of up to 17 bar. Compact dimensions with an overall height of 186 mm and width of 52 mm.

Compatible with G series connection threads and oil-fog feed type. Explore Norgren pneumatic components and related air preparation products for industrial automation and fluid power applications at EnvMart.
