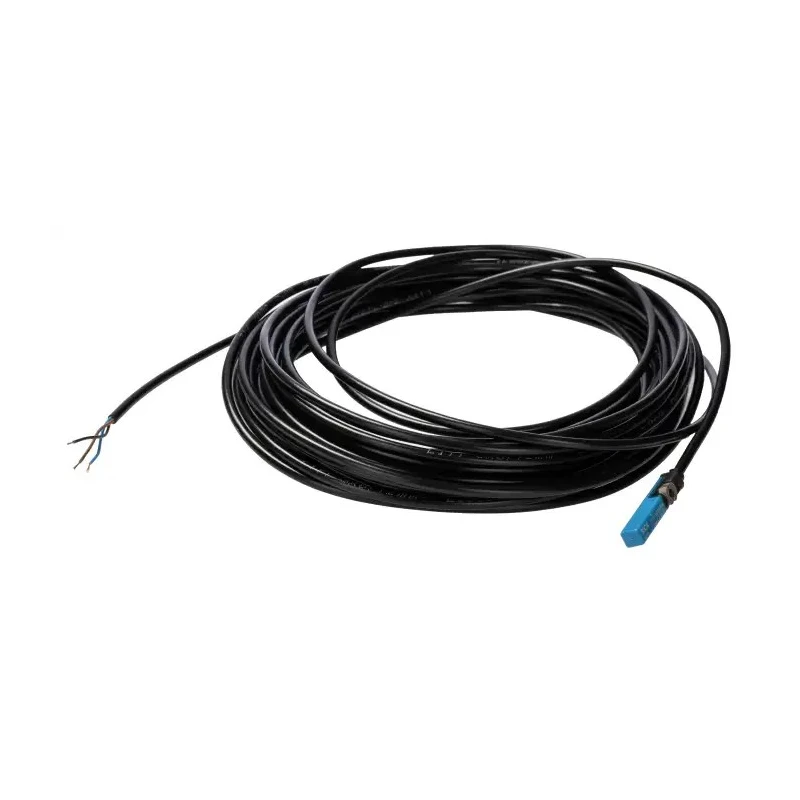

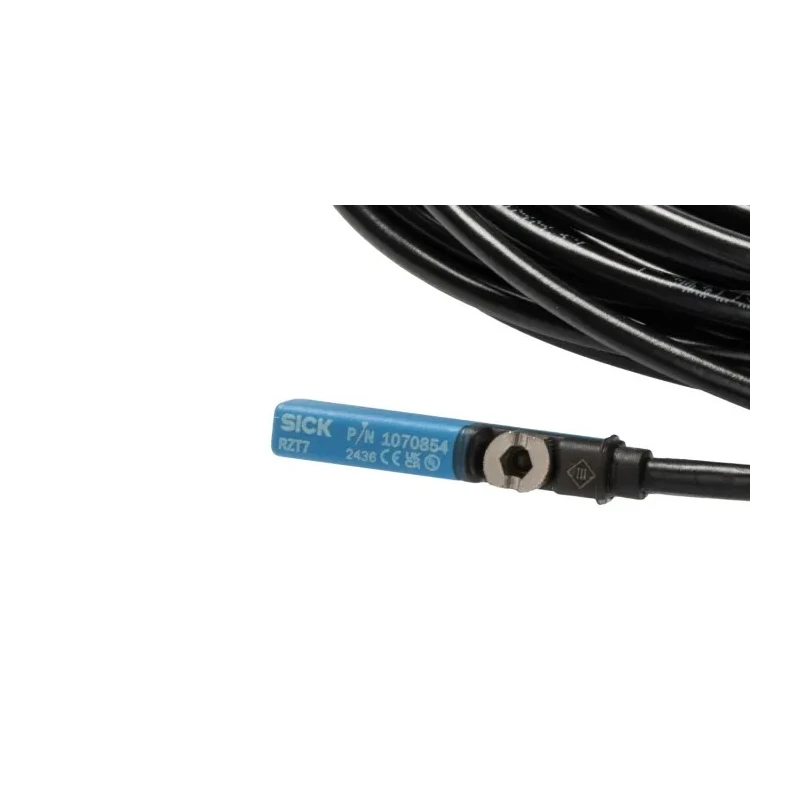

SICK Cable Pneumatic Sensor, T-Slot Construction, Reed Switching, IP65, 30V DC, LED Indicator, RZT7-03ZRS-KWD
Specifications
| Country of Origin | Hungary |
|---|---|
| Voltage | 30V dc |
| Diameter | 2.9mm |
| Brand | SICK |
| Model | RZT7-03ZRS-KWD |
| IP Rating | IP65 |
| Housing Material | Plastic |
| Construction | T-Slot |
| Series | RZT7 |
| Maximum Operating Temperature | 70°C |
| Enclosure Rating | IP 67 |
| Measurement Principle | Magnetic Cylindrical Sensor |
| Minimum Operating Temperature | -30°C |
| For Use With | T-Slot |
| Standards/Approvals | EN 60947-5-2, EN 60529 |
| Electrical Connection Type | Cable |
| Switching Action | Reed Switching |
| A sensor for a wide range of applications | The sensor design fits into all standard T-slots used around the world, regardless of the cylinder profile or make |
| Simple mounting | Thanks to the retaining ribs on the side, the sensor holds its position even before the screw is tightened, ensuring that it does not fall out |
| Fast mounting | The sensor is fixed quickly and securely in the slot simply by rotating the fixing screw a quarter turn |
Key Features
- Designed for universal use in standard T-slots across various cylinder profiles.
- Compact 2.9 mm diameter plastic housing with durable construction.
- Features reed switching output and an LED status indicator for easy monitoring.
- Rated IP65 for environmental protection and operates within temperature range of -30°C to 70°C.
- Simple and fast mounting via combined fixing screw, enabling secure and vibration-resistant installation.
- Use with pneumatic cylinders, linear slides, grippers, and with adapters on round rod and profile cylinders.

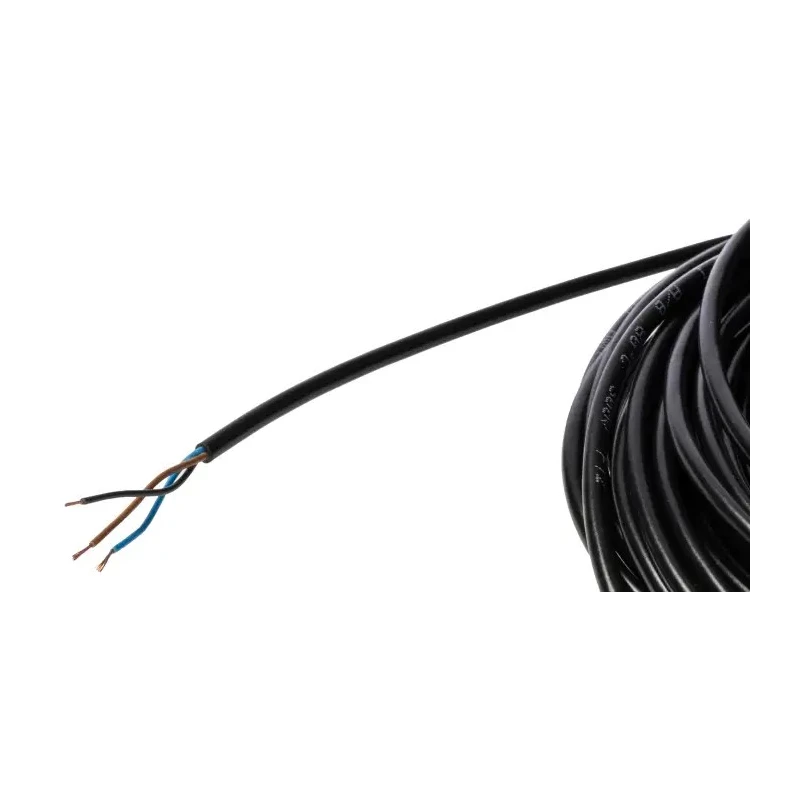

- Electrical connection through cable ensures reliable signal transmission.
- Compliance with EN 60947-5-2 and EN 60529 standards ensures quality and safety.
Product Description
The SICK RZT7-03ZRS-KWD cable pneumatic sensor is a high-quality magnetic cylindrical sensor designed for precise piston position detection in pneumatic drives.
Specially engineered to fit all standard T-slot cylinders worldwide, this sensor guarantees wide compatibility regardless of cylinder make or profile. The rugged plastic housing with a compact 2.9 mm diameter ensures ease of integration without compromising durability.
This sensor operates at 30V DC and employs reed switching with a Normally Open (NO) output function, providing reliable switching performance. An integrated LED indicator conveniently displays the output state, facilitating immediate status checks.
Its IP65 rating offers protection against dust and water jets, making it suitable for various industrial environments. The sensor functions effectively within a temperature range from -30°C up to 70°C, accommodating demanding operational conditions.
Installation is streamlined with drop-in mounting from above and a combined fixing screw allowing a quarter-turn fastening. Retaining ribs hold the sensor in position before tightening, ensuring ease and security during assembly. The fixing screw maintains firm placement even under vibration or shock, and the sensor can be replaced without removing cylinder end caps during servicing.
Universal compatibility with standard T-slot pneumatic cylinders and adapters for diverse cylinder types. Robust plastic housing with compact 2.9 mm diameter for versatile applications. Reliable reed switch output combined with an LED indicator for output state visualization.
Environmental protection rated IP65 and broad operating temperature range (-30°C to 70°C). Fast, secure mounting via combined fixing screw and retaining ribs for positional stability. Electrical connection through cable suitable for industrial automation systems.
Conforms to EN 60947-5-2 and EN 60529 standards to ensure safety and operational integrity. Applications include packaging machines, assembly technology, woodworking machines, electronics production, textile machinery, and specialized machine construction.
Explore the Pneumatic Cylinder Sensors category on EnvMart for more industrial sensing solutions from SICK and other trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates at a voltage of 30V DC.
It functions effectively within a temperature range of -30°C to 70°C.
This model employs reed switching with a Normally Open (NO) output function.
The sensor has an IP65 rating, providing protection against dust and water jets.
It features a simple mounting process with a combined fixing screw that allows for quick and secure installation via a quarter-turn fastening.
The sensor has a compact diameter of 2.9 mm.
It is designed for universal use with standard T-slot pneumatic cylinders and can be adapted for use with round rod and profile cylinders.
The housing is made of plastic, ensuring a lightweight and durable design.
It conforms to EN 60947-5-2 and EN 60529 standards, ensuring safety and operational integrity.
Yes, it features an integrated LED indicator that displays the output state for easy monitoring.
This sensor is constructed specifically for T-slot applications, making it versatile for various cylinder profiles.
The sensor is manufactured in Hungary.
