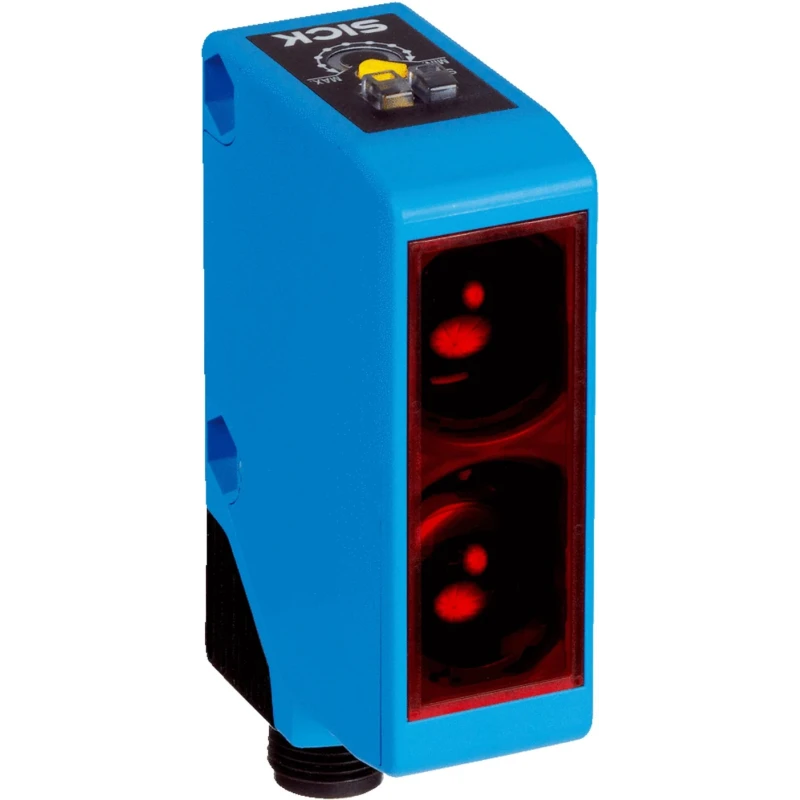

SICK Background Suppression Photoelectric Sensor Block Sensor 100 mm to 300 mm Detection Range NPN Output IP67 WTB250-2N2431
Specifications
| Country of Origin | China |
|---|---|
| Brand | SICK |
| Response time | 3ms |
| Light Source | Red Light |
| Detection range | 100 mm → 300 mm |
| Model | WTB250-2N2431 |
| IP Rating | IP67 |
| Mount Type | Bracket |
| Housing Material | Plastic |
| Output type | NPN |
| Series | W250-2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| Terminal type | 4-Pin Connector |
| Interface Type | M12 Connector, 4-Pin |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | CE Certified, UL Certified |
| Materials Detected | Object with 90% Reflectance |
| Sensor Style | Block |
Key Features
- The sensor features a block sensor style with NPN output for industrial automation integration.
- Equipped with a red light source for precise background suppression.
- Supports light/dark switching via control cable for versatile operation.
- Robust plastic housing with IP67 rating ensures protection against dust and water ingress.
- Operating temperature range from -25°C to 55°C for varied environments.
- Includes a stainless steel BEF-W250 mounting bracket for easy installation.
- Rotatable M12 4-pin connector or cable variants provide installation flexibility.
- Fast response time of 3 ms enables rapid detection tasks.
Product Description
SICK WTB250-2N2431 Background Suppression Photoelectric Sensor is a high-performance block sensor designed for reliable object detection within a sensing range of 100 mm to 300 mm. It features a robust plastic housing rated at IP67, making it well-suited for harsh industrial environments where protection against dust and moisture is essential.
The sensor emits a visible red light source, facilitating simple alignment and precise background suppression. It supports flexible light/dark switching via a control cable, reducing the number of device variants and optimizing inventory management. Fast response times of 3 ms enhance automation process efficiency.
The WTB250-2N2431 includes a BEF-W250 mounting bracket made of stainless steel, simplifying installation processes. The housing design integrates variants that support both DC and AC/DC power supplies, optimized for 10 to 30 V DC and 24 to 240 V AC/DC supply voltages. Connection is facilitated through either a rotatable M12 4-pin connector or cable, granting flexibility in system integration.
This sensor outputs NPN type signals and can handle maximum DC voltages up to 30 V with a maximum current of 100 mA. It maintains performance standards conforming to CE and UL certifications, with hazardous area certification EN IEC 63000. The device operates reliably across a temperature range from -25°C to 55°C.
Ideal for applications in industrial automation, manufacturing processes, and control gear systems where precise background suppression and rapid object detection are critical. Its sturdy plastic construction and IP67 ingress protection ensure durability in demanding operational contexts.
The sensor features a block sensor style with NPN output for industrial automation integration. Equipped with a red light source for precise background suppression. Supports light/dark switching via control cable for versatile operation.
Robust plastic housing with IP67 rating ensures protection against dust and water ingress. Operating temperature range from -25°C to 55°C for varied environments. Includes a stainless steel BEF-W250 mounting bracket for easy installation.
Rotatable M12 4-pin connector or cable variants provide installation flexibility. Fast response time of 3 ms enables rapid detection tasks. Suitable for industrial, automation, manufacturing, and control gear applications.
Explore the comprehensive range of Photoelectric Sensors and automation control gear on EnvMart to enhance your industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is from 100 mm to 300 mm.
It provides an NPN output type signal.
The maximum current it can handle is 100 mA.
It operates reliably within a temperature range of -25°C to 55°C.
The sensor has an IP67 rating, ensuring protection against dust and water ingress.
The response time of this sensor is 3 ms, enabling rapid detection tasks.
It uses a visible red light source for precise background suppression.
It includes a stainless steel BEF-W250 mounting bracket for easy installation.
It features a rotatable M12 4-pin connector for flexible installation.
The sensor is certified under EN IEC 63000 for hazardous areas.
It is designed to detect objects with 90% reflectance.
It conforms to CE and UL certifications, ensuring compliance with safety standards.
