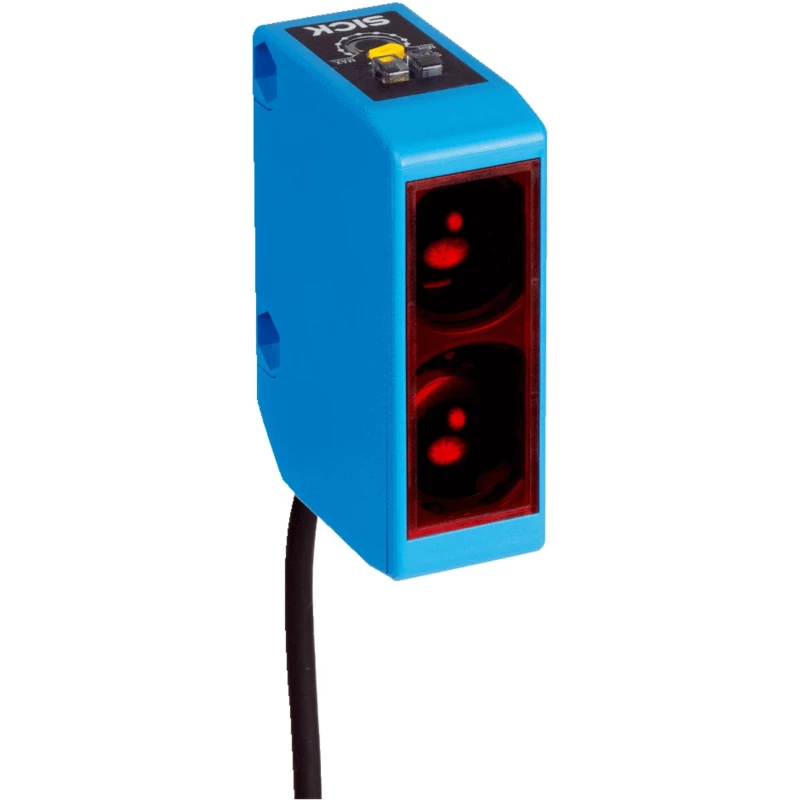

SICK Background Suppression Photoelectric Sensor Block Sensor 150 mm to 500 mm NPN IP67 WTB250-2N1141
Specifications
| Country of Origin | China |
|---|---|
| Brand | SICK |
| Response time | 3ms |
| Light Source | Red Light |
| Detection range | 150 mm → 500 mm |
| Model | WTB250-2N1141 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Housing Material | Plastic |
| Output type | NPN |
| Series | W250-2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| Terminal type | 4-Wire |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | CE Certified, UL Certified |
| Sensor Style | Block |
Key Features
- Easily visible red BrightLight LED simplifies sensor alignment.
- Potentiometer with positioning indicator allows precise sensitivity adjustment.
- Light/dark switching via control cable reduces device variants.
- Rotatable male connector or cable variants enhance installation flexibility.
- Includes stainless steel BEF-W250 mounting bracket for easy installation.
- Compact design integrates DC and AC/DC types in one housing.
- Operational temperature range from -25°C to 55°C suitable for various environments.
- IP67 protection ensures dust and water resistance.
Product Description
SICK WTB250-2N1141 Background Suppression Photoelectric Sensor is a block sensor with a detection range of 150 mm to 500 mm, featuring NPN output and an IP67 rated robust plastic housing. It operates with a maximum DC voltage of 30V and supports a maximum current of 100mA, making it ideal for demanding industrial and automation applications.
The sensor stands out with its easily visible BrightLight red LED, facilitating quick and precise alignment during installation. A potentiometer equipped with a positioning indicator allows users to finely adjust sensing range and sensitivity to optimize background suppression. Light/dark switching functionality is selectable via a control cable, streamlining inventory and device management by reducing the number of variants required.
The WTB250-2N1141 is offered with either a cable or a rotatable M12 connector, providing versatile installation options in complex industrial environments. Included with the sensor is the BEF-W250 mounting bracket made of stainless steel (1.4301), ensuring secure and durable mounting capabilities. The compact housing integrates both DC and AC/DC voltage types, enhancing system flexibility.
Designed to operate reliably in harsh conditions, the sensor supports an operating temperature range from -25°C to 55°C and carries CE and UL certifications, conforming to EN IEC 63000 hazardous area standards. The robust IP67 rating protects against dust and water ingress, making it suitable for automated manufacturing, conveyor systems, packaging machinery, and other industrial control applications.
Easily visible red BrightLight LED for simplified alignment. Potentiometer with positioning indicator enables precise sensitivity and range adjustment. Light/dark switching reduces device variants via control cable. Rotatable male connector or cable options provide installation flexibility.
Includes stainless steel BEF-W250 mounting bracket for easier installation. Compact integration of DC and AC/DC types in one housing. Wide operating temperature range from -25°C to 55°C. IP67 protection for dust and water resistance.
CE and UL certifications ensure compliance with industry standards.
This Photoelectric Sensor is ideal for industrial automation, manufacturing lines, material handling, and process control where reliable background suppression and precise object detection are critical. Its robust construction and versatile installation features make it a dependable component for advanced sensor systems.
Explore a wide range of sensors and automation solutions in this category at EnvMart for enhancing system efficiency and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of the WTB250-2N1141 sensor is from 150 mm to 500 mm.
This model features an NPN output type.
The maximum operating temperature for this sensor is 55°C.
The WTB250-2N1141 has an IP67 rating, ensuring protection against dust and water ingress.
The response time of this sensor is 3 milliseconds.
The sensor operates at a maximum DC voltage of 30V.
The housing of this sensor is made of plastic.
The sensor includes a screw mount type for installation.
The minimum operating temperature is -25°C, and the maximum is 55°C.
This sensor is CE Certified and UL Certified, conforming to EN IEC 63000 hazardous area standards.
The sensor uses a red light source for detection.
The maximum current supported by this sensor is 100 mA.
