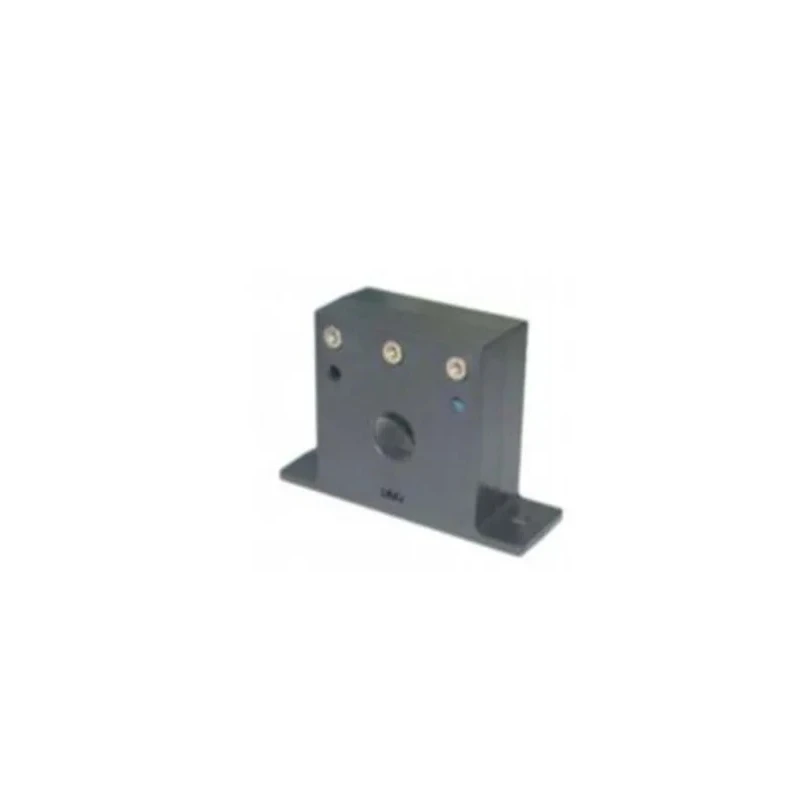

RS PRO Solid Core Current Transducer 200 A 13.8mm Bore 24 V DC Supply 5-60 Hz Frequency Bandwidth 210-0636

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Solid Core Current Transducer 200 A 13.8mm Bore 24 V DC Supply 5-60 Hz Frequency Bandwidth 210-0636

Name: RS PRO Solid Core Current Transducer 200 A 13.8mm Bore 24 V DC Supply 5-60 Hz Frequency Bandwidth 210-0636
Brand: RS PRO
SKU: 167706
Price: 207.6 USD
Availability: InStock



Category Automation & Control Gear Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Operating Temperature	-25 °C ∼+ 65 °C
Storage Temperature	-25 °C ∼+ 65 °C
Length	55.4mm
Model	210-0636
Depth	27mm
Gross Weight	123g
Width	83.8mm
Mount Type	Base
Series	RS PRO
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-25°C
Bore Diameter	13.8mm
Terminal type	Screw
Supply Voltage	24 V DC
Standards/Approvals	UL 94, RS, CE
Primary Current	200A
Minimum Operating Frequency	5Hz
Maximum Operating Frequency	60Hz
Primary DC Resistance	250Ω
Frequency bandwidth	5-60 Hz

Key Features

Operates with primary current rating of 200 A and a bore diameter of 13.8 mm.
Features a frequency bandwidth of 5 to 60 Hz suitable for AC sinusoidal measurement.
Constructed with an insulated plastic case complying with UL 94-V0 standard for safety.
Operates reliably within a temperature range of -25 °C to +65 °C with humidity tolerance below 85% RH without condensation.
Includes a screw terminal type and base mount for panel installation.

Product Description

RS PRO 210-0636 is a solid core current transducer designed for the electronic measurement of AC sinusoidal waveforms with galvanic isolation between the primary and secondary circuits. It ensures precise current output for remote monitoring and automation control systems with a primary current of 200 A and bore diameter of 13.8 mm. The device operates with a 24 V DC supply voltage, supporting frequency bandwidth from 5 Hz up to 60 Hz.

Constructed for panel mounting, this transducer features a compact and insulated plastic housing compliant with UL 94 V-0 flammability standards, ensuring safe industrial usage. It provides a reliable screw terminal connection and base mount for secure installation.

The transducer is capable of operating across a temperature range of -25 °C to +65 °C and tolerates operating humidity below 85% RH without condensation. Its robust design supports various industrial, laboratory, and automation applications requiring precise current measurement and isolation.

With dimensions of 83.8 mm in width, 55.4 mm in length, and 27 mm in depth, and a weight of 123 grams, it is a compact solution ideal for panel integration. This product supports frequency bandwidths suitable for AC sinusoidal currents, providing accurate and stable signal conversion.

Primary current rated at 200 A for robust AC current measurement. Frequency bandwidth between 5 Hz and 60 Hz for versatile application scenarios. Insulated plastic case meeting UL 94-V0 safety standards. Compact panel mounting design with screw terminal connection.

Wide operating temperature and humidity tolerance for industrial environments.

This current transducer is well-suited for use in industrial automation, process control, HVAC monitoring, laboratory instrumentation, and electrical installations requiring safe and accurate current monitoring.
