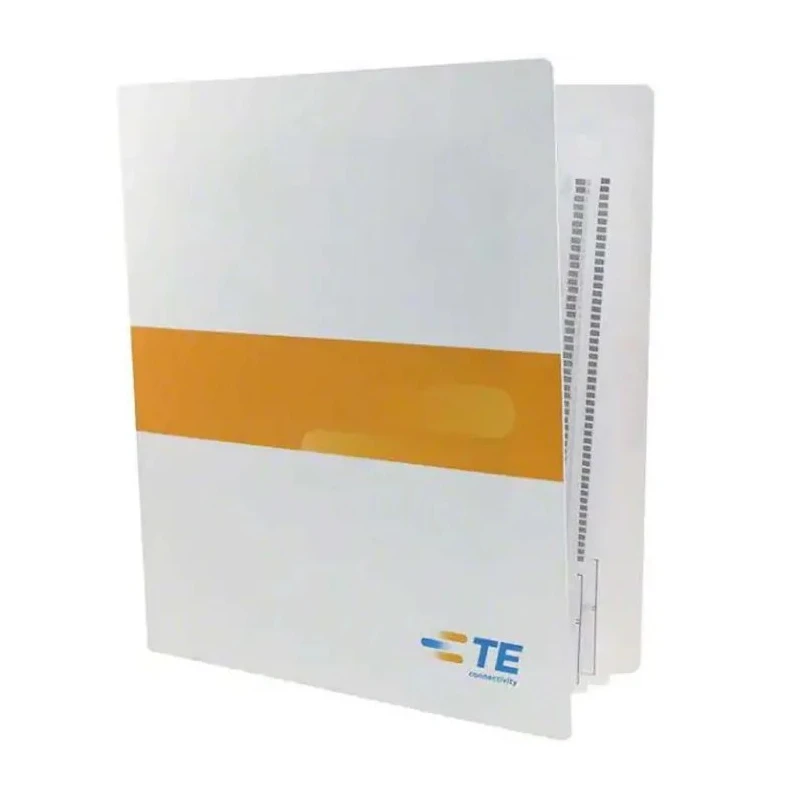

TE Connectivity Thick Film Surface Mount Resistor Kit 121 Values 10 Ω to 1 MΩ 0.2W CRGH0603F-LAB-KIT

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Thick Film Surface Mount Resistor Kit 121 Values 10 Ω to 1 MΩ 0.2W CRGH0603F-LAB-KIT

Name: TE Connectivity Thick Film Surface Mount Resistor Kit 121 Values 10 Ω to 1 MΩ 0.2W CRGH0603F-LAB-KIT
Brand: TE Connectivity
SKU: 166172
Price: 612.13 USD
Availability: InStock



Category Resistor Kits Brand TE Connectivity Condition New

Specifications

Country of Origin	Thailand
Resistance Range	10 Ω → 1 MΩ
Brand	TE Connectivity
Model	CRGH0603F-LAB-KIT
Technology	Thick Film
Mount Type	Surface
Series	CRGH
Resistance Tolerance	1 %
Kit Type	Thick Film Resistor Kit
Standards/Approvals	REACH SVHC
Number of Values	121
Number of Pieces per Value	100
Maximum Power Rating	0.2W

Key Features

Includes 121 resistor values for versatile circuit design.
Surface mount technology suitable for automated assembly.
Thick film resistors provide high power-to-size ratio.
Resistance tolerance is tightly controlled at 1% for precision.
Maximum power rating of 0.2W per resistor.
Each resistor is laser trimmed for accuracy.
Terminal finish is electroplated matte tin over nickel barrier.
Kit contains 100 pieces per value, totaling 12,100 resistors.

Product Description

TE Connectivity CRGH0603F-LAB-KIT is a thick film surface mount resistor kit designed for industrial and general purpose electronic applications. This kit contains 121 resistor values ranging from 10 ohms to 1 megaohm, each with a 1% resistance tolerance and a maximum power rating of 0.2W per resistor. The resistors are manufactured using a screen printed and fired thick film resistive element, then laser trimmed to precise tolerances.

The resistors feature a matte tin over nickel electroplated termination finish, providing reliable solderability and long-term stability. Each kit includes 100 pieces per resistor value, making this an extensive inventory suitable for prototyping, lab testing, and volume production use.

This resistor kit is ideal for surface mount applications requiring high power density in a compact 0603 package size. Users benefit from the high power-to-size ratio and consistent performance under industrial conditions. The kit complies with REACH SVHC regulations, ensuring safety and reduced hazardous substances in manufacturing.

Applications for this thick film resistor kit include electronic circuit design, product development, laboratory experimentation, and manufacturing testing. The broad range of values from 10 Ω to 1 MΩ provides flexibility for voltage dividing, current limiting, and filtering circuits.

Includes 121 resistor values from 10 Ω up to 1 MΩ for diverse use cases. Thick film technology ensures consistent resistance and power handling. Surface mount design supports modern PCB assembly processes. Laser trimmed resistors deliver precision and reliability.

Termination electroplated with matte tin over nickel for solderability. 100 pieces per value allow large-scale or prototype builds. Conforms to REACH SVHC standards for environmental compliance. Manufactured in Thailand, guaranteeing quality production standards.
