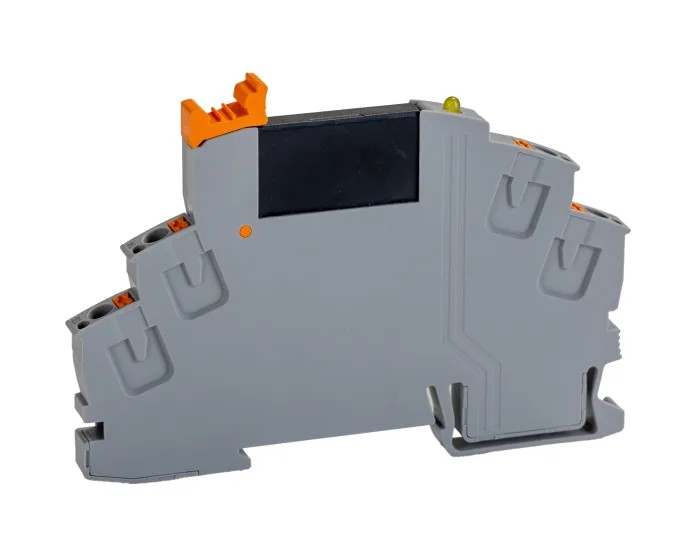

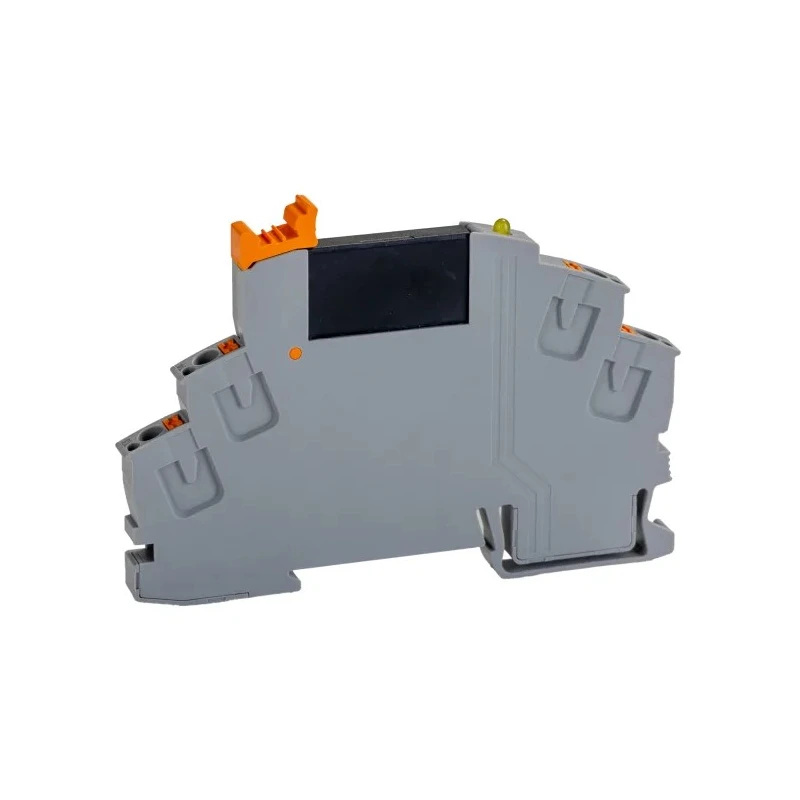

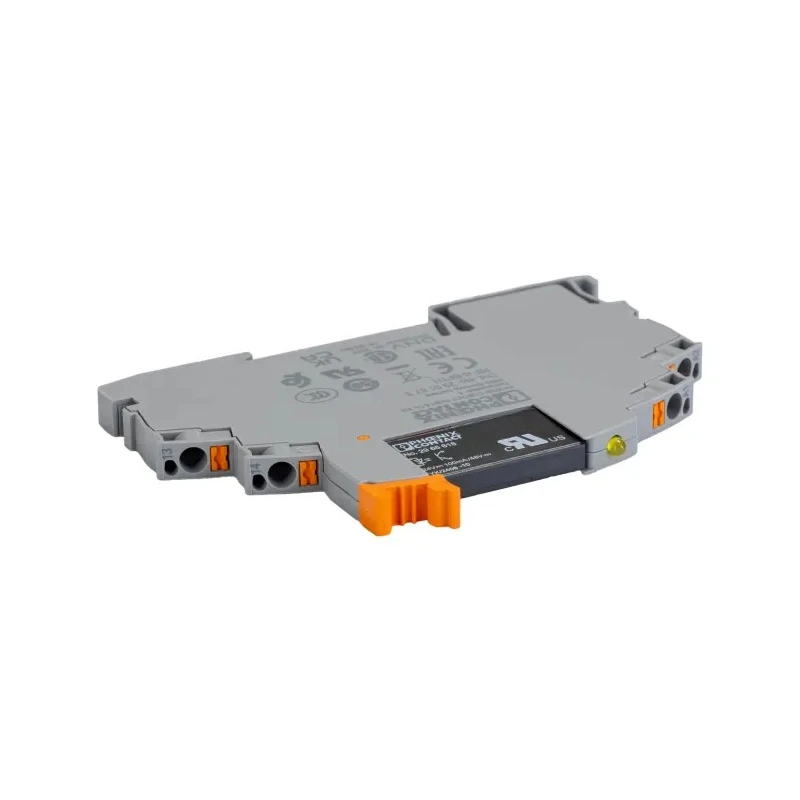

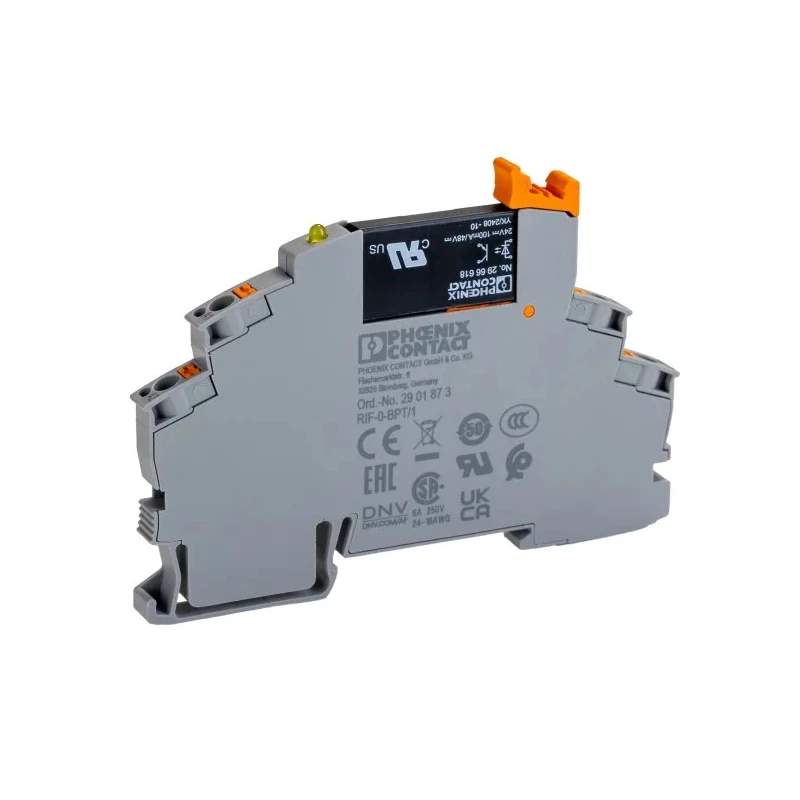

Phoenix Contact Solid State Interface Relay RIF-0-OPT-24DC/48DC/100 Series, 100 mA Load, DIN Rail Mount, 28.8V dc 2905294
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Phoenix Contact |
| Length | 93mm |
| Model | 2905294 |
| Width | 6.2mm |
| Mount Type | DIN Rail |
| Output type | RIF |
| Series | RIF-0-OPT-24DC/48DC/100 |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Push-in |
| Maximum Load Current | 100mA |
| Standards/Approvals | RoHS |
| Maximum Control Voltage | 28.8V dc |
Key Features
- Supports a maximum load current of 100 mA.
- Operates over a control voltage range from 19.2 V dc to 28.8 V dc.
- Designed for DIN rail mounting with compact dimensions of 93 mm length and 6.2 mm width.
- Single pole, single throw (SPST) contact configuration for straightforward applications.
- Push-in terminal connection enables easy installation and maintenance.
- Operates reliably in temperatures ranging from -25°C to +60°C.
- Equipped with a yellow LED status indicator for operational monitoring.
- Fast switching time of approximately 20 microseconds ensures responsive performance.
Product Description
Phoenix Contact 2905294 Solid State Interface Relay RIF-0-OPT-24DC/48DC/100 Series is designed for precise and efficient switching in industrial automation environments. It operates with a maximum load current of 100 mA and supports a control voltage range of 19.2 to 28.8 V dc, allowing for flexible applications across control systems requiring low voltage switching.
This relay features a single pole, single throw (SPST) contact configuration and a push-in terminal connection method that ensures easy and reliable installation on DIN rails. Its compact form factor, measuring 93 mm in length and 6.2 mm in width, facilitates integration in constrained panel spaces.
The device operates effectively within a wide temperature range from -25°C to 60°C, offering durability for demanding industrial conditions. It includes a yellow LED status display that provides clear operational feedback, enhancing maintenance and troubleshooting processes.
The relay's fast switching speed of approximately 20 microseconds supports responsive automation tasks, making it suitable for interfacing with PLCs and other control devices. Compliant with RoHS directives, this relay aligns with environmental and safety standards and is manufactured in Hungary.
Ideal applications include control systems within automation, electrical circuit switching, and precise mechanical and electrical operations. This Solid State Interface Relay ensures dependable performance for industrial, manufacturing, and commercial use cases.
Supports a maximum load current of 100 mA. Control voltage range from 19.2 V dc to 28.8 V dc. Compact DIN rail mount design, 93 mm by 6.2 mm dimensions. SPST contact configuration for simple switching tasks. Push-in terminal connections for quick installation.
Operational temperature range: -25°C to +60°C. Yellow LED status indicator for monitoring. Fast switching time circa 20 μs. Meets RoHS environmental standards. Manufactured in Hungary. Explore more solid state relays and interface devices at EnvMart for reliable industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this relay is 100 mA.
It supports a control voltage range from 19.2 V dc to 28.8 V dc.
This relay has compact dimensions of 93 mm in length and 6.2 mm in width.
It is designed for DIN rail mounting, making it suitable for various panel installations.
The relay features a single pole, single throw (SPST) contact configuration.
It operates effectively within a temperature range of -25°C to +60°C.
The relay has a fast switching time of approximately 20 microseconds.
It uses a push-in terminal connection method for easy installation and maintenance.
Yes, it complies with RoHS environmental standards.
This relay is manufactured in Hungary.
It is ideal for control systems within automation, electrical circuit switching, and precise mechanical and electrical operations.
The output type of this relay is RIF, suitable for various industrial automation tasks.
