Bosch Rexroth Multi-Angle Connecting Component, Strut Profile 40 mm, Groove Size 10 mm, Aluminium 3842538685

Bosch Rexroth 3842538685 Multi-Angle Connecting Component is specifically engineered for 40 mm strut profiles with a compatible 10 mm groove size, making it suitable for various structural system assemblies within industrial and mechanical applications.

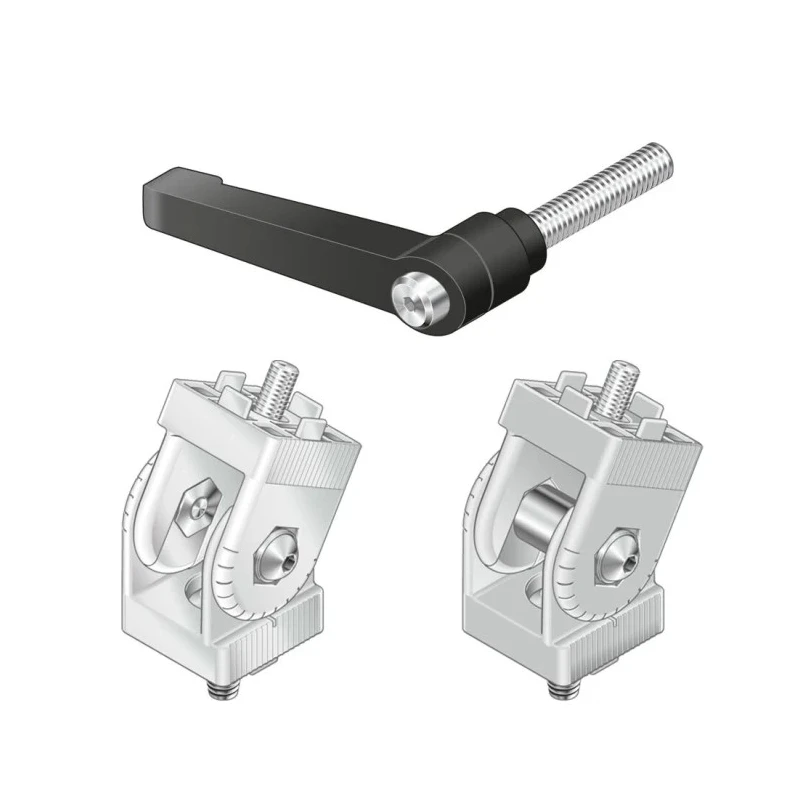

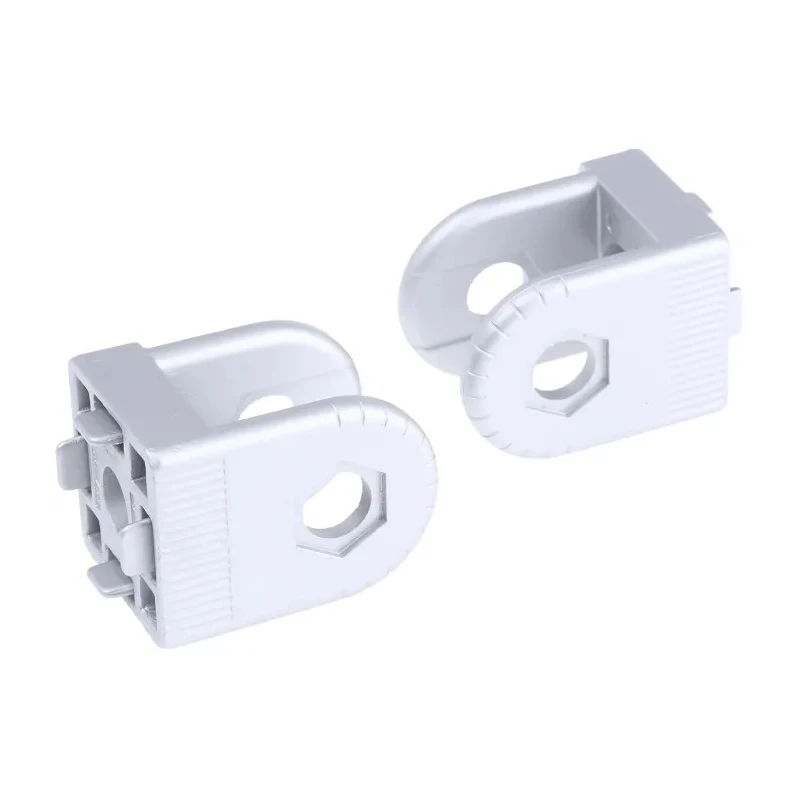

Crafted from die-cast aluminium, this connector balances robustness with lightweight design, efficiently supporting forces up to 15000 Newtons. It offers a multi-angle joint functionality allowing joint connections at any angle within a 180° range. The component can be clamped rigidly or set to move freely, providing exceptional versatility.

The joint includes 15° graduation markings to ensure precise angular positioning during installation. The designLINE finish not only provides a visually appealing silver coating but also guards against scratches, enhancing durability. Additionally, built-in ESD protection reduces the risk of electrostatic discharge, making it suitable for sensitive environments.

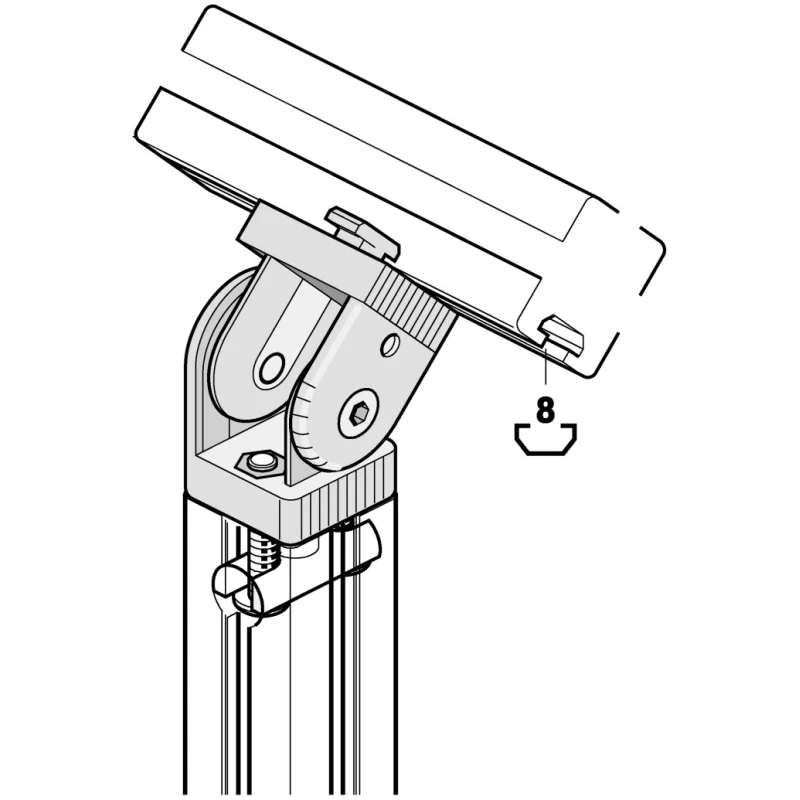

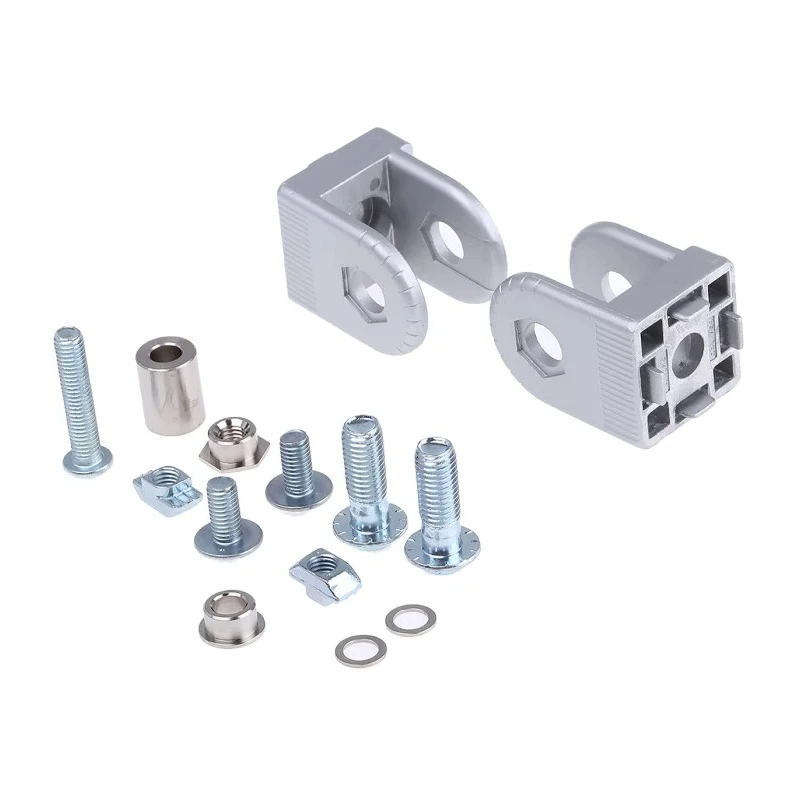

This connecting component is compatible with M8 threaded fasteners and designed for use with 40 mm wide by 40 mm high strut profiles, allowing easy integration into modular structural frameworks like adjustable work tables, warehouse shelving, and protective enclosures.

The product belongs to the MGE product system and the designLINE series, RoHS exempt certified. It facilitates both rigid and movable joint connections for profiles sized 30x30, 40x40, or 45x45 mm, specifically engineered to optimize assembly flexibility and structural integrity.

Enables rigid or movable joint connections within a 180° adjustable angle range. Constructed from robust yet lightweight die-cast aluminium for strength and durability. Supports forces up to 15000N, ideal for demanding industrial applications.

Features designLINE paint for protection and an appealing finish that prevents scratches. Includes ESD protection to minimize risks of static discharge in sensitive environments. Compatible with M8 thread size for secure fastening.

Suitable for warehouse racking systems, adjustable work tables, and protective enclosures. Markings at 15° increments provide precise angle adjustments.

This connecting component is a vital part of structural industrial systems that demand both precision and reliability. Explore the Bosch Rexroth range for additional modular components designed for efficient assembly and long-term performance.
