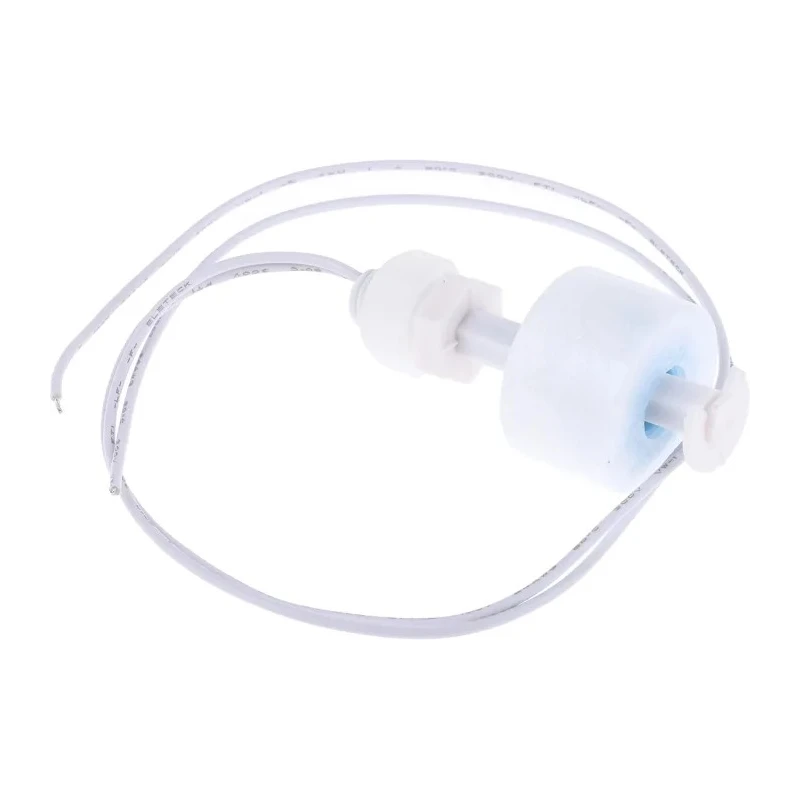

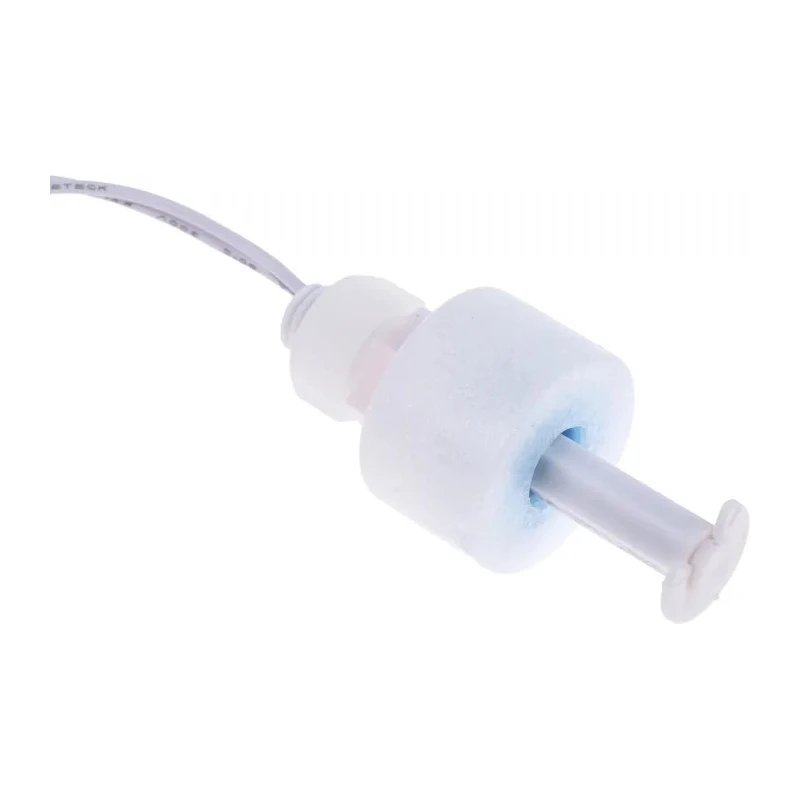

RS PRO Vertical Silicone Float Switch, 300 mm Cable, Direct Load, 140 V AC Max, 200 V DC Max, 1.2 A, Polypropylene 519-236

RS PRO 519-236 Vertical Silicone Float Switch features a polypropylene housing and delivers reliable liquid level sensing suitable for industrial, commercial, and laboratory applications. With a 300 mm cable outfitted with UL certified leads, it supports direct load switching under a maximum AC voltage of 140 V and DC voltage of 200 V. This float switch can handle currents up to 1.2 amperes and sustain pressures up to 1 bar, providing versatility across various liquid monitoring systems.

Its vertical mounting capability allows either top or bottom installation in tanks, with the operating function reversed when mounted stem up, making it adaptable for specialized control environments such as water dispensers, vending machines, coffee machines, and printing machines. The silicone gasket ensures reliable sealing, contributing to its IP67 protection rating, safeguarding the device from dust and water ingress.

The operating temperature range from -20°C to 80°C supports a broad spectrum of applications including industrial automation, water treatment, food and beverage processing, and HVAC systems. The FDA certification further ensures suitability for hygienic and food-contact settings. This miniature float switch delivers precise and consistent operation, making it an essential component for liquid level detection and control.

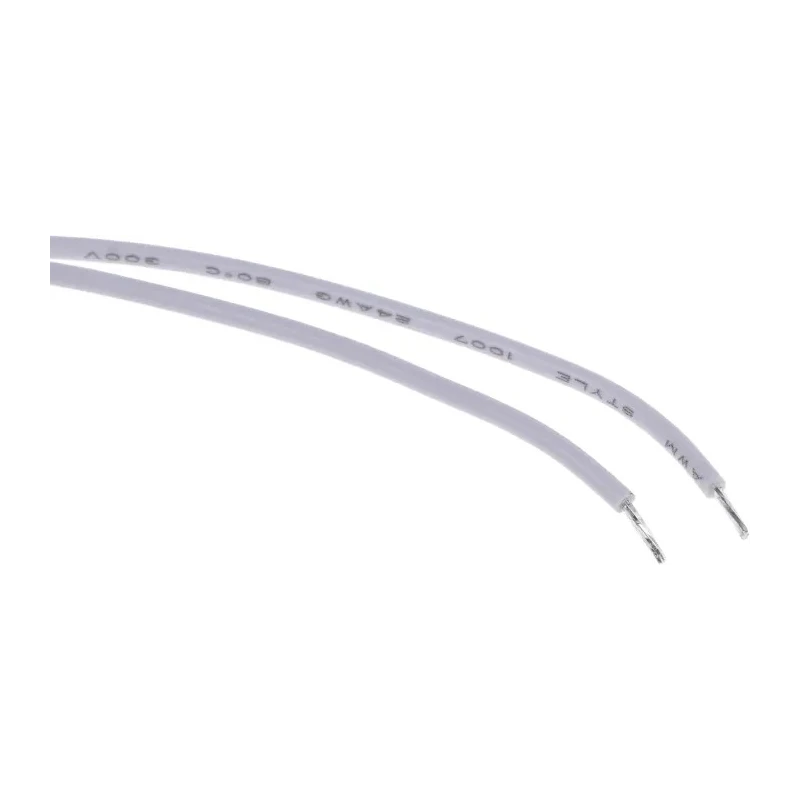

The switch features a durable polypropylene housing suitable for various industrial environments. Equipped with a 300 mm UL 1007 AWG 24 cable for reliable electrical connections. Operates effectively in temperatures ranging from -20°C to +80°C.

Offers a maximum current rating of 1.2 A and a maximum pressure tolerance of 1 bar. Complies with FDA standards, making it safe for use in food-contact applications. Its vertical mount design allows flexible top or bottom tank installation with reversed operation when stem up.

Gasket material is silicone, providing effective sealing and durability. The float switch is IP67 rated for dust and water ingress protection.

This product is ideal for use in industrial automation, laboratory instrumentation, construction machinery, water treatment plants, HVAC systems, agricultural equipment, and commercial liquid level monitoring applications. The precise operation combined with its rugged build quality ensures dependable performance in demanding environments. Browse EnvMart’s extensive range of RS PRO sensors and Float Switches for reliable automation components.
