RS PRO Vertical Silicone Float Switch 300 mm Cable Direct Load 250 V AC Max Model 519-232

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Vertical Silicone Float Switch 300 mm Cable Direct Load 250 V AC Max Model 519-232

Name: RS PRO Vertical Silicone Float Switch 300 mm Cable Direct Load 250 V AC Max Model 519-232
Brand: RS PRO
SKU: 165047
Price: 11.74 USD
Availability: InStock



Category Float Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	519-232
Cable Length	300mm
Mount Type	Vertical
Housing Material	Polypropylene
Maximum Operating Temperature	80°C
Maximum Pressure	1bar
Switch output	Direct Load
Minimum Operating Temperature	-20°C
Maximum Current	2A
Maximum dc Voltage	200V dc
Standards/Approvals	FDA
Maximum AC Voltage	250V ac
Gasket Material	Silicone

Key Features

Constructed with food-safe polypropylene housing ensuring durability and contamination resistance.
Designed as a vertical float switch with direct load output for versatile mounting options.
Operates effectively between -20°C to +80°C temperature range.
Supports maximum AC voltage of 250 V and DC voltage of 200 V with a maximum current of 2 A.
Equipped with a silicone gasket for reliable sealing and IP67 protection rating.
Comes with a 24 AWG 300 mm UL 1007 cable for easy and secure installation.
Float diameter is 24 mm, total length is 43 mm, providing a compact and efficient form factor.
Ideal for use in water dispensers, vending machines, coffee machines, printing machines, and tank monitoring systems.

Product Description

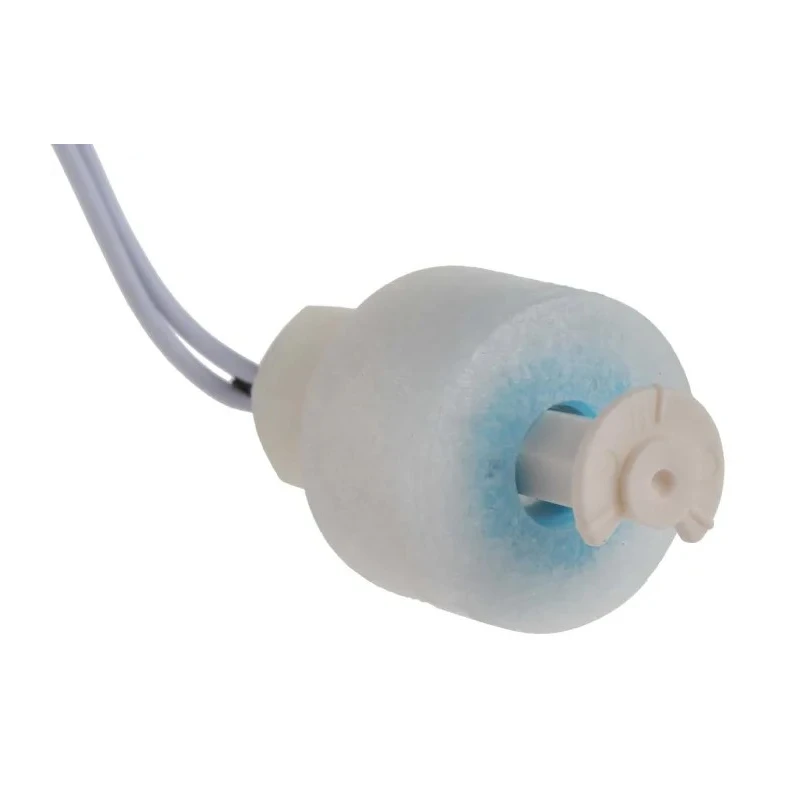

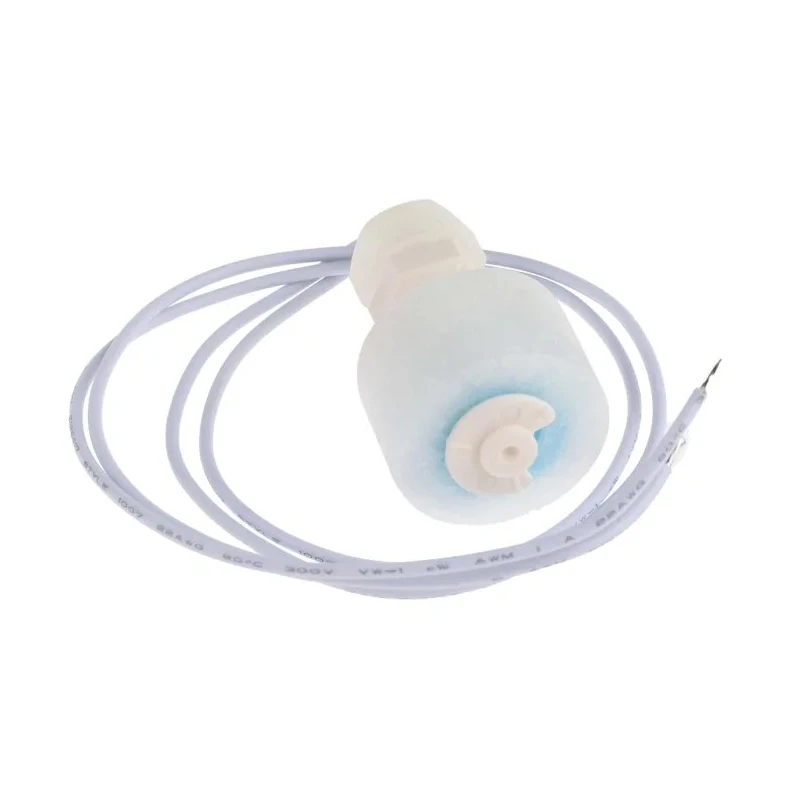

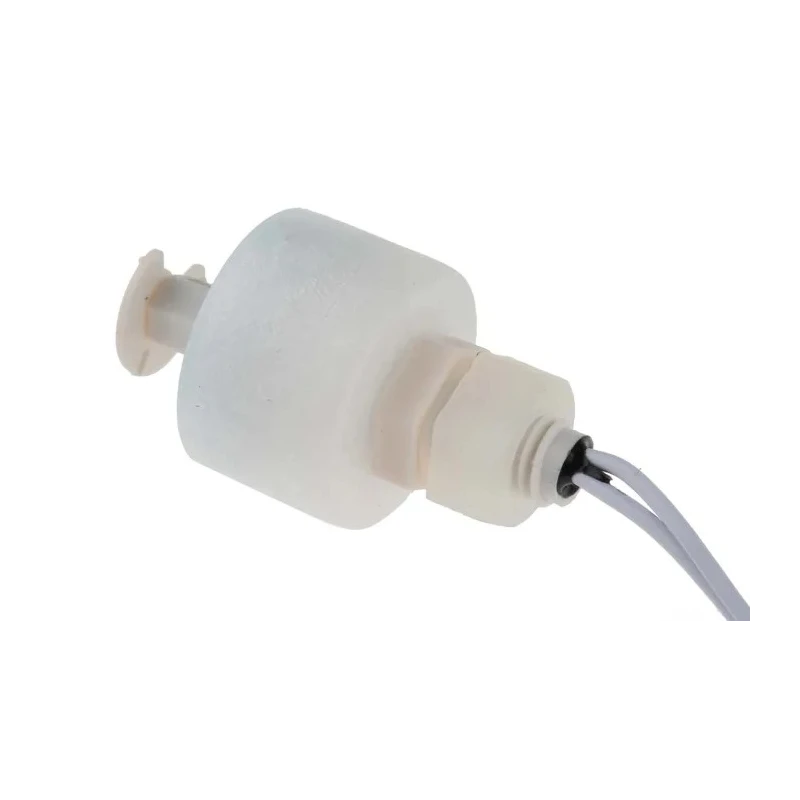

RS PRO 519-232 Vertical Silicone Float Switch is a miniature float switch designed for reliable water level detection and control in industrial and commercial applications. Featuring a hardwearing, food-safe polypropylene housing with an IP67 protection rating, this vertical float switch ensures excellent durability and protection against contamination. The device includes a 300 mm cable and is designed for direct load switching.

The float switch operates within a wide temperature range from -20°C to +80°C, making it suitable for demanding environments. It supports a maximum alternating current voltage of 250 V and a direct current voltage of 200 V with a switching current capacity of 2 A, providing robust electrical performance.

Thanks to its vertical mount type and normally open (N/O) switch configuration, installation is flexible, allowing top or bottom tank placement. The silicone gasket ensures a secure seal to maintain the performance and reliability of the switch over time.

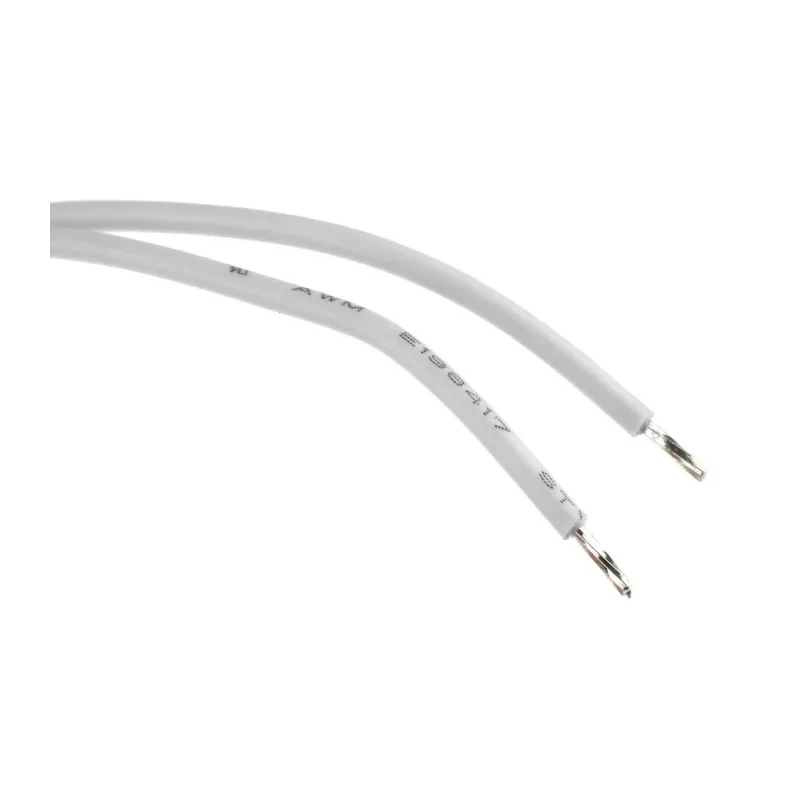

The compact design with a float diameter of 24 mm and total length of 43 mm allows seamless integration into water dispensers, vending machines, coffee machines, printing equipment, and tank monitoring systems. The included 24 AWG, 300 mm UL 1007 lead cable simplifies wiring and setup.

Food-safe polypropylene construction with IP67 rating for contamination protection. Vertical mounting with direct load output and normally open contact. Wide operating temperature range from -20°C to +80°C. Maximum AC voltage 250 V and DC voltage 200 V with 2 A current rating.

Secure silicone gasket sealing for reliable performance. Compact dimensions: 24 mm float diameter and 43 mm total length. Supplied with 300 mm UL 1007 cable (24 AWG) for convenient installation.

This Float Switch is ideal for industrial automation, water treatment, HVAC control, manufacturing equipment, laboratory instrumentation, and commercial applications where precise level sensing is required.
