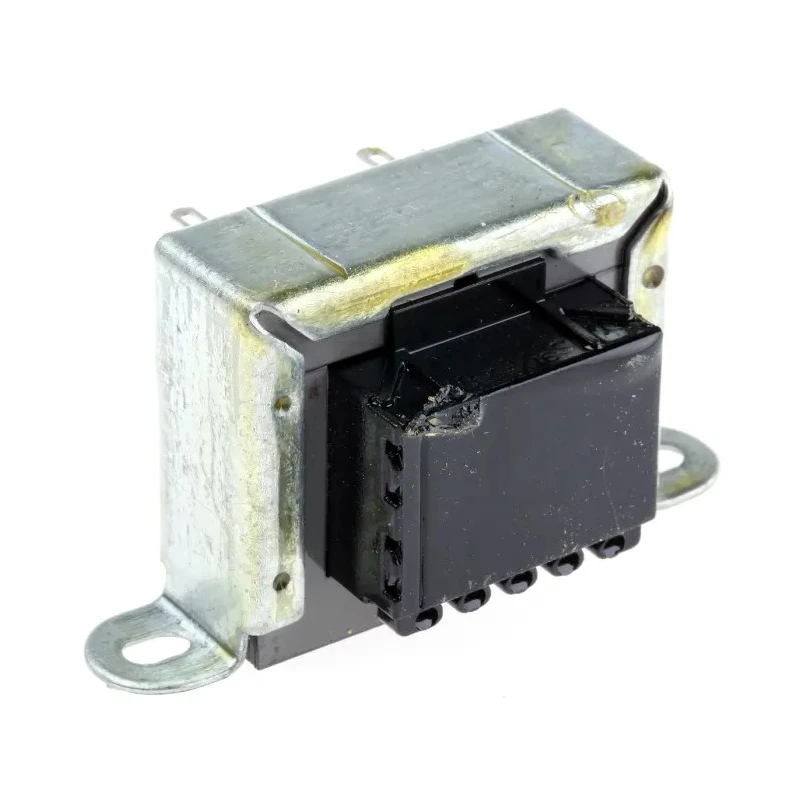

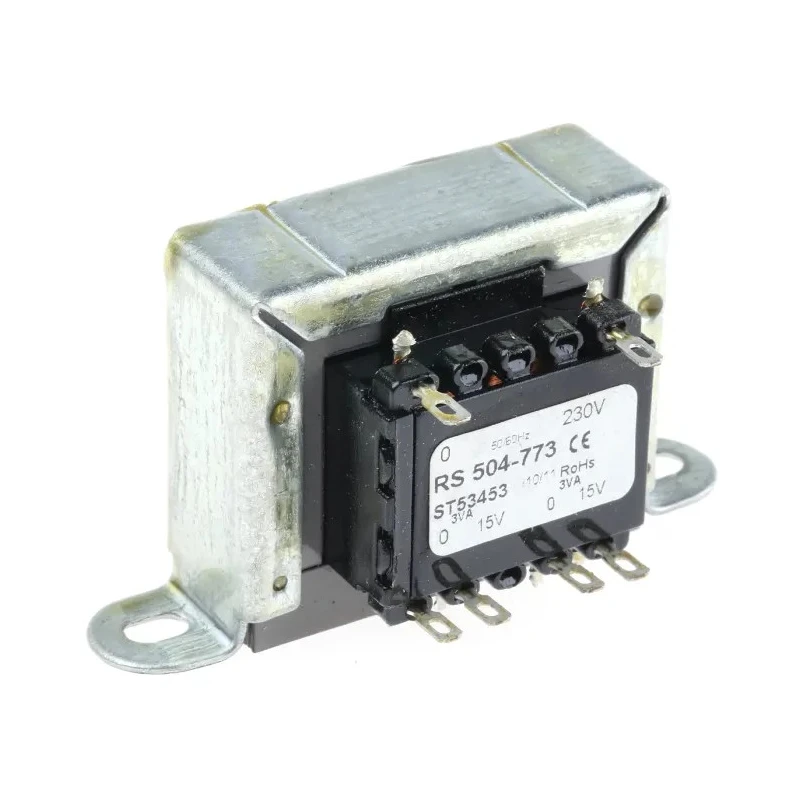

RS PRO 2 Output 6 VA Chassis Mount Transformer, 15 V ac, AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6, RoHS Compliant 504-773
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Length | 45mm |
| Model | 504-773 |
| Depth | 37mm |
| Gross Weight | 210g |
| Width | 40mm |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 2 |
| Fixing Hole Diameter | 9.5mm |
| Primary Voltage | 230 V ac |
| Secondary Voltage | 15 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Walsall Transformers 6VA 2 Output Chassis Mounting Transformer, 15V acBrand | Walsall Transformers |
Key Features
- Constructed for chassis mounting with clamp fixing for secure installation.
- Offers a primary voltage rating of 230 V ac and dual secondary outputs.
- Complies with AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6 and RoHS standards ensuring safety and environmental compliance.
- Operates reliably across a temperature range from -30°C to 130°C.
- Designed with fully shrouded bobbins and full varnish impregnation for electrical insulation and durability.
- Features two-hole fixing wrap-over clamps and solder tag terminations for ease of mounting and connection.
- Tested at 100% electrical and flash levels according to BS3535 and EN 60742 standards.
- Compact dimensions of 45mm length, 40mm width, and 37mm depth with a weight of 210 g.
Product Description
RS PRO 504-773 Chassis Mount Transformer is a 6 VA power supply transformer designed for mounting on chassis, delivering 15 V ac from a primary input of 230 V ac. This model features two independent secondary outputs which can be connected in series or parallel, providing versatile voltage and current options for industrial, electronic, and manufacturing applications.
The transformer is constructed with double section bobbin construction, fully shrouded bobbins, and full varnish impregnation to ensure robustness and electrical safety. Its clamp construction allows for secure mounting using two-hole fixing wrap-over clamps. Solder tag terminations facilitate easy electrical connections, while optional terminal shrouds can be fitted for additional safety.
It is electrically and flash tested for 100% quality assurance and conforms to internationally recognized standards such as AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6, RoHS, AS/NZS 61558.1, and CE certification, confirming its compliance with stringent safety and environmental regulations.
The operating temperature range from -30°C to 130°C enables reliable performance in varied environments. The transformer runs at a frequency range of 50 to 60 Hz and features a fixing hole diameter of 9.5 mm, allowing compatibility with standard chassis mounts.
Its compact footprint measuring 45 mm (length) by 40 mm (width) by 37 mm (depth) and weighing only 210 grams makes it an ideal solution for space-constrained applications in industrial, laboratory, manufacturing, and electronic projects requiring regulated low voltage power supply.
Chassis mount clamp construction ensures secure mechanical stability. Two output windings provide flexibility for voltage/current requirements. Compliance with AS/NZS, IEC, EN standards and RoHS for safety and environmental care.
High-temperature capability supports harsh industrial settings. Compact size supports tight installation spaces. 100% electrical and flash tested for quality assurance. Suitable for diverse industrial and electronic equipment power needs.
Explore the complete range of industrial transformers and components available on EnvMart for reliable power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating is 230 V ac.
It provides a secondary voltage output of 15 V ac from two independent outputs.
The maximum operating temperature is 130°C.
The minimum operating temperature is -30°C.
The transformer has a length of 45 mm, a width of 40 mm, a depth of 37 mm, and weighs 210 g.
It operates at a frequency range of 50 to 60 Hz.
It features a clamp construction with two-hole fixing wrap-over clamps for secure mounting.
It complies with AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6, and RoHS standards.
It uses solder tag terminations for ease of electrical connections.
The fixing hole diameter is 9.5 mm, allowing compatibility with standard chassis mounts.
This transformer has two independent outputs that can be connected in series or parallel.
The transformer is manufactured in Poland.
