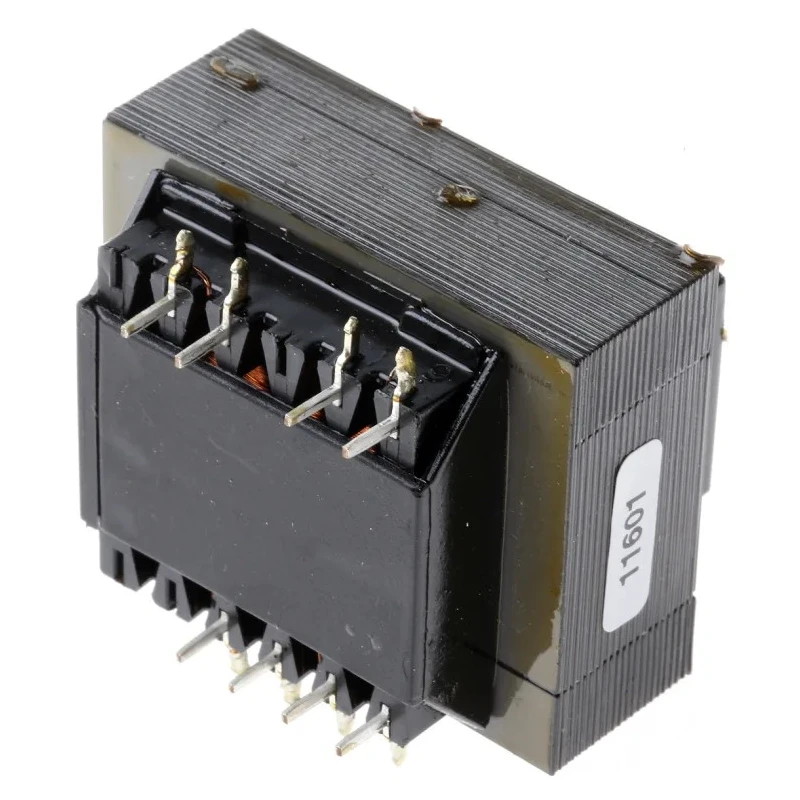

RS PRO 5 to 24 V AC 2 Output Through Hole PCB Transformer 12VA 230 V AC 50-60Hz 504-565

RS PRO 504-565 is a 5 to 24 V AC 2 Output Through Hole PCB Transformer, rated at 12VA power with a 230 V AC primary voltage operating at 50-60Hz frequency. This transformer is specifically designed for mounting on printed circuit boards (PCB) with a robust through hole mount type, ensuring secure mechanical and electrical connections.

The product features fully shrouded bobbins and extra pins, which enhance safety and guarantee secure board mounting. Its compact size with length 43mm, width 36mm, and depth 33mm allows efficient integration into electronic devices where space is critical.

The transformer has a high isolation voltage rating of 4kVrms and can operate at maximum temperatures up to 130°C, making it suitable for demanding environments. Designed for electrical and flash testing compliance, it meets international safety and quality standards including ASNZS 61558.1, IECBSEN 615586, RoHS, CE, and ASNZS 61558..6.

Its secondary windings provide two independent outputs between 5 and 24 V AC, adaptable for connection in series or parallel for versatile voltage and current outputs. The full varnish impregnation and double section metric bobbin construction contribute to durability and reliability.

This transformer is ideal for applications in industrial electronics, power supplies, instrumentation, and equipment requiring electrical isolation and voltage transformation. Designed with a through hole mount type for secure PCB fixation.

Supports secondary voltage range from 5 to 24 V AC with two independent outputs. Compact dimensions optimize PCB space usage. Maximum operating temperature of 130°C for thermal resilience. Complies with international safety and environmental standards.

Fully shrouded bobbins with extra pins enhance electrical insulation and mounting security. 100% electrical and flash tested for quality assurance. Rated isolation voltage of 4kVrms for electrical safety. Explore more transformers and power supply solutions in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
