RS PRO 2 Output 100 VA Chassis Mount Transformer, 24 V ac, IEC/BS/EN 61558-1, AS/NZS 61558.1, RoHS, AS/NZS 61558.2.6, 504-325

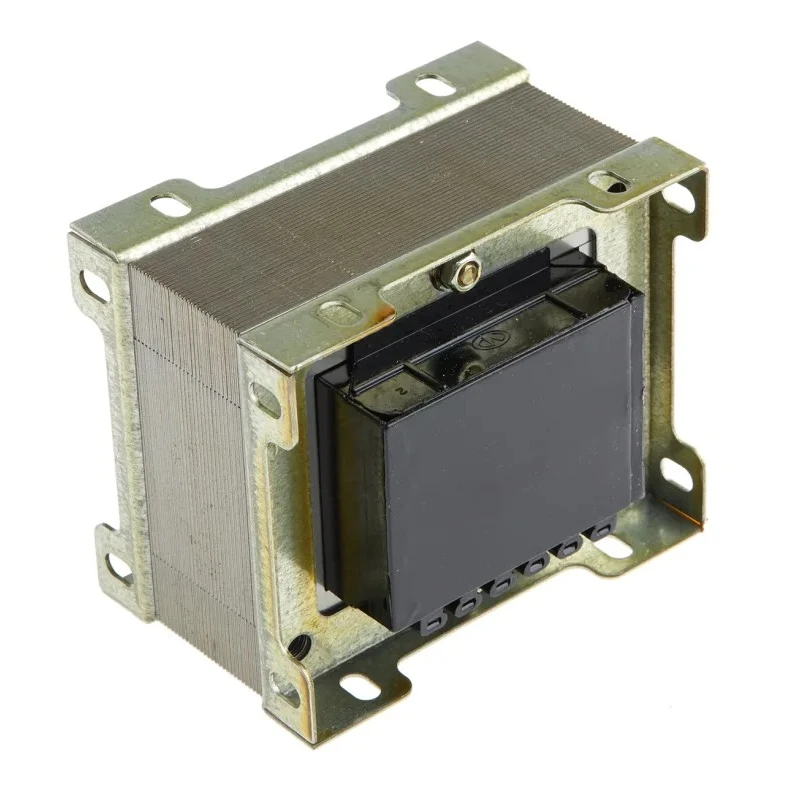

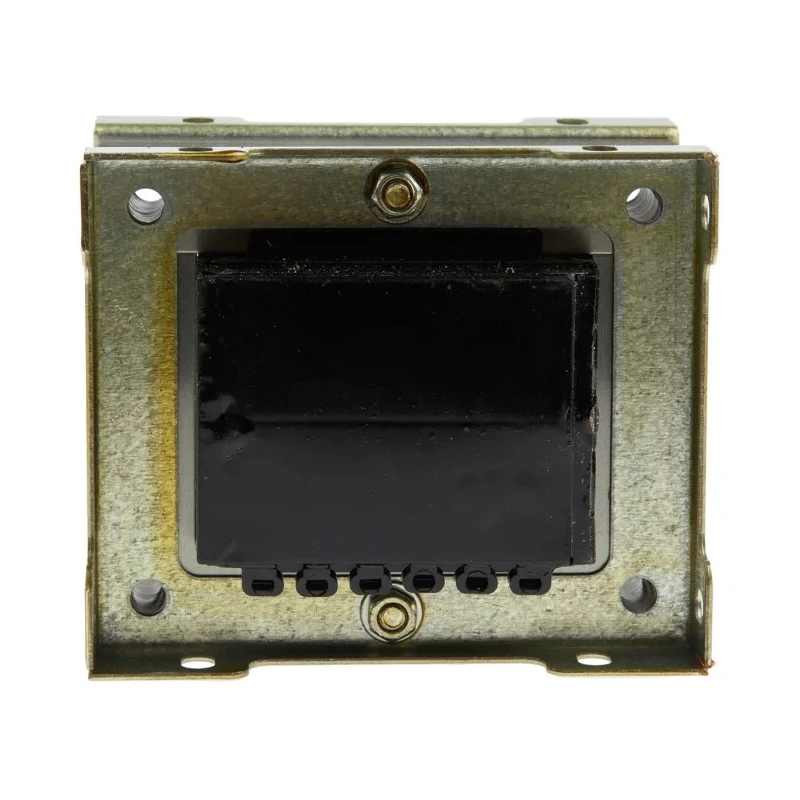

The RS PRO 504-325 chassis mount transformer is a dual output 100 VA power transformer designed for robust performance in industrial and electronic applications. It delivers a nominal secondary voltage of 24 V ac from a 230 V ac primary source. Engineered with a fully shrouded double section bobbin and varnish-impregnated chassis for enhanced durability and electrical safety, this transformer ensures stable and efficient voltage conversion.

Built to comply with leading international standards including IEC/BS/EN 61558-1, AS/NZS 61558.1, RoHS, and AS/NZS 61558.2.6, the transformer assures users of its rigorous quality and environmental safety norms. Its solder tag termination and two-hole wrap-over clamps on a multi-hole frame provide straightforward installation and secure mounting within equipment chassis.

Operating reliably in ambient temperatures from -30°C to 70°C and frequencies between 50 Hz and 60 Hz, the transformer suits a variety of scenarios. Its compact dimensions (89 mm length, 68 mm width, 75 mm depth) and moderate weight of 1.6 kg make it suitable for space-constrained applications.

This transformer is widely used in electromagnetic systems, electrical and electronic control systems, relays, pumps, speed changers, and heating elements where safe and consistent voltage transformation is critical. The dual secondary outputs can be configured in series or parallel to provide flexible voltage and current output options, enhancing adaptation to different electronic circuit requirements.

Dual output winding provides versatile voltage and current configurations. Compact chassis mount design for easy installation in control panels. Operates efficiently between -30°C and 70°C ambient temperatures. Constructed with fully shrouded double section bobbin and varnish impregnation for durability.

Solder tag termination ensures reliable electrical connections. Meets multiple international standards including IEC 61558-1 and AS/NZS 61558.2.6. Nominal primary voltage rating of 230 V ac and supports 50/60 Hz frequency.

Lightweight design with a total weight of 1.6 kg and compact dimensions. Ideal for electromagnetic applications, relays, pumps, heating elements and electronic controls.

RS PRO products are tested rigorously to meet demanding industry standards, and this transformer exempts no exception. It presents a reliable and high-quality solution for industrial electronics, manufacturing controls, HVAC systems, and laboratory equipment.
