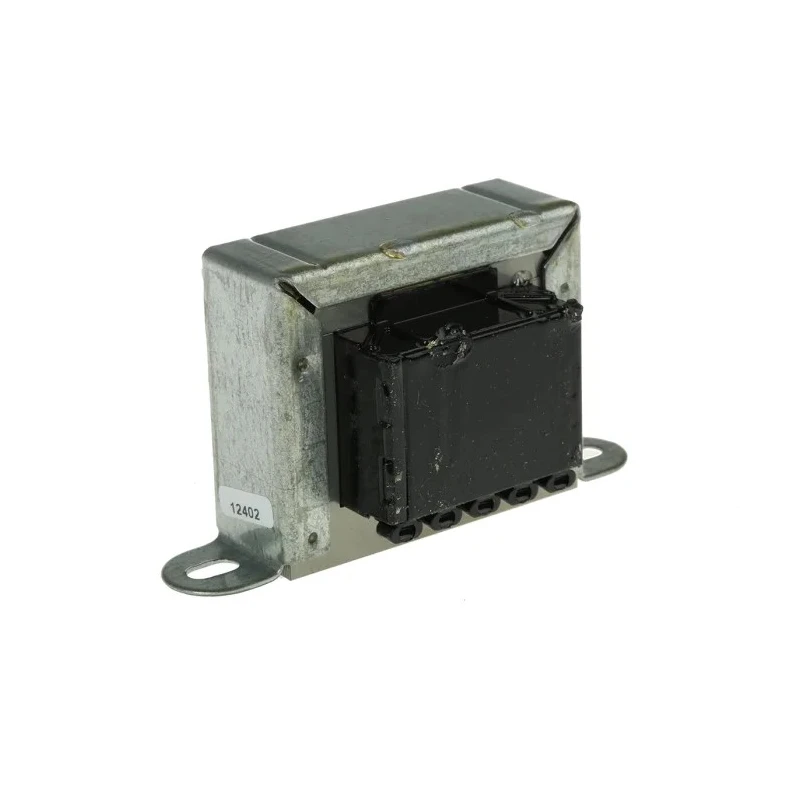

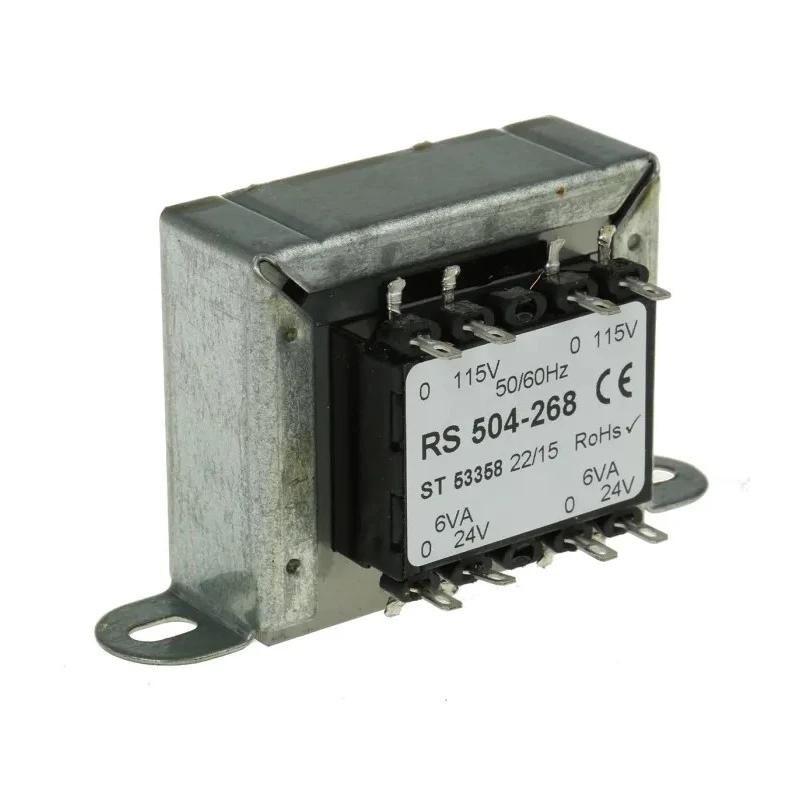

RS PRO 2 Output 12 VA Chassis Mount Transformer 24 V ac IEC/BS/EN 61558-1 CE RoHS AS/NZS 61558.1 AS/NZS 61558.2.6 504-268

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 2 Output 12 VA Chassis Mount Transformer 24 V ac IEC/BS/EN 61558-1 CE RoHS AS/NZS 61558.1 AS/NZS 61558.2.6 504-268

Name: RS PRO 2 Output 12 VA Chassis Mount Transformer 24 V ac IEC/BS/EN 61558-1 CE RoHS AS/NZS 61558.1 AS/NZS 61558.2.6 504-268
Brand: RS PRO
SKU: 164183
Price: 39.58 USD
Availability: InStock



Category Chassis Mount Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	59mm
Model	504-268
Depth	50mm
Gross Weight	210g
Width	50mm
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-30°C
Number of outputs	2
Primary Voltage	2 x 115 V ac
Secondary Voltage	24 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

This transformer features two 115 V ac primary windings that allow series or parallel connection for 230 V or 115 V operation.
It offers two independent secondary windings with 24 V ac output, suitable for series or parallel configuration.
The device provides 12 VA power capacity and operates within a temperature range of -30°C to 130°C.
Compact chassis mount design measures 59 mm length, 50 mm width, and 50 mm depth for easy integration.
Meets international standards IEC/BS/EN 61558-1, CE, RoHS, AS/NZS 61558.1, and AS/NZS 61558.2.6 ensuring safety and compliance.
Fully shrouded bobbins with double section construction deliver durability and electrical insulation.
Terminated with solder tags and two-hole wrap-over clamps enhance secure mounting and wiring.
Tested 100% electrically and flash tested according to BS3535 and EN 60 742 for quality assurance.

Product Description

RS PRO 504-268 2 Output 12 VA Chassis Mount Transformer 24 V ac is engineered for robust performance in power supply and distribution systems where reliability and safety are paramount. Featuring dual 115 V ac primary windings, users have the flexibility to connect in series for 230 V or in parallel for 115 V operation, suitable for diverse electrical infrastructure.

The transformer offers two independent 24 V ac secondary outputs that can be configured for series or parallel connection to broaden voltage and current options. This allows it to adapt efficiently to varying load requirements.

Its chassis mount clamp and frame construction provide a secure installation, with a compact footprint of 59 mm length, 50 mm width, and 50 mm depth, enabling integration into confined spaces. The unit operates safely within a temperature range from -30°C up to 130°C and supports frequency ranges from 50 Hz to 60 Hz.

Manufactured to comply with IEC/BS/EN 61558-1, CE, RoHS, AS/NZS 61558.1, and AS/NZS 61558.2.6 standards, this transformer ensures adherence to international safety and environmental regulations. The double section bobbin construction, full varnish impregnation, and fully shrouded bobbins enhance electrical insulation and durability.

The product features solder tag terminations and two-hole wrap-over clamps for reliable mounting, while multi-hole frame fixing options support various installation preferences. The transformer is 100% electrically and flash tested, conforming to BS3535 and EN 60 742 standards for quality and safety.

This chassis mount transformer is ideal for industrial, manufacturing, electrical supply, commercial equipment, and laboratory use cases where secure, adaptable power conversion is needed.

This product includes chassis mount clamp and frame construction for enhanced mechanical integrity. The dual primary windings allow flexible primary voltage configurations. Meets stringent international electrical safety and environmental standards.

Compact size facilitates easy installation in tight spaces. Tested for electrical safety and flash resistance ensuring dependable operation.

For users seeking high quality and safety certified transformers, the RS PRO 504-268 model is an excellent choice available at EnvMart within the Chassis Mount Transformer category.
