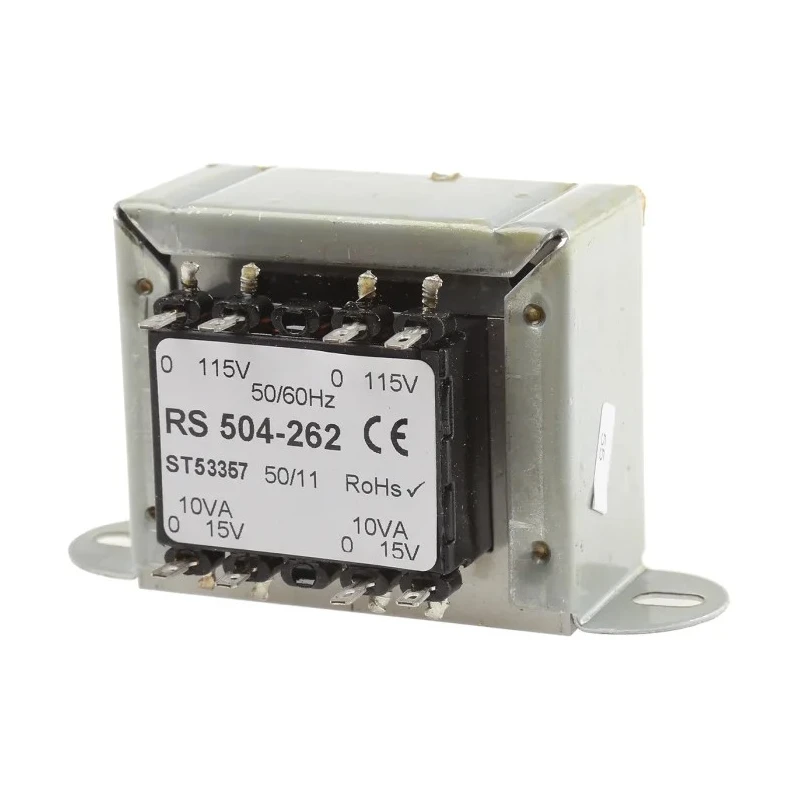

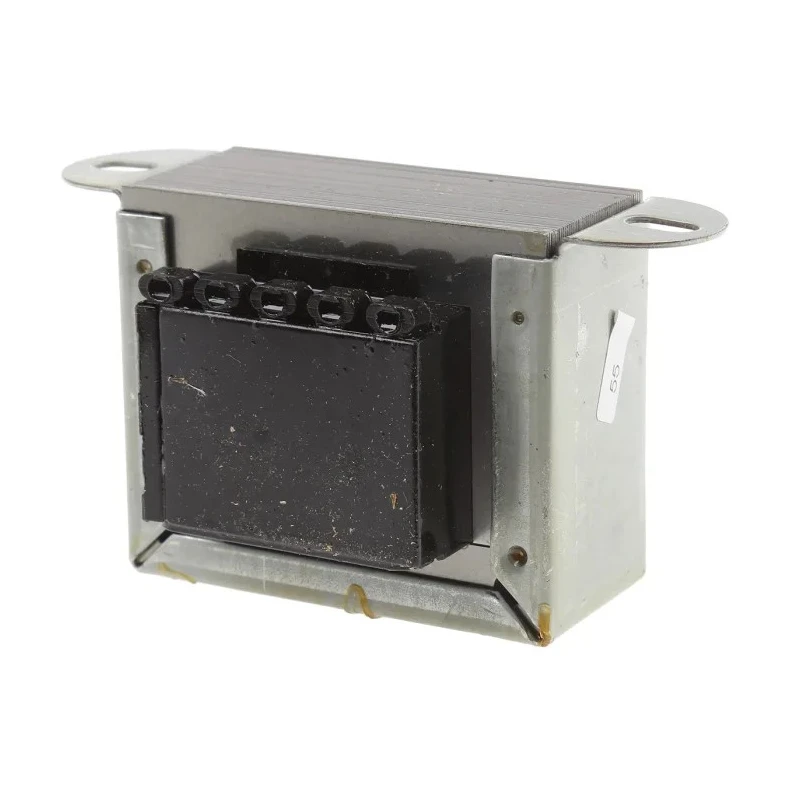

RS PRO 2 Output 20 VA Chassis Mount Transformer, 2 x 115 V ac Primary, 15 V ac Secondary, AS/NZS 61558.2.6 504-262

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 2 Output 20 VA Chassis Mount Transformer, 2 x 115 V ac Primary, 15 V ac Secondary, AS/NZS 61558.2.6 504-262

Name: RS PRO 2 Output 20 VA Chassis Mount Transformer, 2 x 115 V ac Primary, 15 V ac Secondary, AS/NZS 61558.2.6 504-262
Brand: RS PRO
SKU: 164180
Price: 42.63 USD
Availability: InStock



Category Chassis Mount Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	59mm
Model	504-262
Depth	50mm
Gross Weight	210g
Width	57mm
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-30°C
Number of outputs	2
Primary Voltage	2 x 115 V ac
Secondary Voltage	15 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Walsall Transformers 20VA 2 Output Chassis Mounting Transformer, 15V acBrand	Walsall Transformers

Key Features

The transformer features double section bobbin construction for enhanced durability.
Fully shrouded bobbins and full varnish impregnation provide excellent electrical isolation.
Equipped with two-hole fixing wrap-over clamps for secure chassis mounting.
Suitable for operation at frequencies between 50 Hz and 60 Hz.
It is electrically and flash tested, meeting stringent quality and safety standards.
The chassis mount design allows easy integration into electrical and electronic equipment.
Operates effectively within a temperature range from -30°C to 130°C.
Compact dimensions of length 59 mm, width 57 mm, and depth 50 mm support space-saving installations.

Product Description

RS PRO 504-262 is a premium 2 Output 20 VA Chassis Mount Transformer engineered for industrial and electronic component applications. With a primary voltage of 2 x 115 V ac and a secondary voltage of 15 V ac, it provides efficient voltage transformation while ensuring compliance with international standards such as AS/NZS 61558.2.6, IEC/BS/EN 61558-2-6, and IEC/BS/EN 61558-1. The CE certification further guarantees product safety and quality.

This transformer features a robust double section bobbin construction with fully shrouded bobbins and full varnish impregnation, which enhance insulation and durability. Its chassis mount clamp and frame construction with two-hole fixing wrap-over clamps facilitate straightforward and secure mounting within electrical assemblies.

Designed to operate reliably across a broad temperature range from -30°C to 130°C and frequencies of 50 Hz to 60 Hz, this product is suitable for diverse industrial environments, including manufacturing equipment, power supplies, control panels, and electronic devices.

The transformer has compact physical dimensions of 59 mm length, 57 mm width, and 50 mm depth, making it an excellent choice where space constraints are critical. It is electrically and flash tested, ensuring dependable performance and compliance with BS3535 and EN 60742 testing standards.

Double section bobbin construction improves reliability in demanding environments. Fully shrouded bobbins and complete varnish impregnation protect against electrical faults. Two-hole fixing clamps provide firm mounting to chassis frameworks.

100% electrical and flash tested for safety and quality assurance. Tested according to BS3535 and EN 60742 standards. RoHS compliant, supporting environmental safety measures. Lightweight design at 210 grams facilitates easy handling and installation.

Multi-hole frame fixing options available for diverse installation needs.

Ideal for use in industrial, manufacturing, electronic assembly, automation, and power supply applications where robust and reliable voltage transformation is needed. This RS PRO chassis mount transformer provides excellent versatility and dependable operation, making it a reliable component for electrical engineers and technicians.
