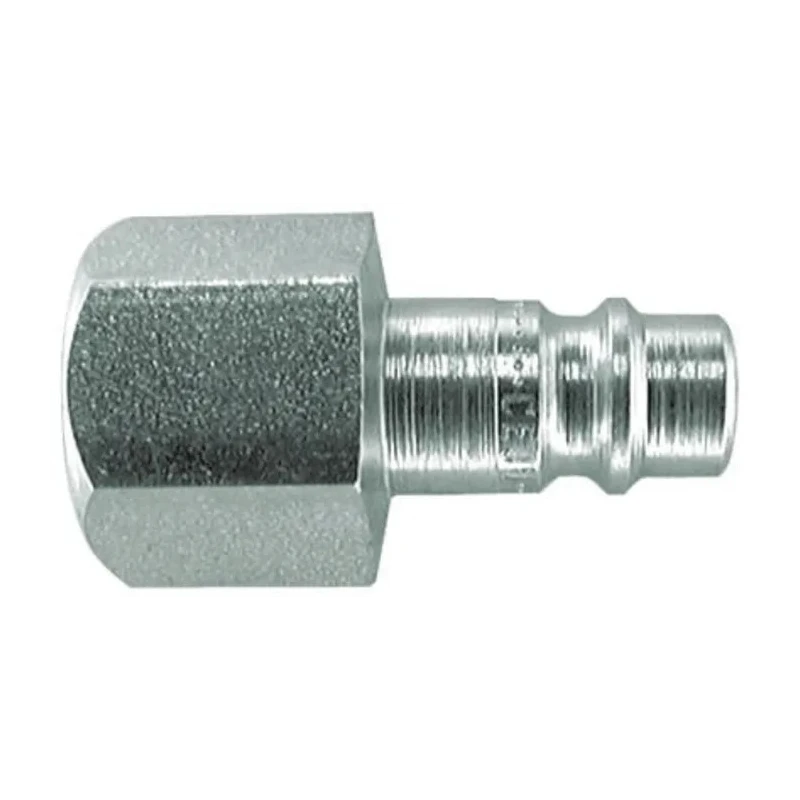

CEJN Steel Pneumatic Quick Connect Coupling 3/8 in Female G 310 Series 16 bar 100°C 103105204

Free Delivery in India | Lowest Global Shipping Charges

CEJN Steel Pneumatic Quick Connect Coupling 3/8 in Female G 310 Series 16 bar 100°C 103105204

Name: CEJN Steel Pneumatic Quick Connect Coupling 3/8 in Female G 310 Series 16 bar 100°C 103105204
Brand: CEJN
SKU: 163793
Price: 10.78 USD
Availability: InStock



Category Pneumatic Quick Connect Coupling Brand CEJN Condition New

Specifications

Country of Origin	Sweden
Brand	CEJN
Material	Steel
Maximum Operating Pressure	16 bar
Finish	Zinc Plated
Series	310
Maximum Operating Temperature	100°C
Thread Size	3/8 in
Minimum Operating Temperature	-20°C
Standards/Approvals	EN 983, ISO Standard 4414, ISO 6150 B, A-A 59439
Thread Standard	G
Thread Gender	Female

Key Features

Constructed from durable steel with zinc plating for corrosion resistance.
Compatible with 3/8 inch G female threads according to thread standard G.
Operates safely up to a maximum pressure of 16 bar.
Supports operating temperatures ranging from -20°C to 100°C.
Includes pre-applied thread sealant on male threads for easy installation.
Features a 5.3 mm nominal flow diameter ensuring efficient air flow.
Available in standard and vented safety versions with two-stage disconnection for operator protection.
Complies with EN 983, ISO Standard 4414, ISO 6150 B, and A-A 59439 standards.

Product Description

CEJN 103105204 Steel Pneumatic Quick Connect Coupling, part of the 310 Series, is engineered for reliable pneumatic system connections featuring a 3/8 inch Female G thread standard. Made from zinc-plated steel, this coupling offers robust durability combined with corrosion resistance, making it ideal for demanding industrial and manufacturing pneumatic applications.

The coupling supports a maximum operating pressure of 16 bar and a temperature range from -20°C to 100°C, suitable for various environmental conditions. Its nominal flow diameter of 5.3 mm ensures efficient air throughput, while the pre-applied thread sealant on male threads simplifies installation and guarantees airtight sealing.

This coupling is offered in both standard and specialized vented safety versions. The vented safety version features a two-stage disconnection process that safely vents the coupling to minimize risks associated with sudden component separation, thereby enhancing operator safety during maintenance cycles.

Compliant with industry standards including EN 983, ISO Standard 4414, ISO 6150 B, and A-A 59439, the CEJN 310 Series coupling matches internationally recognized quality and safety requirements. It interchanges with US Mil C 4109 1/4in. and Rectus 23//24 fittings, ensuring compatibility with a wide range of pneumatic systems.

Durable zinc-plated steel body construction. 3/8 inch female G thread standard with pre-applied thread sealant. Maximum operating pressure of 16 bar. Operational temperature range from -20°C to 100°C. Nominal flow diameter of 5.3 mm for efficient air flow.

Available in safety vented versions with two-stage disconnection. Conforms to EN 983, ISO 4414, ISO 6150 B, and A-A 59439 standards. Manufactured in Sweden with high-quality standards.

This Pneumatic Quick Connect Coupling is widely used in industrial, manufacturing, mechanical, HVAC, and fluid power systems for efficient and safe air hose connections and disconnections. Choose CEJN 103105204 for trusted performance and safety adherence. Explore more pneumatic connectors and components in the EnvMart industrial tools category.
