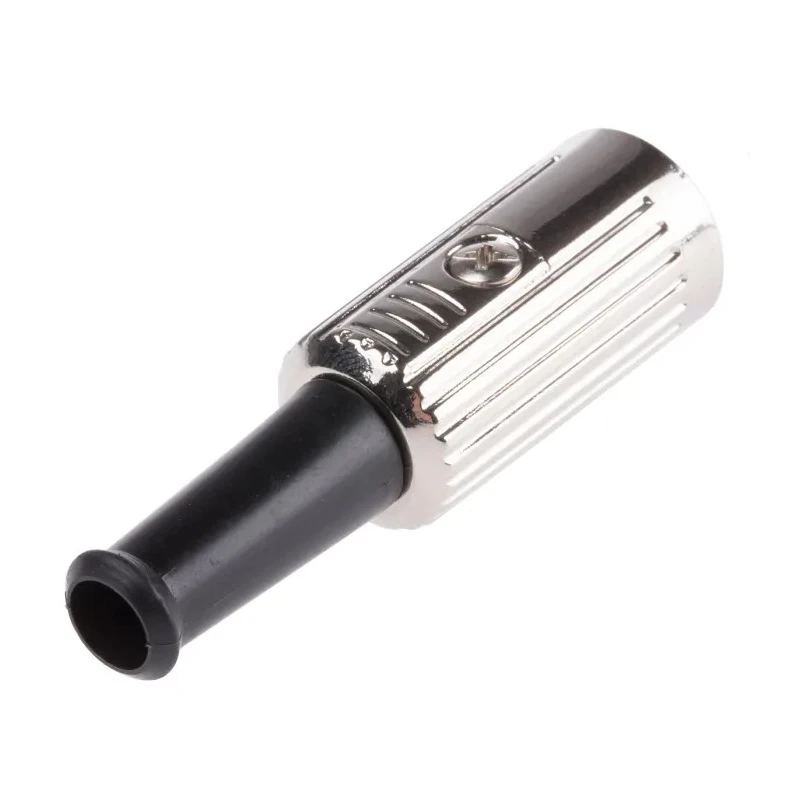

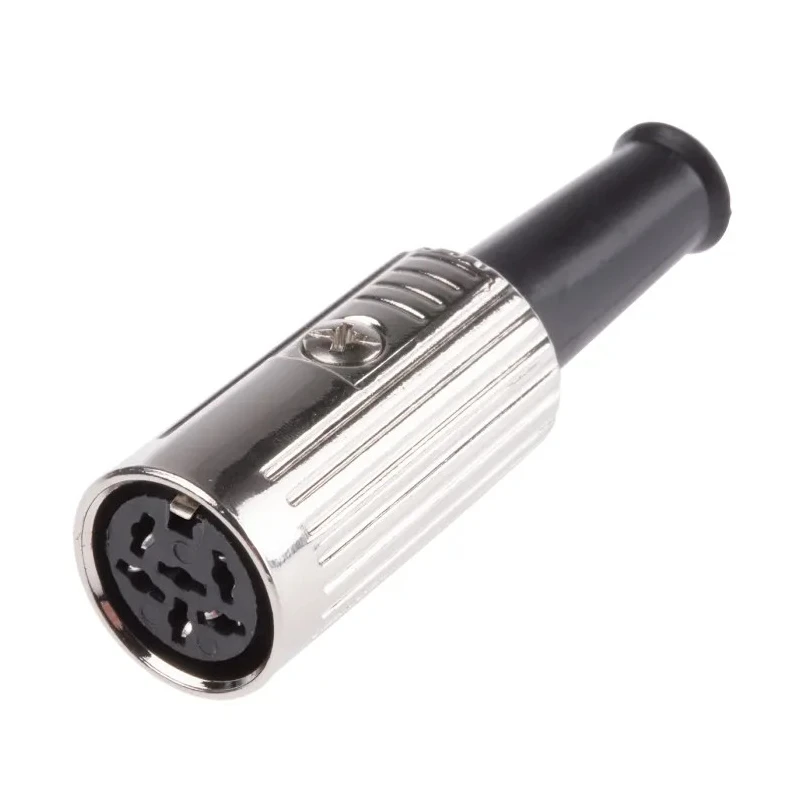

RS PRO 6 Pole Straight Standard DIN Socket, Female Connector, 4A Current, 100V AC, Push Lock Mounting 491-223

RS PRO 491-223 6 Pole Straight Standard DIN Socket is a high-quality cable-mounted female connector designed for electronic and electrical applications. Rated for 4 amps and 100 volts AC, this DIN socket ensures consistent and safe connectivity.

The connector features six silver-plated brass contacts housed within a durable ABS shell with an additional zinc alloy shield cover. This shielded design minimizes electromagnetic interference, making it suitable for sensitive electronic equipment and power applications requiring reliable signal integrity.

Its push lock mating system offers quick and secure connection to matching plugs. The nickel-plated die-cast body, along with steel nickel-plated set screws and T-holder, provides mechanical robustness and long service life.

Engineered to maintain excellent electrical performance, the socket has a maximum contact resistance of 30 milliohms for pins and 50 milliohms for the shell. The insulation resistance at 100 megaohms ensures minimal leakage risk. It successfully passes withstanding voltage tests at 250 volts AC for one minute.

Commonly used within industrial, electronics manufacturing, and repair settings, this 6-pin DIN socket connects devices like audio equipment, computers, and control systems, supporting standard configurations.

Package contents include the cable mount DIN socket with integrated cable clamp and PVC support sleeve, ensuring cable strain relief and durability during use. Six-contact DIN Socket designed for cable mounting applications.

Current rating of 4A and operating voltage of 100V AC for stable electrical performance. Silver-plated brass contacts ensure high conductivity and corrosion resistance. Robust ABS housing with a zinc alloy shield cover for durability and shielding.

Push lock mating type for secure and easy connection. Nickel-plated die-cast body and steel nickel-plated set screw and T-holder improve strength. Contact resistance rated at 30mΩ max for pins and 50mΩ max for shell for low power loss.

Insulation resistance of 100MΩ at 500V DC minimises leakage currents. Voltage withstand test at 250V AC for 1 minute ensures safety under transient conditions. Ideal for electronic components and power connector applications requiring 6-pin DIN connections.
