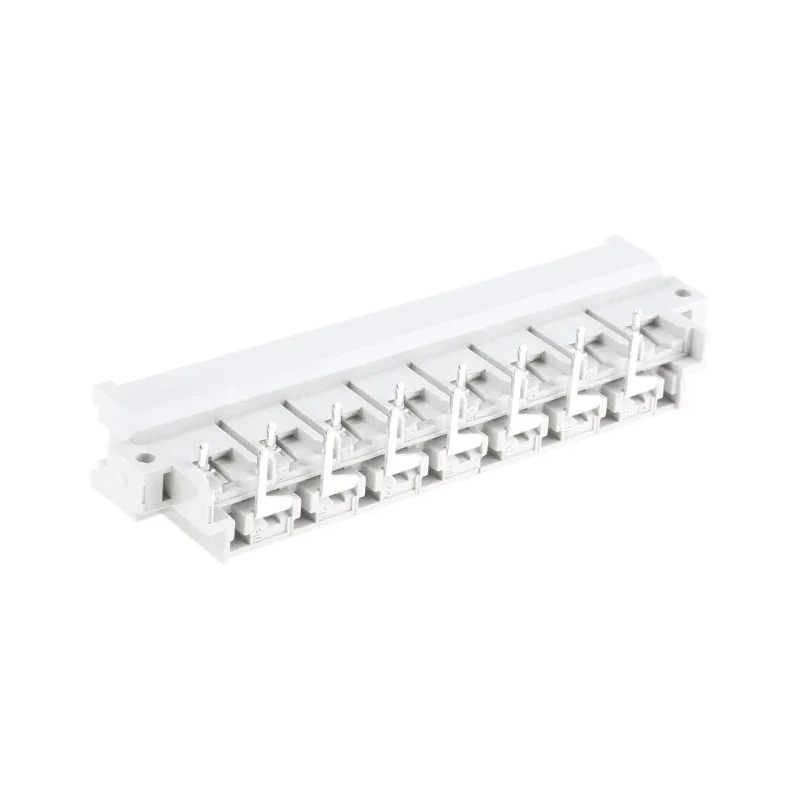

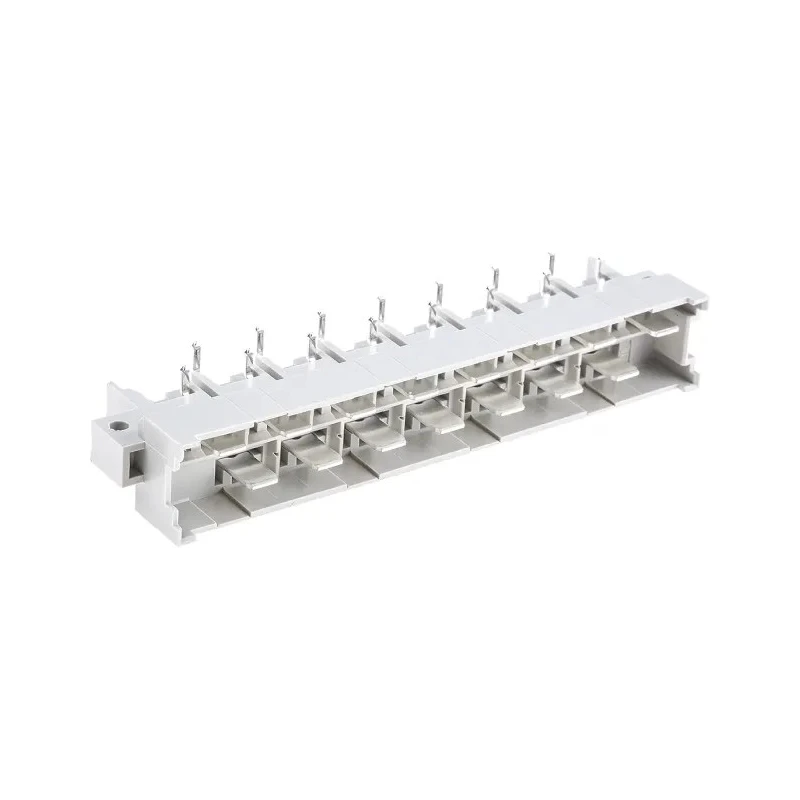

HARTING DIN 41612 15 Way 10.16 mm Pitch Through Hole 2 Row Male Right Angle Connector 09061152932

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 15 Way 10.16 mm Pitch Through Hole 2 Row Male Right Angle Connector 09061152932

Name: HARTING DIN 41612 15 Way 10.16 mm Pitch Through Hole 2 Row Male Right Angle Connector 09061152932
Brand: HARTING
SKU: 161981
Price: 9.43 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	India
Brand	HARTING
Orientation	Right Angle
Current	15A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	H15
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	10.16mm
Contact Plating	Silver over Nickel
Number of Contacts	15
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	8mΩ
Row Loading	D/Z
ERNI 15 Way 10.16mm Pitch, 2 Row, Right Angle DIN 41612 Connector, PlugBrand	ERNI
469-522	90° PCB mounting with standard contacts
481-954	90° PCB mounting with one Leading Contact (LC) mates first on position z32
481-960	250 blade Plug has Leading Contact position z32 and is terminated with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded)
740-6966	250 blade Plug standard contacts with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded)

Key Features

This connector features a high current rating of 15 amperes for robust performance.
It uses silver over nickel contact plating for reliable conductivity and durability.
The connector is constructed with polybutylene terephthalate housing for mechanical stability.
It has a wide operating temperature range from -55°C to 125°C suitable for harsh environments.
With a Class C1 solder termination type, it offers secure and effective PCB mounting.
The contacts are made of copper alloy ensuring excellent conductivity.
This 2 row DIN 41612 connector uses H15 subtype contacts configured as D/Z row loading.
It complies with DIN 41612 series standards commonly used in electronic and power connectors.

Product Description

HARTING 09061152932 DIN 41612 Connector is a high-quality electronic component designed for robust industrial and power electronics applications. This 15 way connector features a 10.16 mm pitch with two rows arranged in a right angle configuration for versatile through hole mounting.

The solder termination Class C1 ensures reliable and secure electrical connections suitable for printed circuit boards requiring high current capacity and mechanical stability. The connector contacts are plated with silver over nickel and made from copper alloy, offering excellent conductivity and corrosion resistance.

Constructed with a durable polybutylene terephthalate housing, this connector withstands demanding environmental conditions and elevated temperatures from -55°C to 125°C, making it ideal for use in industrial control systems, power supplies, rail transportation electronics, and other harsh environment applications.

15 way contact configuration in two rows (D/Z loading). High current capacity of 15A suitable for power applications. Right angle orientation ensures easy PCB integration. Through hole mount type provides robust mechanical attachment.

Maximum contact resistance of 8 milliohms for reliable signal integrity. Compliance with DIN 41612 series electrical connector standards. Housing material is polybutylene terephthalate for physical and thermal strength. Contact plating of silver over nickel enhances conductivity and lifespan.

Operating temperature range from -55°C to 125°C for diverse environmental conditions. This connector is commonly used in electronic component assemblies, backplane and rack connectors, and power distribution units requiring high current and durable connections.
