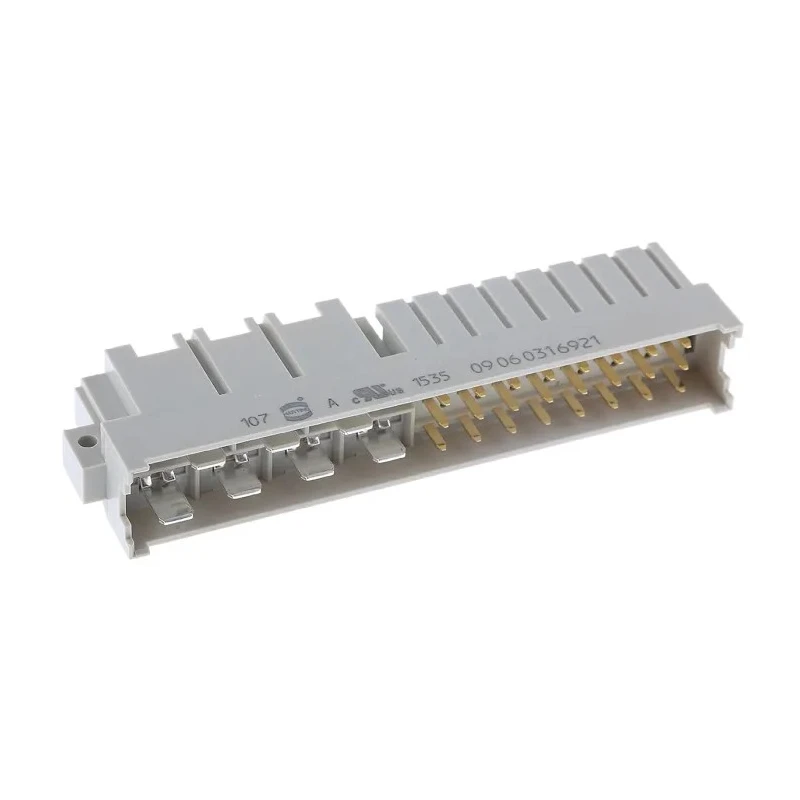

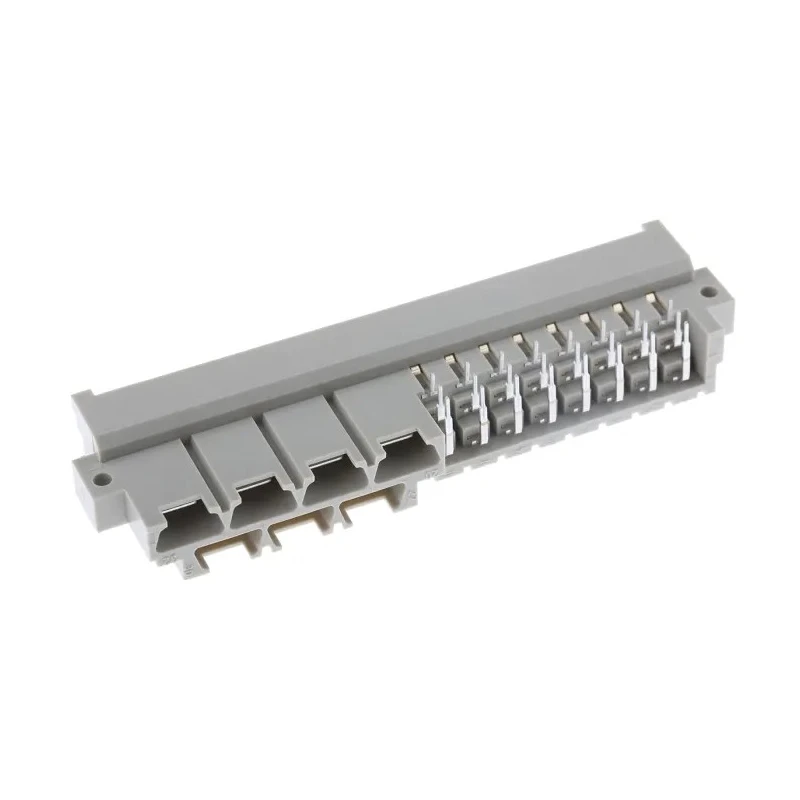

HARTING DIN 41612 64 Way 10.16 mm Pitch Through Hole Type C/2 Faston Class C2 3 Row Male Right 09060316921

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 10.16 mm Pitch Through Hole Type C/2 Faston Class C2 3 Row Male Right 09060316921

Name: HARTING DIN 41612 64 Way 10.16 mm Pitch Through Hole Type C/2 Faston Class C2 3 Row Male Right 09060316921
Brand: HARTING
SKU: 161979
Price: 19.36 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	15A
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Thermoplastic
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Faston
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	10.16mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	8mΩ
Row Loading	B, Z, D

Key Features

The connector features a 3-row male right angle configuration.
Termination type is Faston with gold over nickel contact plating.
It supports a maximum current of 15A and operates between -55°C and 125°C.
Constructed with copper alloy contacts and a fibreglass reinforced thermoplastic housing for durability.
Maximum contact resistance is 8 milliohms ensuring low power loss.
Suited for industrial electronics applications requiring reliable and high-current backplane connections.
Designed in conformity with DIN 41612 standards and Class C2 specifications.
Manufactured in Germany ensuring high quality and performance.

Product Description

HARTING 09060316921 DIN 41612 Connector is a high-quality, 64 way, 3 row male right angle connector with a 10.16 mm pitch and Faston Class C2 termination designed for through-hole mounting.

Constructed with robust copper alloy contacts plated in gold over nickel and encased in a fibreglass reinforced thermoplastic housing, this connector offers excellent durability and reliable electrical performance. It supports up to 15A current with a maximum contact resistance of 8 milliohms ensuring efficient power transmission.

The connector operates effectively between -55°C and 125°C, making it suitable for a wide range of industrial environments including manufacturing automation, power supply units, telecommunications, and railway transportation systems.

This product complies with the DIN 41612 series and is engineered for demanding backplane and rack connector applications. The Faston termination type enables quick and secure connections, while the Class C2 classification certifies its robustness and reliability for high current use cases.

Manufactured in Germany, this connector guarantees quality and long service life. Its 3 row male design and right angle orientation facilitate compact and efficient PCB mounting solutions.

The connector features a 3-row male right angle design for versatile mounting options. Faston termination type allows secure and easy connections. Gold over nickel plating reduces oxidation and ensures stable conductivity.

High current rating of 15A supports demanding electrical loads. Robust construction from copper alloy and fibreglass reinforced plastic housing. Wide operating temperature range from -55°C to 125°C for industrial reliability.

Meets DIN 41612 and Class C2 standards for connector performance. Ideal for use in electronic power distribution and control card assemblies.

This connector is essential for industrial, laboratory, manufacturing, and commercial electronics requiring high reliability and secure power connections. Explore the full range of HARTING DIN 41612 Connectors on EnvMart to suit various electrical system needs.
