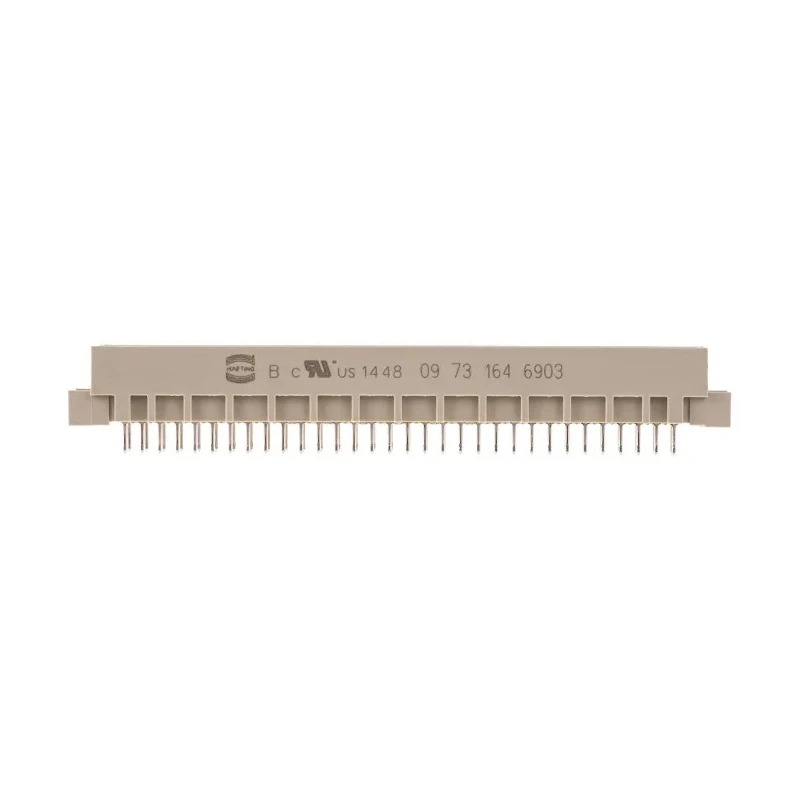

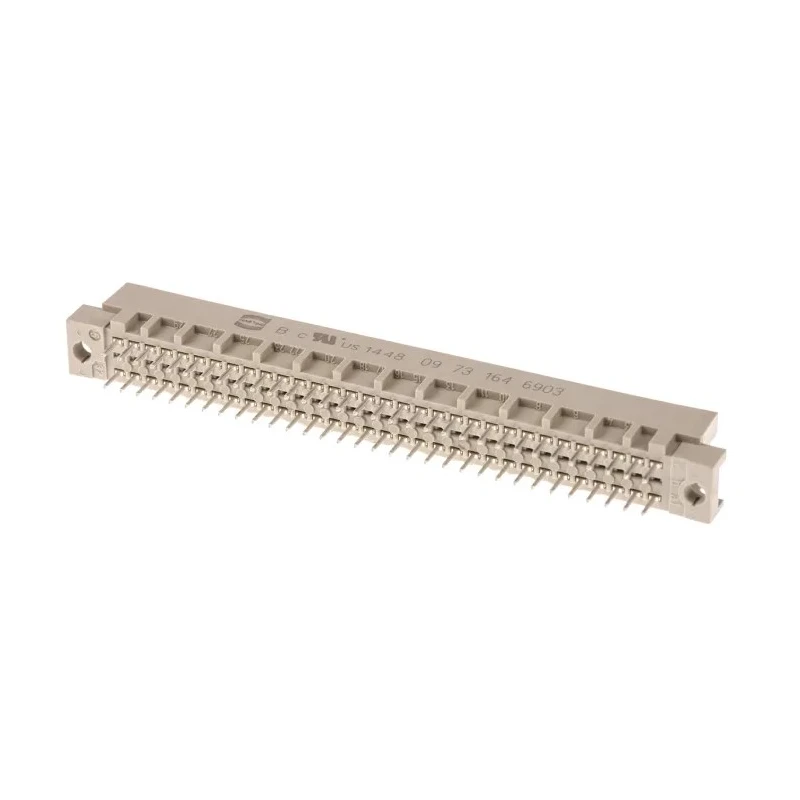

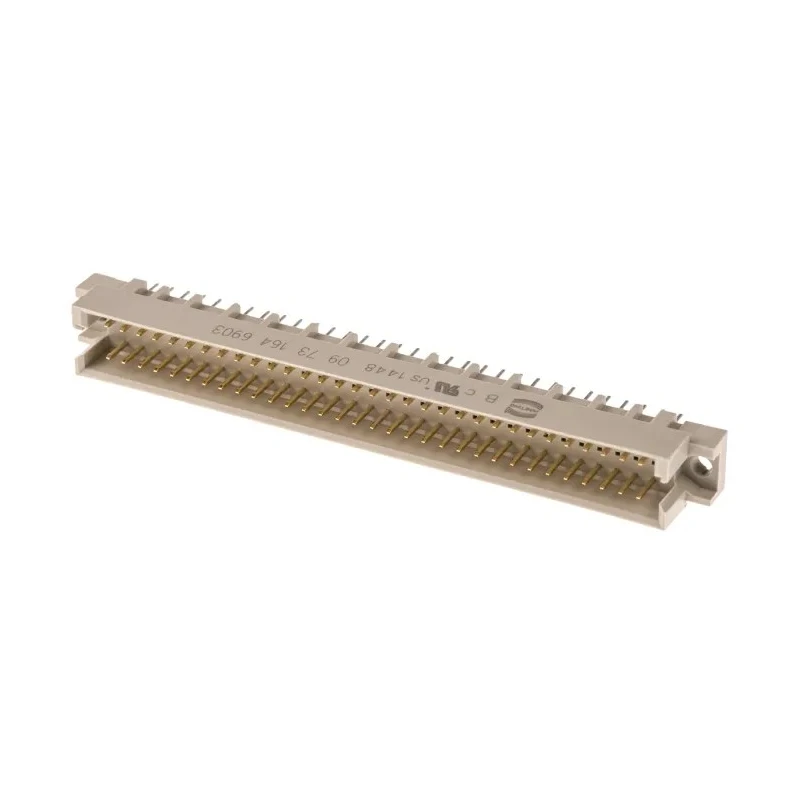

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Type C/2 Solder Class Class C2 2 Row Male Straight 09731646903

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Type C/2 Solder Class Class C2 2 Row Male Straight 09731646903

Name: HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole Type C/2 Solder Class Class C2 2 Row Male Straight 09731646903
Brand: HARTING
SKU: 161913
Price: 6.64 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Romania
Brand	HARTING
Orientation	Straight
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/C
ERNI 64 Way 2.54mm Pitch, 2 Row, Straight DIN 41612 Connector, PlugBrand	ERNI

Key Features

Features 64 contacts with a 2.54 mm pitch for precise connectivity.
Constructed with copper alloy contacts plated with gold over nickel for enhanced conductivity.
Designed with two rows (Type C/2) and a straight, male orientation.
Through-hole mount type with solder termination suitable for reliable PCB connections.
Operates between -55°C to 125°C, ensuring performance in harsh environments.
Housing made of polybutylene terephthalate for durable insulation.
Maximum contact resistance is 20 milliohms, maintaining signal integrity.
Compliant with DIN 41612 standards for Eurocard rack systems.

Product Description

HARTING 09731646903 DIN 41612 Connector is a high-quality 64-way connector with a 2.54 mm pitch designed for industrial and electronic applications requiring reliable backplane and rack connections.

This connector features through-hole mounting and a solder termination style, optimized for permanent PCB installation, delivering stable mechanical and electrical performance.

The connector has two rows of contacts (Type C/2), male gender, with a straight orientation, ideal for integration into Eurocard racking systems used in industrial control, telecommunications, and manufacturing equipment.

The contacts are crafted from copper alloy and plated with gold over nickel to enhance conductivity and reduce corrosion, supporting a maximum current of 2A and a contact resistance of 20 milliohms, which maintains signal accuracy and reduces losses.

The housing material is polybutylene terephthalate, offering excellent chemical resistance, durability, and electrical insulation. It is rated to operate reliably over a temperature range from -55°C to 125°C, making it suitable for harsh environmental conditions in industrial and electronic systems.

Features 64 contacts with a 2.54 mm pitch for precise connectivity. Constructed with copper alloy contacts plated with gold over nickel for enhanced conductivity. Designed with two rows (Type C/2) and a straight, male orientation.

Through-hole mount type with solder termination suitable for reliable PCB connections. Operates between -55°C to 125°C, ensuring performance in harsh environments. Housing made of polybutylene terephthalate for durable insulation.

Maximum contact resistance is 20 milliohms, maintaining signal integrity. Compliant with DIN 41612 standards for Eurocard rack systems. This connector is widely used in industrial control, telecommunications, manufacturing, and electronic equipment where robust and precise electrical connections are mandatory.

Choose HARTING DIN 41612 Connectors for dependable performance in demanding electronic and industrial applications. Explore more connectors in the DIN 41612 category at EnvMart for comprehensive solutions.
