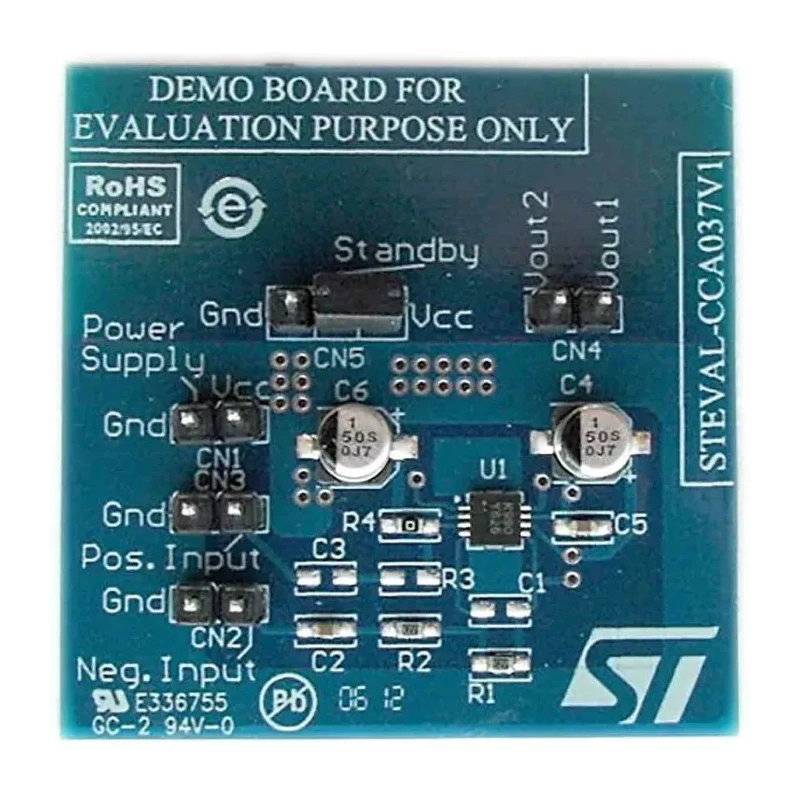

STMicroelectronics Analogue Development Kit Audio Amplifier Demonstration Board STEVAL-CCA037V1

STMicroelectronics STEVAL-CCA037V1 Analogue Development Kit Audio Amplifier Demonstration Board is built to evaluate the TS4990IQT low power audio amplifier device. Featuring a compact DFN8 micro package with dual flat non-leaded 8 pins, the board offers excellent space efficiency and thermal dissipation capabilities.

This demonstration board is designed for audio applications requiring low power consumption with high fidelity. The BTL gain is preset to 2 V/V, but users can easily adapt the gain by changing resistor values R1 or R2. The input stage allows configuration between single-ended and differential modes to support versatile audio input options.

The board operates over a supply voltage range from 2.2 V to 5.5 V, delivering an output power of 1.2 W at VCC of 5 V into an 8 Ω load with distortion (THD) of 1% at 1 kHz frequency. Its ultra-low power consumption standby mode reduces current draw to 10 nA, making it suitable for battery-powered and energy-sensitive devices.

Additional features include a high power supply rejection ratio (62 dB at 217 Hz with gain 2 V/V), near zero pop and click sounds preventing unwanted noise during power-up/down, and integrated thermal and short-circuit protection to enhance reliability and safety during deployment.

The kit uses the TS4990IQT low power audio amplifier device. Micro package DFN8 (8 pins) enables compact design and thermal efficiency. BTL gain set at 2 V/V, adjustable via resistors R1 or R2. Configurable input stage from single-ended to differential input.

Wide operating voltage range: 2.2 V to 5.5 V DC supply. Output power rating: 1.2 W @ 5 V supply, 8 Ω load, 1% THD, 1 kHz. Ultra low standby current: 10 nA. High PSRR of 62 dB at 217 Hz reduces noise interference. Near zero pop and click sounds for smooth audio experience.

Thermal and short-circuit protection ensure robust operation.

This demonstration board is ideal for industrial, consumer electronics, and audio product development, providing a reliable platform to test and integrate the TS4990IQT amplifier. It fits applications in low power, high-quality audio amplification for portable and embedded systems.

Choose STMicroelectronics STEVAL-CCA037V1 for precise evaluation, prototyping, and integration of audio amplifier technology. Explore more analogue development tools and amplifier modules in the EnvMart catalogue for your electronics design needs.
