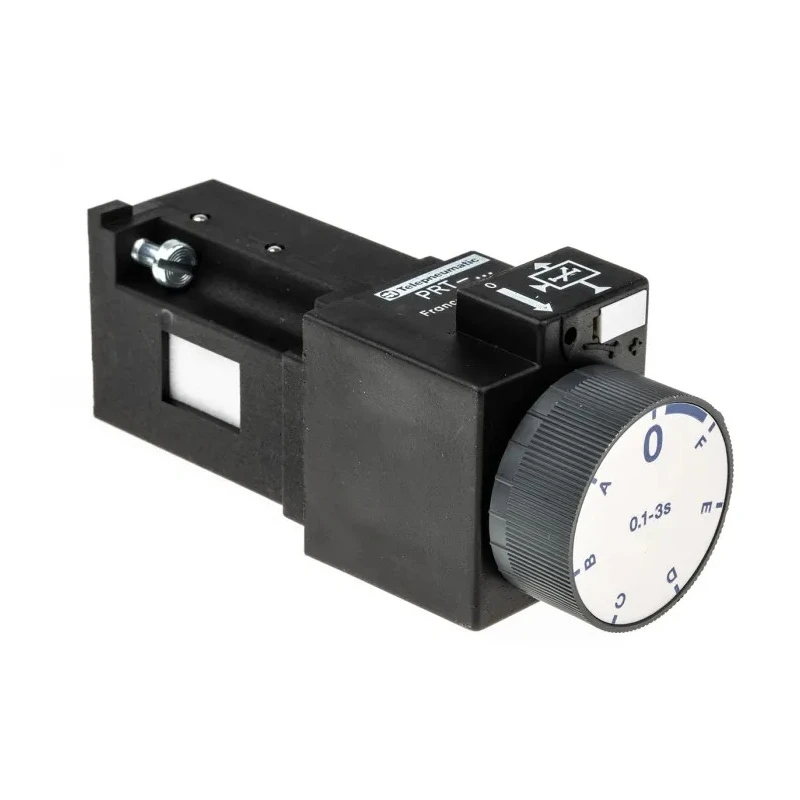

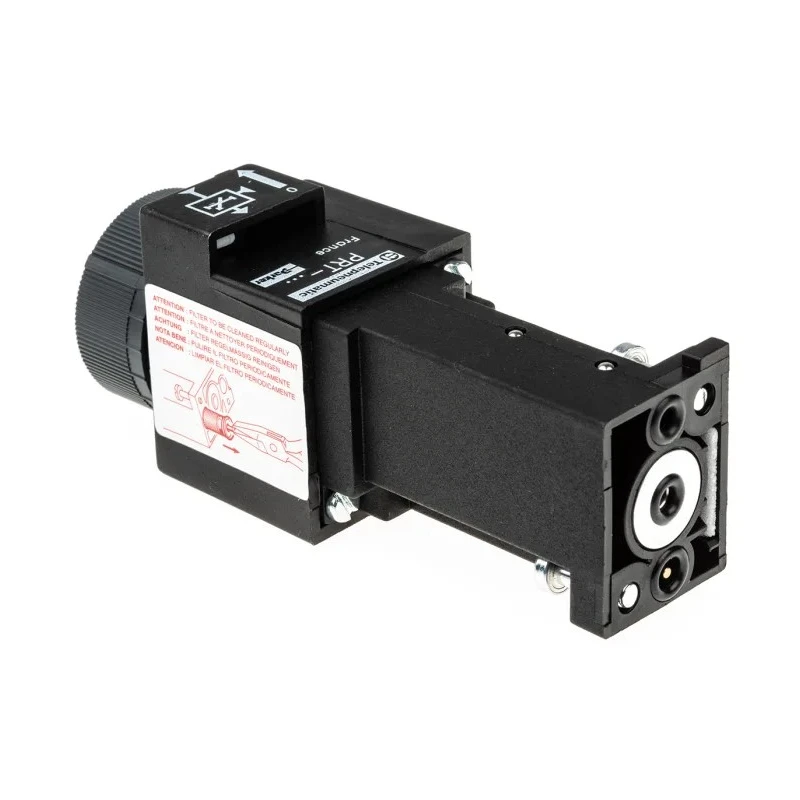

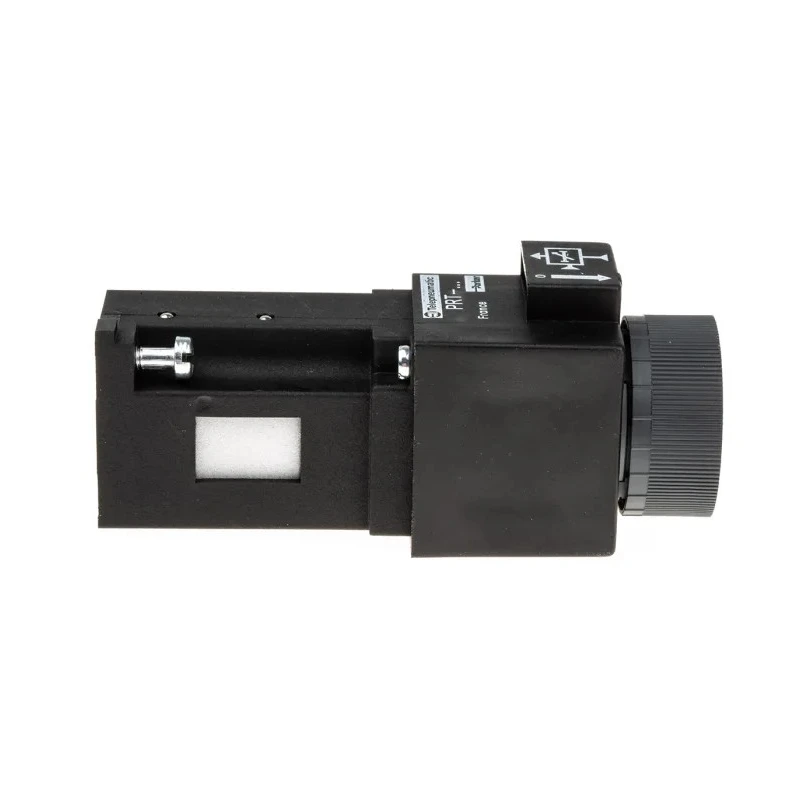

Parker Pneumatic Timer 8 Bar Maximum Operating Pressure PRT-E10

Parker PRT-E10 pneumatic timer is a high-performance time delay relay designed for industrial pneumatic systems requiring precise ON delay control. It operates with a pressure range between 3 bar minimum and 8 bar maximum, and an operating temperature range from -15°C to 60°C, making it suitable for demanding industrial and manufacturing environments.

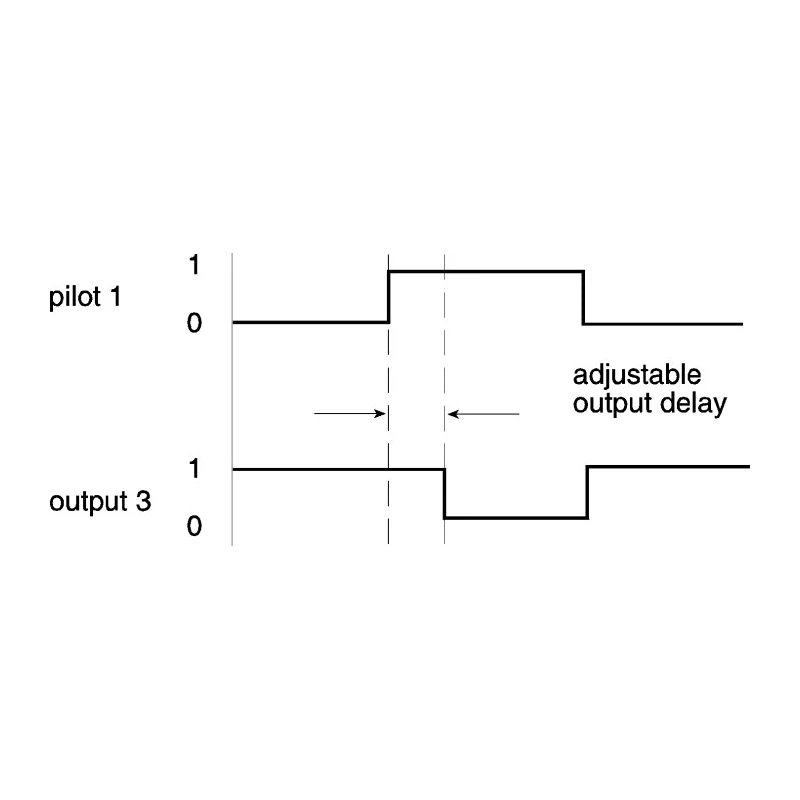

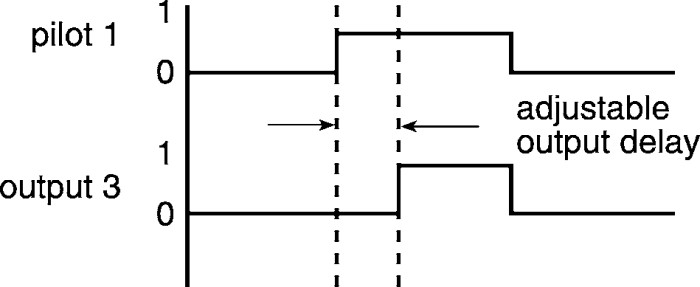

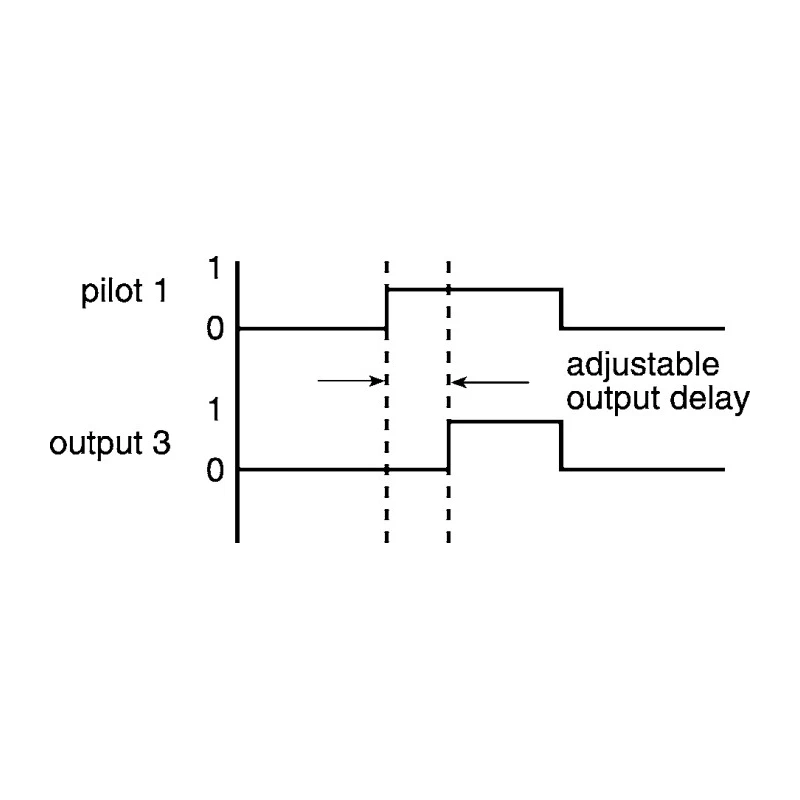

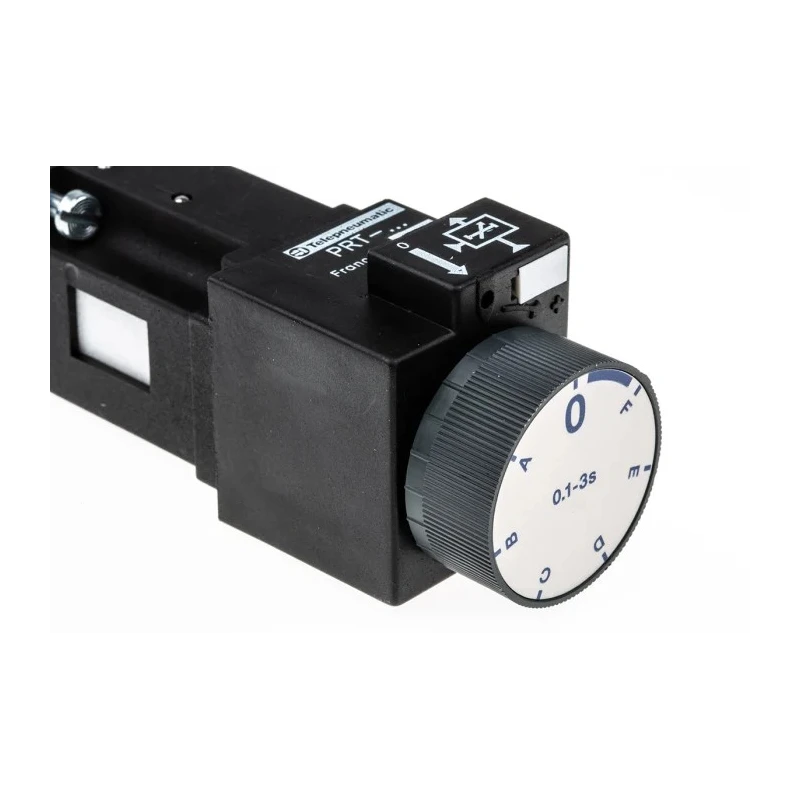

This timer includes a polyamide body that provides long life expectancy under continuous use. Its core components include a solenoid coil and core, operating spring, timing disk, filter, and diaphragm. When energized, the solenoid core moves upward, creating pressure on the diaphragm which then moves to untrap air through an adjustable timing disk. The delay time can be precisely set by altering the needle valve, allowing timing from 0.1 seconds up to 30 seconds.

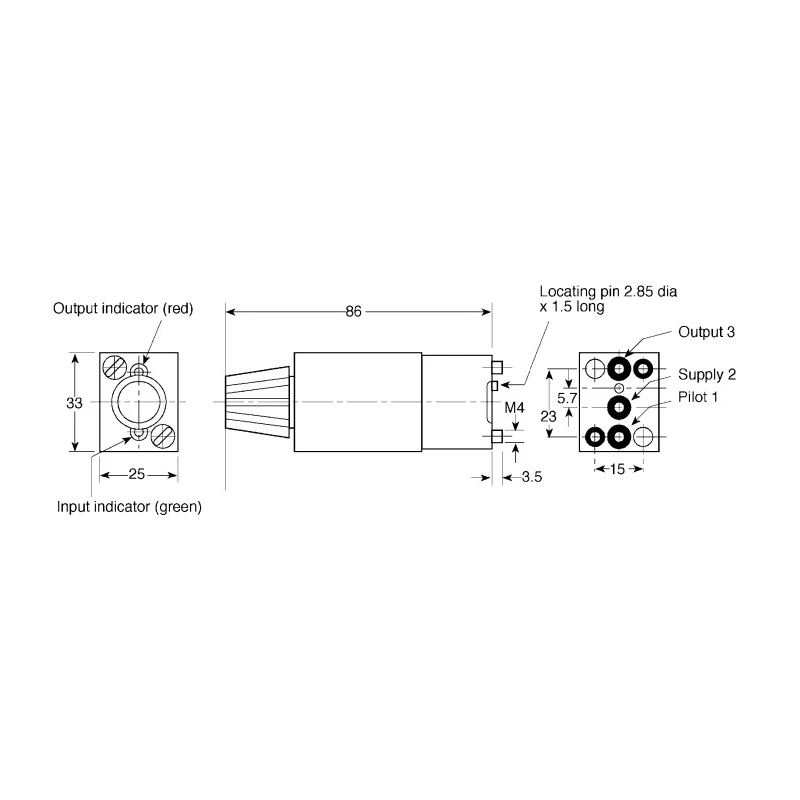

The unit mounts on a 2 or 3 port subbase with captive screws and sealing O-rings provided for secure installation. It features input (green) and output (red) pressure indicators that visually display signal states, facilitating easy diagnostics in automation systems.

With a response time of 2 to 3 milliseconds, the Parker PRT-E10 timer provides quick and reliable timing control essential for pneumatic logic control and fluid power systems. It is certified to meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, ensuring compliance with environmental and safety regulations.

This pneumatic timer is manufactured in France and widely used across industries such as manufacturing, automation, process control, and HVAC systems where precise timing and durability are critical.

The timer features an adjustable ON delay from 0.1 to 30 seconds for accurate control. Constructed with durable polyamide body ensuring long life expectancy. Equipped with solenoid coil, timing disk, diaphragm, and operating spring for reliable operation.

Includes 2 or 3 port subbase mounting with captive screws and sealing O-rings for secure installation. Operating temperature range suitable for various industrial conditions from -15°C to 60°C. Response time between 2 to 3 milliseconds ensures fast and reliable switching.

Input (green) and output (red) pressure indicators display operational state for easy monitoring. Manufactured in France, meeting ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards. Ideal for pneumatic logic control, industrial automation, and fluid power applications.
