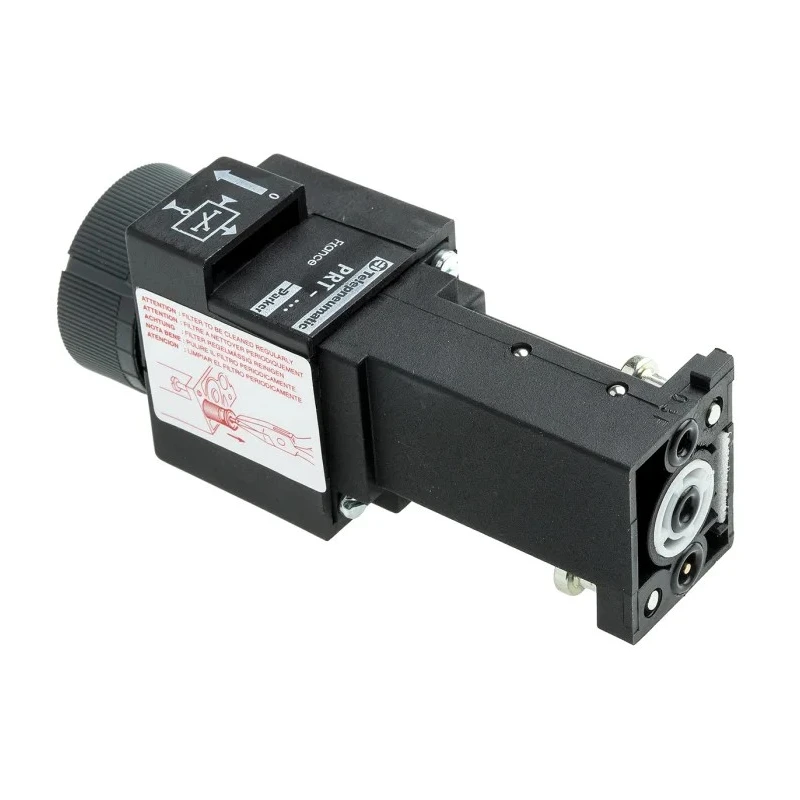

Parker Pneumatic Timer, Surface/Flush/DIN Rail/Clip Mount, Operating Pressure 3 to 8 bar, Temperature -15 to 60°C PRT-C10

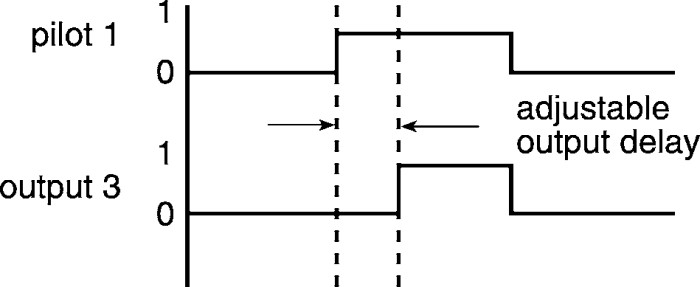

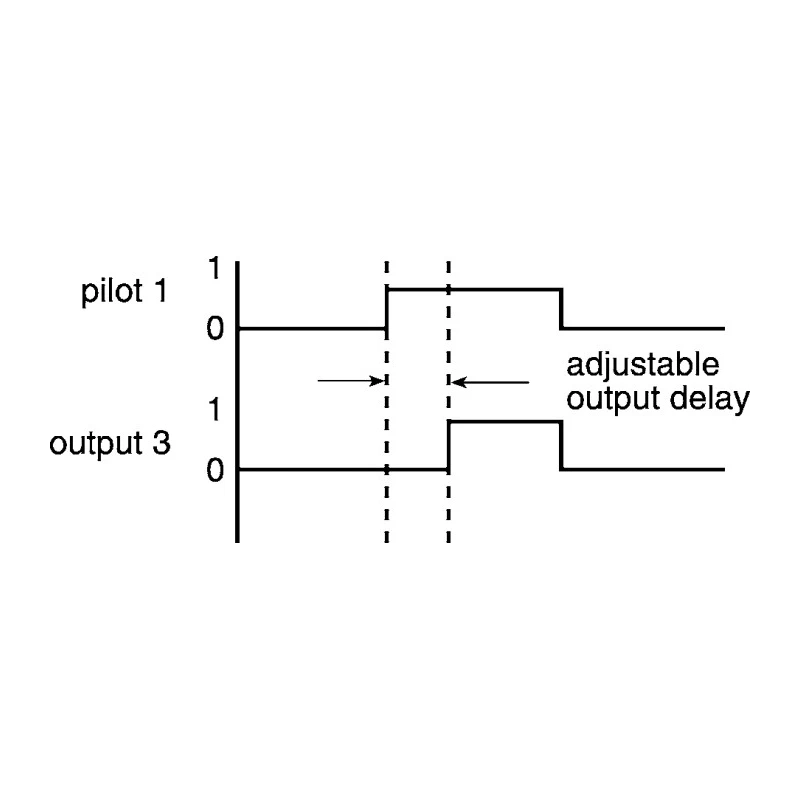

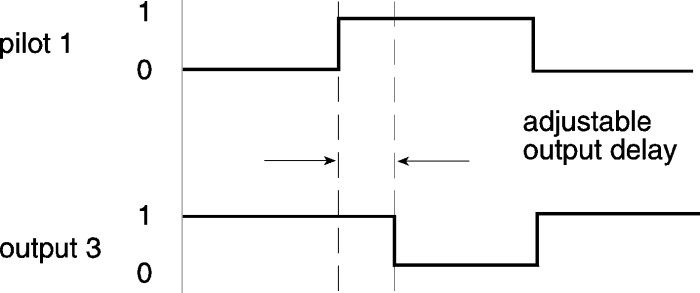

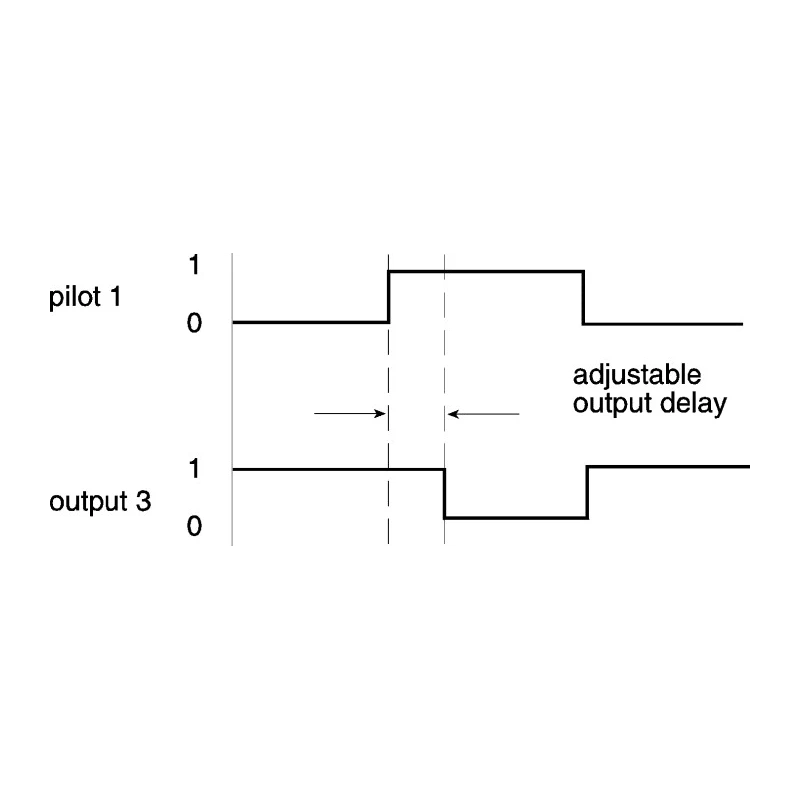

Parker PRT-C10 Pneumatic Timer is a pneumatic time delay relay designed for industrial fluid power applications requiring precise timing and pressure control. It operates within a pressure range of 3 to 8 bar and is rated for use in temperatures from -15°C to 60°C. The timer provides an OFF delay with an adjustable timing range from 0.1 seconds to 30 seconds, suitable for automation, pneumatic control systems, and machinery requiring delayed signal output.

The timer assembly consists of a solenoid coil and core, operating spring, timing disk, filter, and diaphragm which works collectively to regulate the timing function. When energized, the core movement presses the diaphragm that releases trapped air through the timing disk. Adjustment of delay time is achieved by manipulating the needle valve.

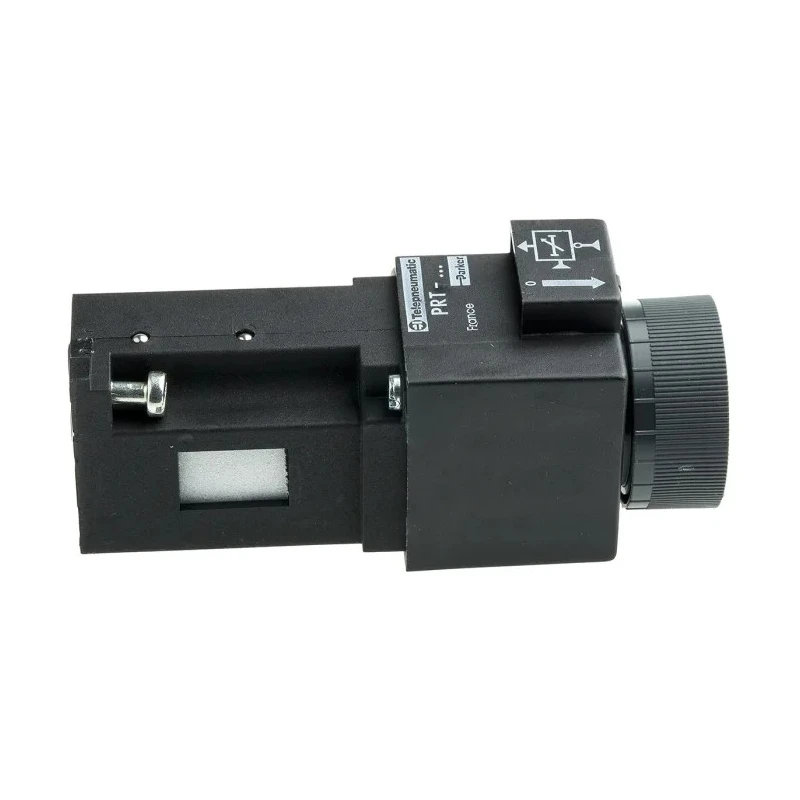

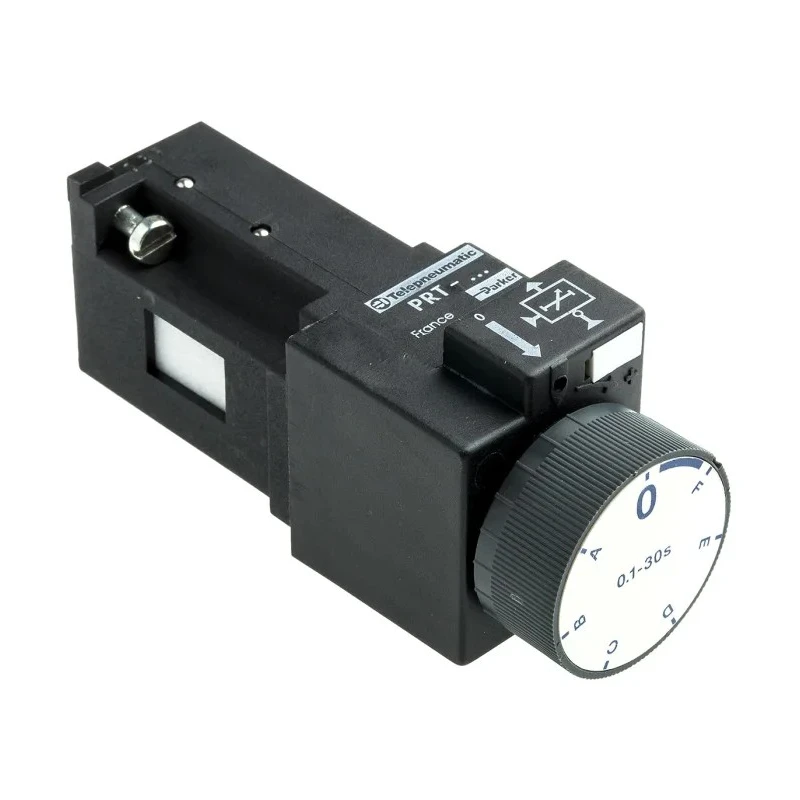

The robust polyamide body contributes to long service life and resistance to industrial environments. It supports multiple mounting types including surface mount, flush mount, DIN rail, and clip mount, enabling flexible integration into pneumatic subbase systems (2 or 3 port bases sold separately).

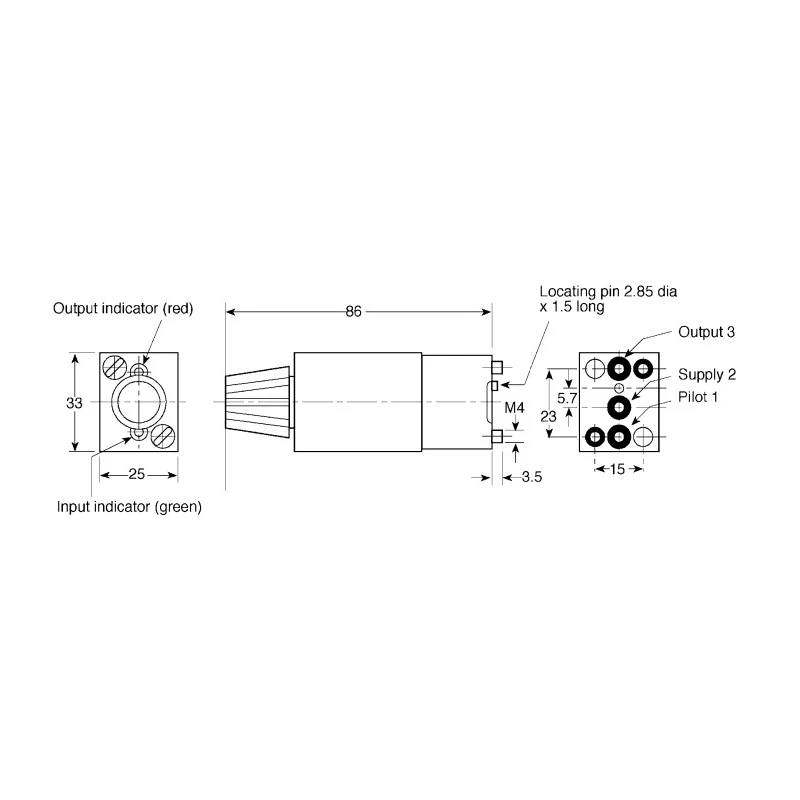

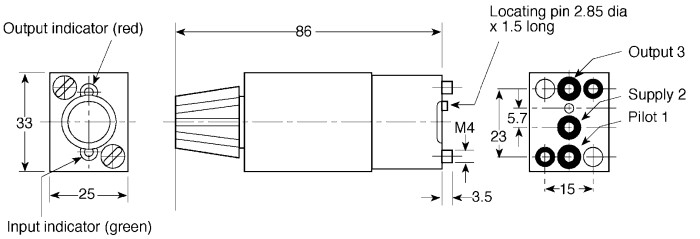

The logic unit incorporates input and output pressure indicators (green and red respectively), facilitating easy monitoring of operational signal states. The timer’s response time is notably fast at 2 to 3 milliseconds, enhancing control system responsiveness.

The product complies with hazardous area standards EN 50019 and EN 50014, ensuring safe usage in controlled environments. Additional certifications include ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, underlining its adherence to electrostatic discharge protections and quality standards. This unit is manufactured in France, reflecting stringent quality manufacturing controls.

OFF delay pneumatic timer with adjustable timing from 0.1 to 30 seconds. Robust polyamide construction for durability and long life. Multiple mount options: surface, flush, DIN rail, and clip. Operating pressure from 3 to 8 bar for wide pneumatic compatibility.

Operating temperature range from -15°C to 60°C suits diverse environments. Includes input (green) and output (red) pressure indicators for signal status. Fast response time of 2 to 3 milliseconds improves control efficiency.

Meets hazardous area and ESD protection certifications. Requires separate 2 or 3 port subbase mounting (not included).
