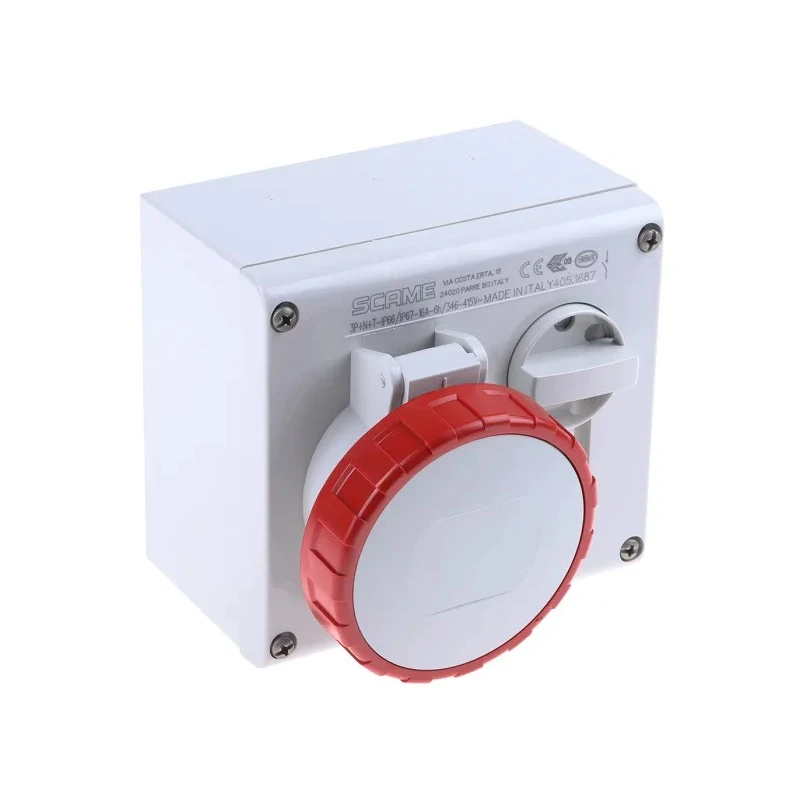

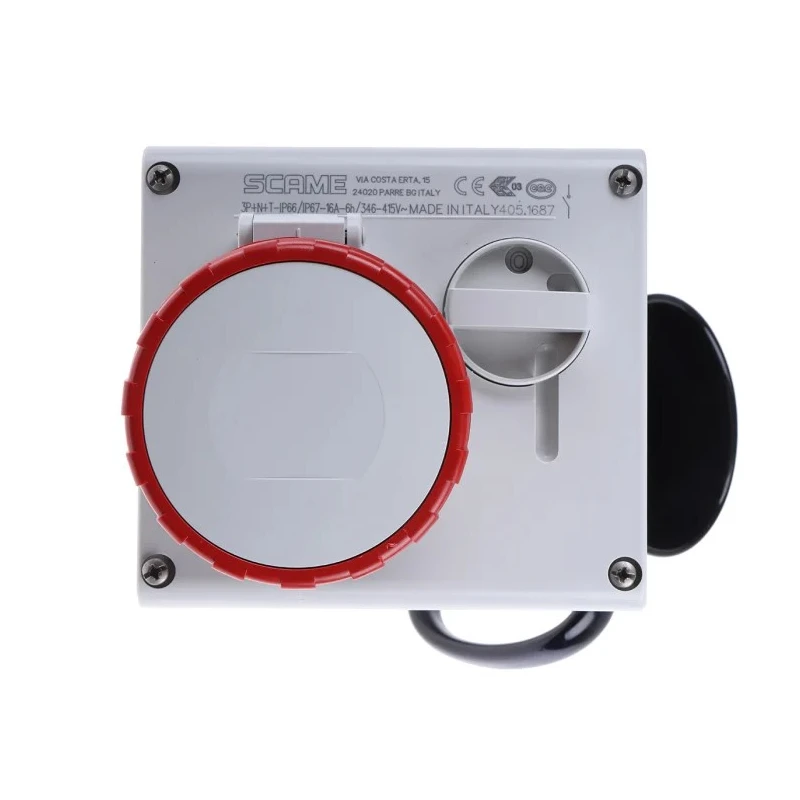

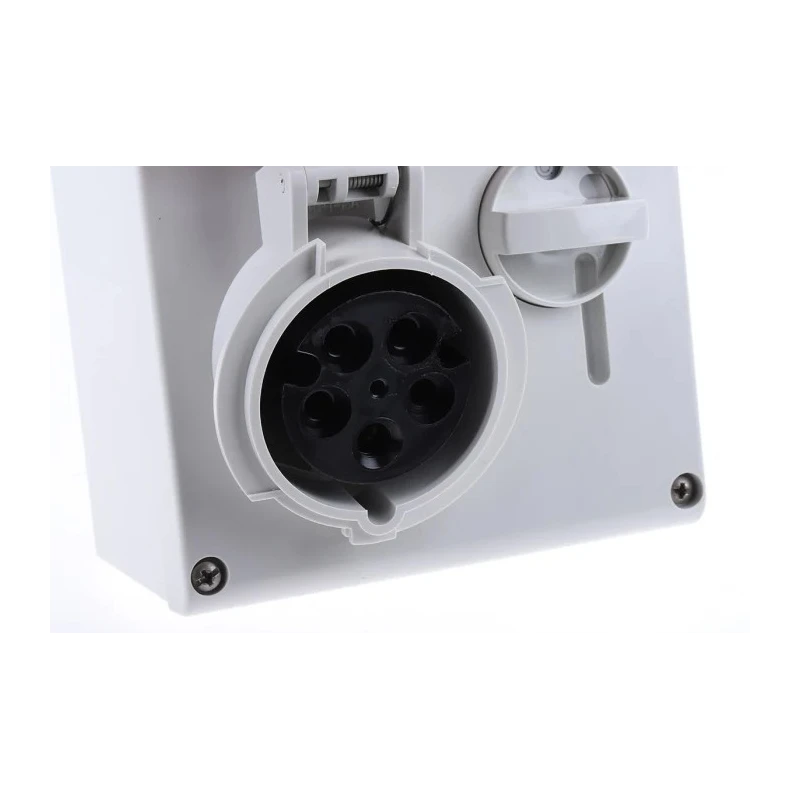

Scame Socket Switchable Industrial Interlock 3+N+E Pole IP67, IP66 Red Polymer Body Horizontal Earthing Position 6h 505.1687

Scame 505.1687 Socket Switchable Industrial Interlock is a horizontal industrial interlock socket that supports 3+N+E pole format with earthing positioned at 6h. It is rated for 16 amperes current and 415 volts voltage, making it suitable for demanding electrical applications.

Constructed with a robust polymer body, this socket provides excellent dimensional stability and chemical resistance against water, saline solutions, acids, bases, and mineral oils. The red body color enhances visibility in industrial settings.

Engineered for safety, the socket features a mechanical interlock mechanism that prevents the switch closure if the plug is not fully inserted. It also inhibits plug extraction and socket cover opening when the switch is engaged, enhancing operator safety.

This product maintains high ingress protection with IP67 and IP66 ratings, ensuring reliable operation in wet or dusty environments. It withstands impacts up to 6 Joules and successfully passes glow-wire testing up to 650 °C, highlighting its fire resistance capabilities.

Its dimensions are 136mm in length, 125mm in width, and 230mm in depth, allowing easy surface mounting. The socket performs well across a temperature range from -25 °C to +60 °C, ensuring dependable use in various industrial and commercial environments.

This Scame socket is ideal for industrial wiring installations requiring secure and switchable outlets with high protection and safety features. It finds applications in manufacturing, electrical distribution, and other heavy-duty industrial sectors.

This Industrial Interlock socket is constructed from durable polymer material ensuring high resistance to heat and chemicals. It features a red color-coded body with IP67 and IP66 ingress protection ratings for superior water and dust resistance.

The socket includes a mechanical interlock to prevent unsafe operation during plug insertion or removal. Dimensions of the socket are 136mm length, 125mm width, and 230mm depth for versatile industrial installation. Impact resistance is rated at 6 Joule, providing robustness against mechanical shocks.

Operates reliably within a temperature range from -25 °C to +60 °C and withstands glow-wire tests up to 650 °C. Designed to meet rigorous safety requirements for industrial and commercial electrical connection applications.
