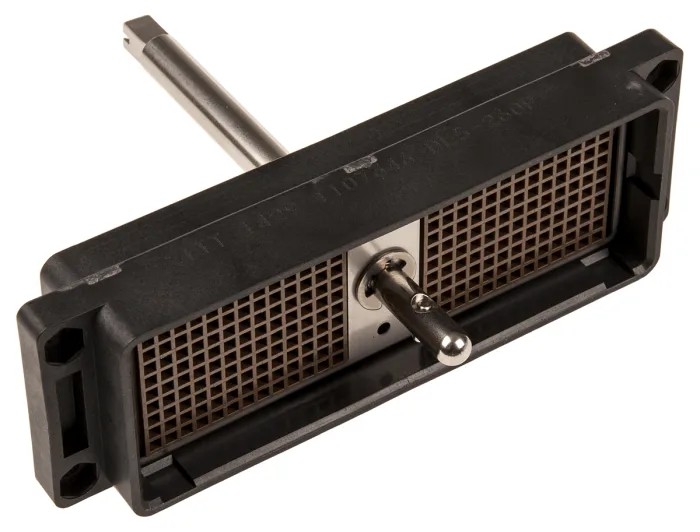

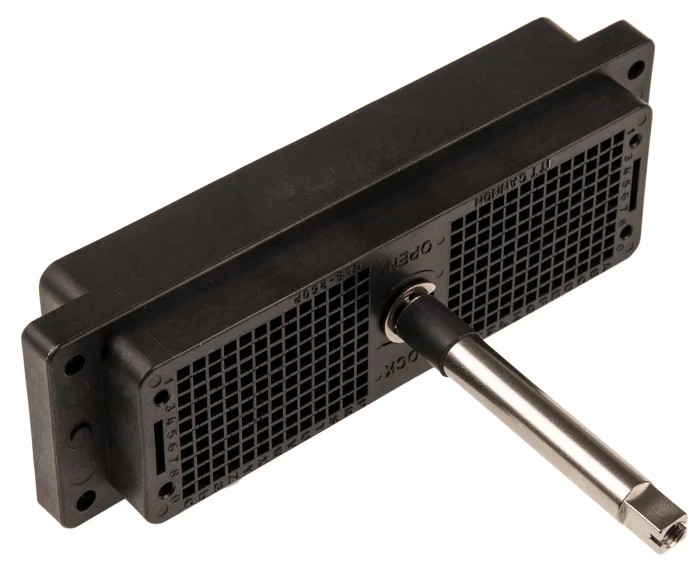

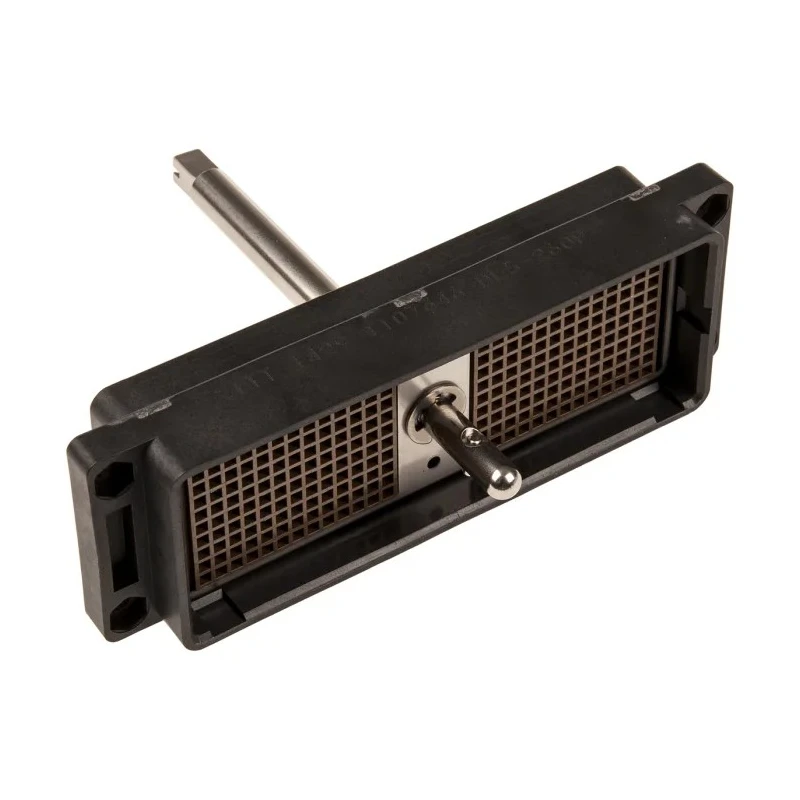

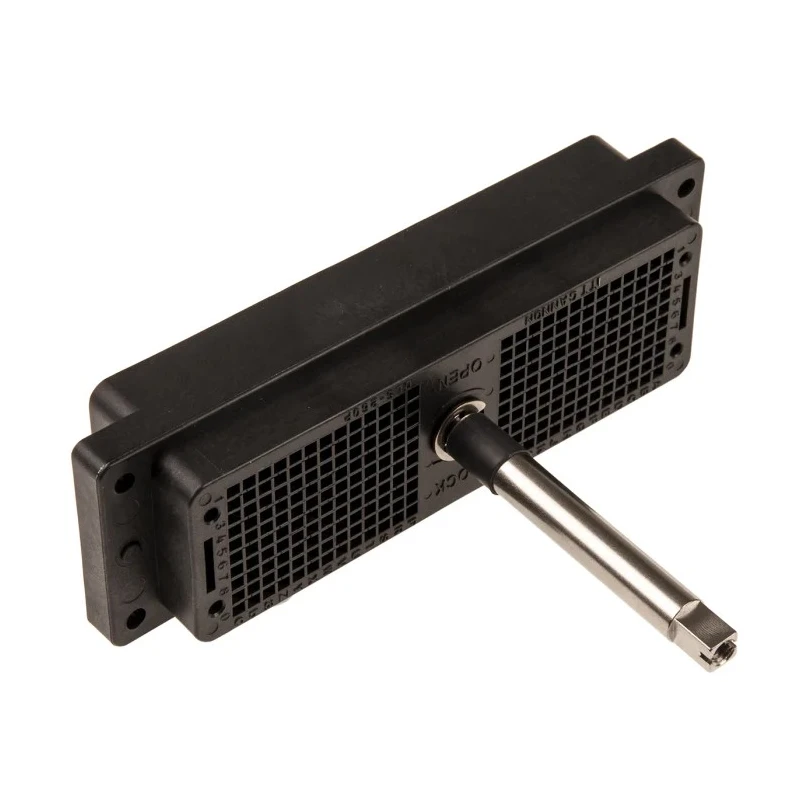

ITT Cannon DL 260 Way High Density Straight Panel Mount Male D-Sub Connector 1.2kV AC 5A 260 Contacts 111986-0014
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1.2kV ac |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 5A |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper Alloy |
| Series | DL |
| Mounting Hardware | Panel |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 260 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Male |
| Connector Gender | Male |
| ITT Cannon, DLM 2.54 mm Pitch ZIF Plug Body, Straight Male, 260 WayBrand | ITT Cannon |
Key Features
- High density 260 contact count designed for multi-wire power and signal applications.
- Zero insertion force with durable camshaft lock mechanism for quick mating.
- Thermoplastic housing ensures robust insulation and mechanical protection.
- Gold-plated beryllium copper alloy contacts provide excellent conductivity and corrosion resistance.
- Rated for operation between -55°C and 105°C temperature range.

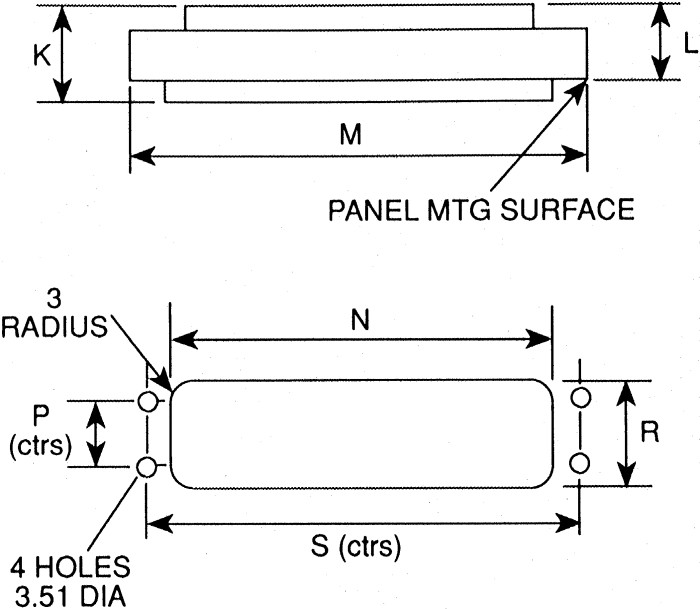

- Panel mount installation with mounting holes for backshell and polarising pillars.
- Termination type is crimp ensuring secure and reliable connection.
- Long mechanical life of 10,000 mating cycles for high performance durability.
Product Description
ITT Cannon 111986-0014 DL 260 Way Straight Panel Mount Male D-Sub Connector is a high density connector designed for demanding electrical and electronic applications. Featuring 260 gold-plated beryllium copper alloy contacts housed within a thermoplastic shell, this connector ensures reliable signal and power transmission with minimal insertion force.
The male connector is engineered for panel mounting and secured using back shells and polarising pillars to guarantee correct orientation and durable mechanical locking via a camshaft actuating handle. Rated for a current of 5A and a voltage of 1.2kV AC, it operates efficiently over an extensive temperature range from -55°C to 105°C, making it suitable for harsh environments.
It offers excellent longevity with a mechanical endurance of 10,000 mating cycles, making this connector ideal for use in computers, medical instrumentation, broadcast equipment, and avionics systems that require secure and high-performance connections.
High density 260 contacts support multi-wire power and signal needs. Zero insertion force design enables easy and effective mating. Durable thermoplastic housing provides mechanical and electrical insulation. Gold-plated beryllium copper contacts enhance conductivity and resistance to corrosion.
Wide operating temperature range suits demanding industrial environments. Panel mounting with provision for backshells and polarising for correct alignment. Crimp termination for secure electrical connections. Long life of 10,000 cycles ensures durability in repeated use applications.
Applications include computing, medical instrumentation, broadcasting, and avionics. Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrical safety and performance.
This ITT Cannon DL series connector provides a robust and sophisticated solution for high-density electrical connections in industrial and commercial applications. Browse available connectors and accessories at EnvMart for your electronics assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for operation at 1.2kV AC.
This model has a current rating of 5A.
It features a high density of 260 contacts.
It operates efficiently within a temperature range of -55°C to 105°C.
The contacts are made from gold-plated beryllium copper alloy, providing excellent conductivity and corrosion resistance.
It utilizes crimp termination for secure and reliable connections.
It is designed for panel mount installation with mounting holes for backshell and polarising pillars.
It has a mechanical life of 10,000 mating cycles.
It meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrical safety and performance.
The housing is made from thermoplastic, ensuring robust insulation and mechanical protection.
It is suitable for applications in computing, medical instrumentation, broadcasting, and avionics.
The connector is designed with a straight orientation.
