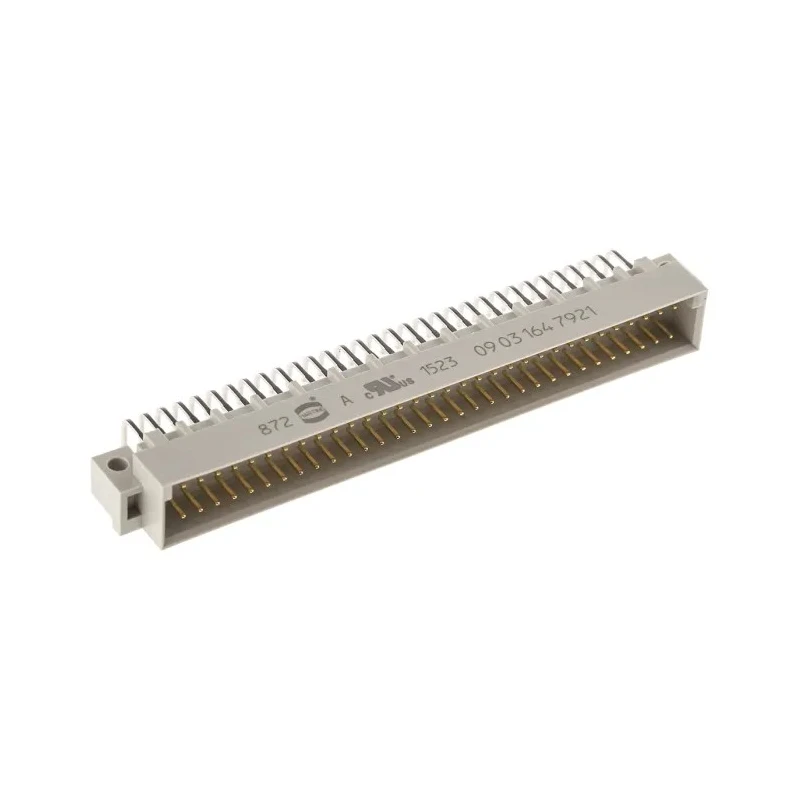

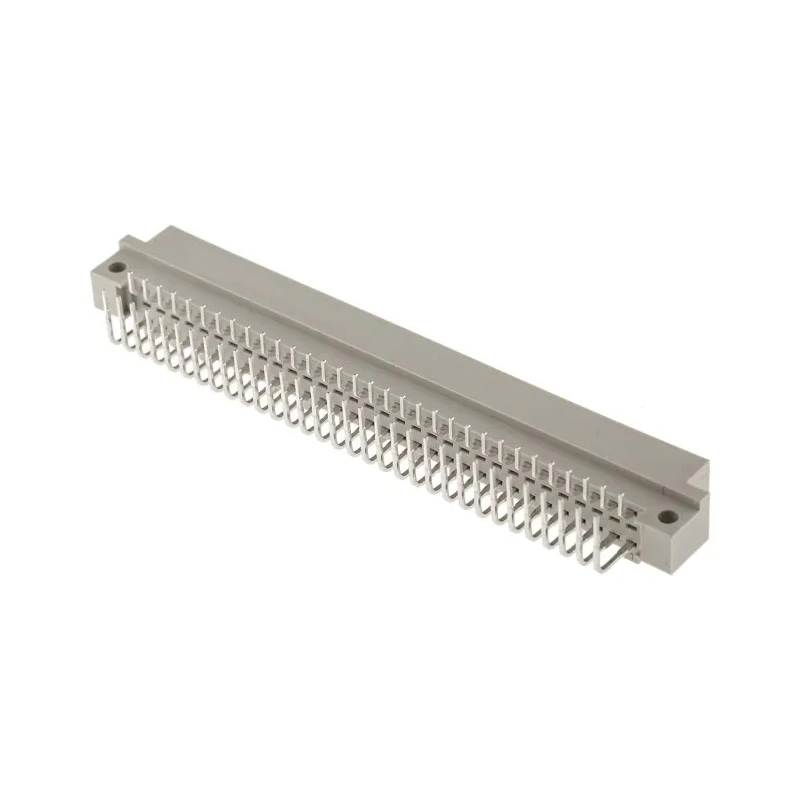

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole, Type C/3 Solder Class C3 2 Row Male Right Angle 09031647921

Free Delivery in India | Lowest Global Shipping Charges

HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole, Type C/3 Solder Class C3 2 Row Male Right Angle 09031647921

Name: HARTING DIN 41612 64 Way 2.54 mm Pitch Type Through Hole, Type C/3 Solder Class C3 2 Row Male Right Angle 09031647921
Brand: HARTING
SKU: 160496
Price: 20.22 USD
Availability: InStock



Category DIN 41612 Connectors Brand HARTING Condition New

Specifications

Country of Origin	Germany
Brand	HARTING
Orientation	Right Angle
Current	2A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/3
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	64
Contact Gender	Male
Connector Gender	Male
Maximum Contact Resistance	20mΩ
Row Loading	A/C

Key Features

This connector supports 64 gold-plated contacts arranged in 2 rows for reliable data transmission.
Features a through-hole mount type with a durable polybutylene terephthalate housing.
Operates efficiently within a temperature range of -55°C to 125°C.
Designed with copper alloy contacts and a maximum contact resistance of 20mΩ for high performance.
Class C3 connector type ensures solid mechanical and electrical connection in Eurocard racking systems.
Right angle orientation enables flexible PCB design and assembly layouts.
Suitable for industrial and electronic applications requiring dependable backplane and rack connections.

Product Description

HARTING 09031647921 DIN 41612 64 Way 2.54 mm Pitch Type Through Hole, Type C/3, Solder Class C3, 2 Row Male Right Angle Connector is engineered for demanding PCB backplane connection tasks in industrial and electronic systems.

Constructed with a robust polybutylene terephthalate housing and copper alloy contacts plated with gold over nickel, this connector guarantees durability and reliable signal integrity with a maximum contact resistance of 20mΩ.

The connector supports a current rating of 2A per contact, arranged in 64 contacts over two rows with a pitch of 2.54 mm. Its right-angle orientation aids in compact PCB layouts and improved assembly flexibility.

Operating temperature range from -55°C up to 125°C ensures suitability for harsh industrial environments. The connector is designed to comply with DIN 41612 standards for backplane and rack connectors widely used in electronics manufacturing, automation, and communication equipment.

Key features include a solder-type termination with through-hole mounting and a Class C3 contact mechanical and electrical class ensuring excellent mating cycles and connection strength. The connector's design permits mating to first positions at a1 and a31 for connectors supporting this feature.

This product is ideal for industrial electronics, telecommunications, automation systems, and control panels requiring robust backplane interconnection. The connector's durable materials and plating provide resistance to corrosion and extended operational life.

Designed for use in 19-inch Eurocard rack systems, compliant with DIN 41612 specifications. Country of Origin: Germany. Explore the complete range of DIN 41612 Connectors for your industrial and electronic assembly needs at EnvMart.
