Microchip Power Management Development Kit Reference Design MCP3905RD-PM1

Microchip MCP3905RD-PM1 Power Management Development Kit Reference Design is a high-precision energy meter platform ideal for industrial, laboratory, manufacturing, and commercial energy measurement applications. The design delivers an energy measurement error typically of 0.1% across a wide dynamic range of 1:500, meeting stringent accuracy requirements.

This reference design functions either as a standalone energy meter or as an analog front end for LCD microcontroller-based meter systems. Its compliance with electromagnetic compatibility (EMC) standards such as IEC62053 and legacy IEC standards IEC61036, IEC1046, and IEC687 ensures reliable performance in varied electrical environments.

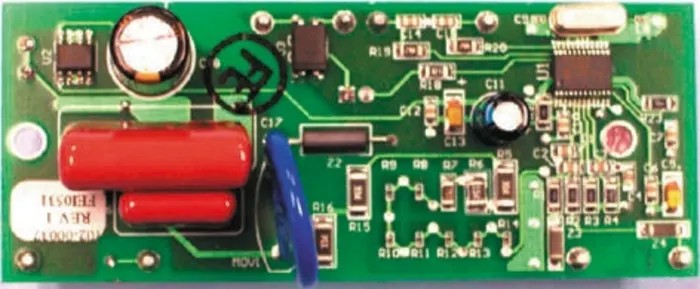

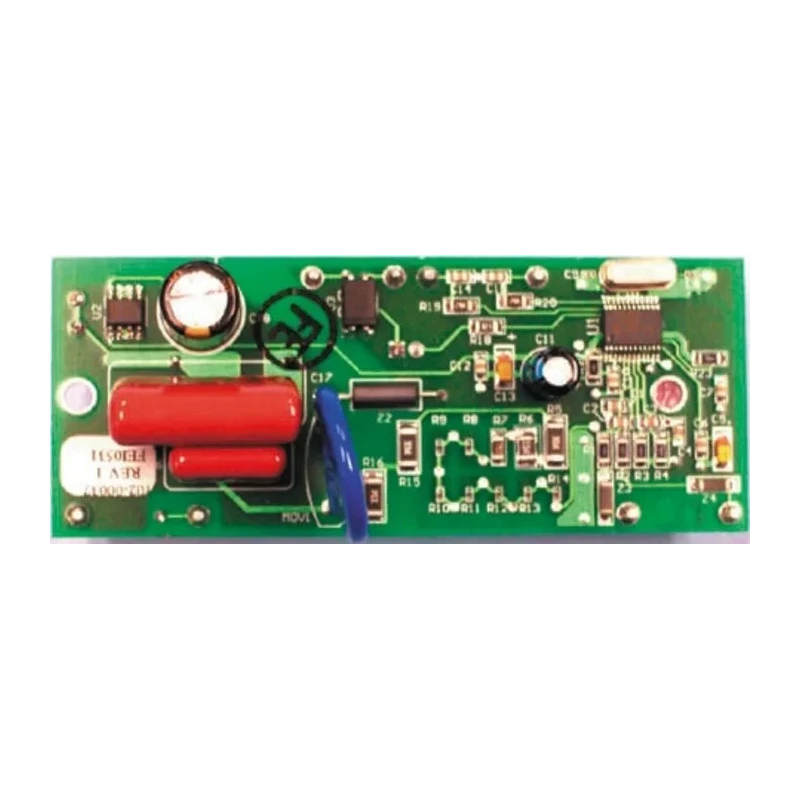

The kit includes a ready-to-use demonstration board with a single-chip energy meter. It features direct line connection capability without the need for transformers, on-board power supply circuitry, a resistive network, and output LED for meter calibration. Resistor shorts allow selection of gain and frequency, enhancing design flexibility.

Engineers and developers can utilize this reference design for power management development in motor control, robotics, and energy monitoring systems. The design aids in rapid prototyping and evaluation of the MCP3905 device for accurate energy measurement solutions.

Operates as standalone or analog front end energy meter. Typical energy measurement error of 0.1% over 1:500 dynamic range. EMC compliant per IEC62053 and legacy IEC standards. Includes on-board power supply and calibration resistive network.

Resistor shorts provide gain and frequency selection. Ready-to-use single-chip energy meter demonstration board.

This development kit is categorized under Power, Motor & Robotics Development Tools suitable for applications in industrial machines, test instruments, and embedded system energy management. Discover more development kits and Energy Meter solutions at EnvMart.
