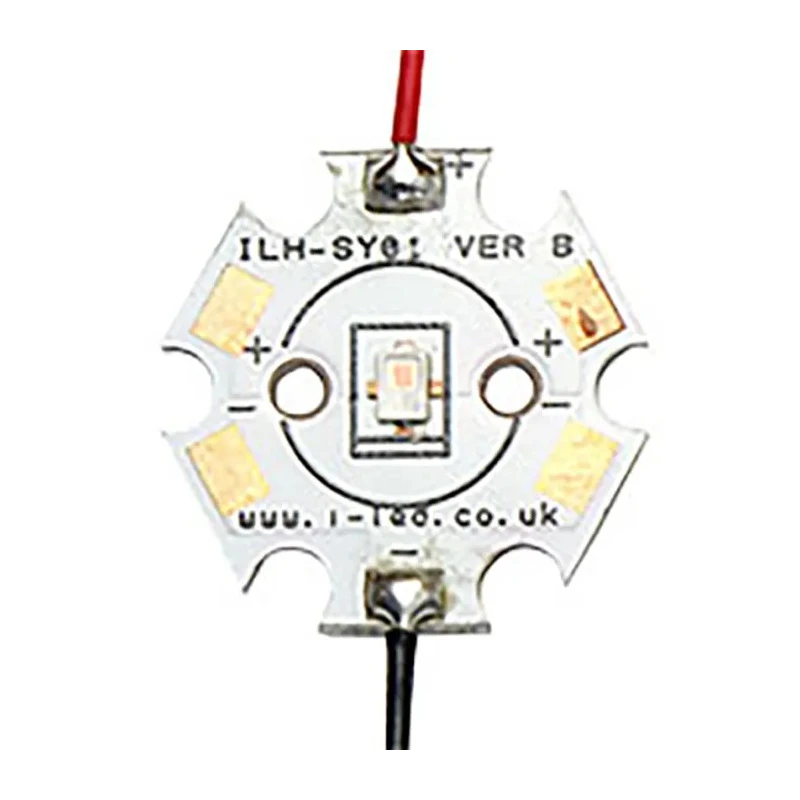

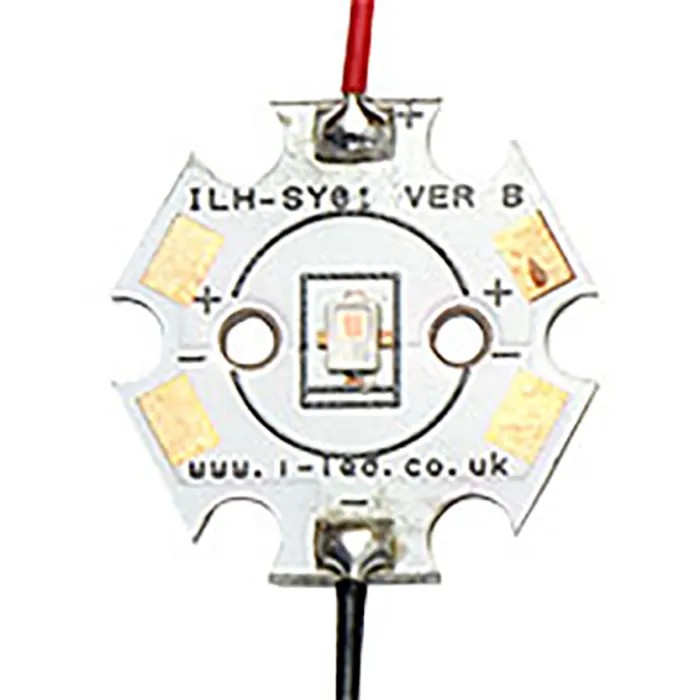

Intelligent LED Solutions LED Array 1-LED White 4000K Wire Lead Onboard Driver 2.07W ILH-SY01-WHWH-SC211-WIR200.

Free Delivery in India | Lowest Global Shipping Charges

Intelligent LED Solutions LED Array 1-LED White 4000K Wire Lead Onboard Driver 2.07W ILH-SY01-WHWH-SC211-WIR200.

Name: Intelligent LED Solutions LED Array 1-LED White 4000K Wire Lead Onboard Driver 2.07W ILH-SY01-WHWH-SC211-WIR200.
Brand: Intelligent LED Solutions
SKU: 159669
Price: 12.36 USD
Availability: InStock



Category LED Arrays Brand Intelligent LED Solutions Condition New

Specifications

Country of Origin	United Kingdom
Brand	Intelligent LED Solutions
Dimensions	20mm x 20mm x 2.2mm
Current	1A
Model	ILH-SY01-WHWH-SC211-WIR200.
Connection Type	Wire Lead
Output type	Constant Voltage
Outside diameter	20mm
Number Of Leds	1
Power Dissipation	2.07W
Standards/Approvals	RoHS Compliant
Colour Temperature	4000k
LED Colour	White
LED Voltage	2.75, 3.5V
Typical Luminous Flux	190lm

Key Features

The product features a single white LED with a colour temperature of 4000K.
It operates at a current of 1A and LED voltage of 2.75 to 3.5 volts.
The LED array has a typical luminous flux of 190 lumens and diameter of 20 mm.
Power dissipation is rated at 2.07 watts with constant voltage output type.
It complies with RoHS standards and includes secondary optics for improved light distribution.
The device comes with 200mm connecting wires and mounting holes compatible with M3 screws.
Designed for up to 50,000 hours of life at 70% brightness retention.
Applications include general lighting, automotive lighting, signalling, decorative lighting, and bicycle lighting.

Product Description

Intelligent LED Solutions ILH-SY01-WHWH-SC211-WIR200. LED Array 1-LED White 4000K with wire lead and onboard driver provides an efficient and durable lighting solution suitable for a wide range of applications in electronics and electrical industries.

This LED array features a single SYNIOS® P2720 LED with a radiation angle of 120°, offering a typical luminous flux of 190 lumens at 1A current. It operates within an LED voltage range of 2.75 to 3.5 volts and dissipates power at 2.07 watts under constant voltage output.

The product dimensions are compact at 20 mm diameter by 2.2 mm thickness, allowing easy integration into lighting systems. Mounting is facilitated by M3 screw holes. The secondary optics included enhance beam shaping for targeted illumination.

Manufactured in the United Kingdom, this LED array is RoHS compliant, meeting environmental and safety standards for electronic components.

Its expected lifetime is up to 50,000 hours at 70% original brightness, reliable for long-term installations in general lighting, exterior automotive lighting, daytime running lights, working lamps, bicycle lights, backup lights, signalling, and decorative lighting.

The product includes onboard driver circuitry for stable current management. The LED array can be linked to create longer chains for larger installations. Secondary lens and suitable heatsinks are available separately to optimize performance.

The connection type is via wire leads with 200 mm length for flexible installation. The compact size and mounting holes facilitate easy assembly and compatibility with various fixtures.

Explore the Intelligent LED Solutions category on EnvMart for compatible power supplies, lenses, heatsinks, and additional LED array products to meet diverse lighting requirements.
