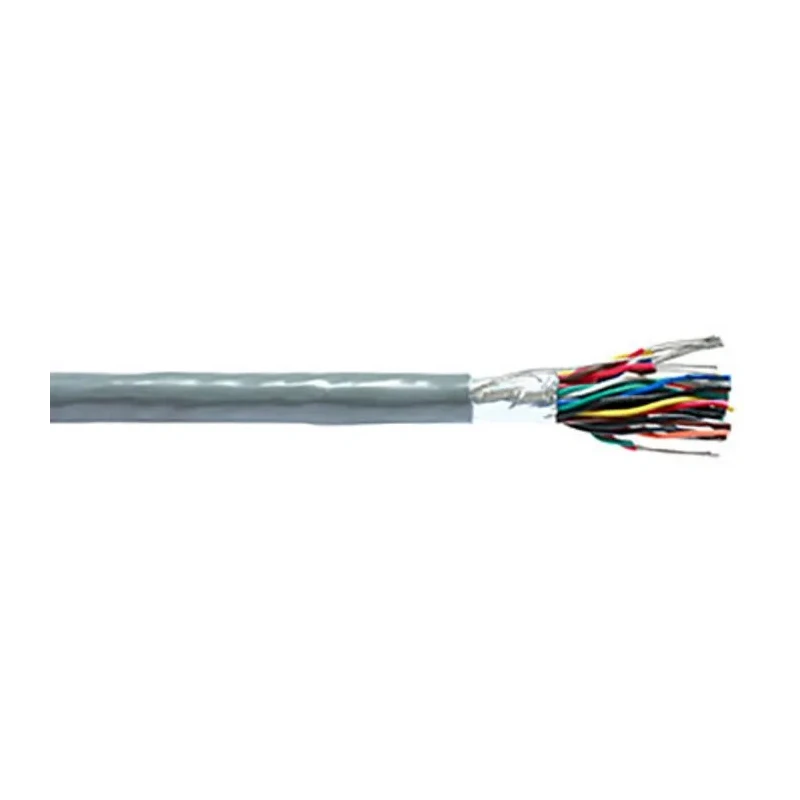

Belden 9509 Series Data Cable 9 Pairs 18 Cores 0.2 mm² 152 m Silver Polyvinyl Chloride Jacket 300V 7 Strand Tin 9509.01152

Belden 9509.01152 is a high-quality Data Cable from the 9509 series designed for reliable multipair data transmission. It consists of 9 pairs and 18 cores, each conductor formed from 7 strands of tinned copper wire sized at 32 AWG. The cable features a silver polyvinyl chloride (PVC) jacket that delivers flame retardant properties while operating safely within a temperature range from -30°C to 80°C. This cable is rated for 300 volts, making it suitable for a wide range of industrial, laboratory, and instrumentation uses.

The conductors are twisted into pairs to reduce electromagnetic interference and crosstalk, enhancing signal integrity. Additionally, Belden’s patented Beldfoil® shield technology wraps the cable with a lightweight yet robust aluminum/polyester foil, providing complete shielding and resisting external electromagnetic disruptions. This construction ensures optimal performance in demanding environments.

Measuring 8.48 mm in outside diameter, the cable balances flexibility and durability. It is ideal for use in computer networking, data acquisition systems, and instrumentation wiring where high data integrity and durability are required. The silver jacket gives it corrosion resistance and a neat professional appearance for easy identification during installation.

Manufactured in the Netherlands, this cable meets Euroclass Eca fire safety standards, suitable for installations requiring certified flame retardant cables. Belden’s century-long expertise assures industry users of dependable electrical performance and longevity in their systems.

Applications include industrial control, computer and telecommunications wiring, and instrumentation cables in manufacturing and process control systems. The robust shielding and stranded copper conductors provide excellent noise immunity and signal fidelity across medium cable runs.

Contains 9 twisted pairs totaling 18 cores, ideal for high-performance data transmission. Copper conductors are stranded with 7 strands of 32 AWG size, providing flexibility and optimal conductivity. Constructed with a flame retardant polyvinyl chloride jacket resisting temperatures from -30°C to 80°C.

Operates at a voltage rating of 300V suitable for various industrial and instrumentation applications. Equipped with patented Beldfoil® shield technology offering 100% coverage to prevent electromagnetic interference. Overall cable diameter is 8.48 mm maintaining a compact but robust structure.

Designed for computer networking, instrumentation, and other electronic installations requiring low signal loss. Complies with Euroclass Eca fire behavior standard ensuring safety in building installations. Explore the full range of Belden cables and industrial wiring solutions available through EnvMart for your electrical system needs.
