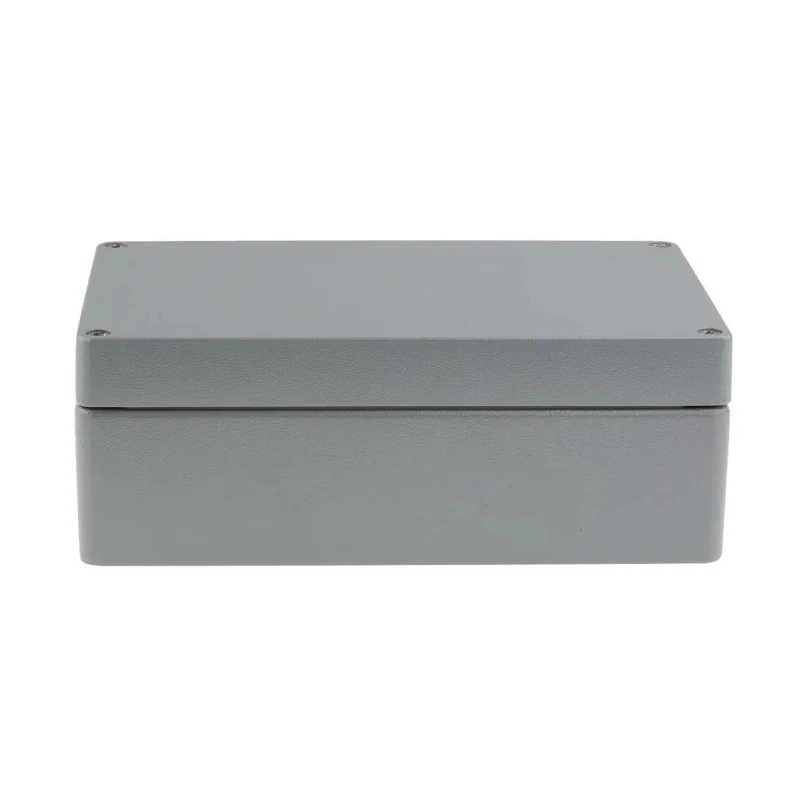

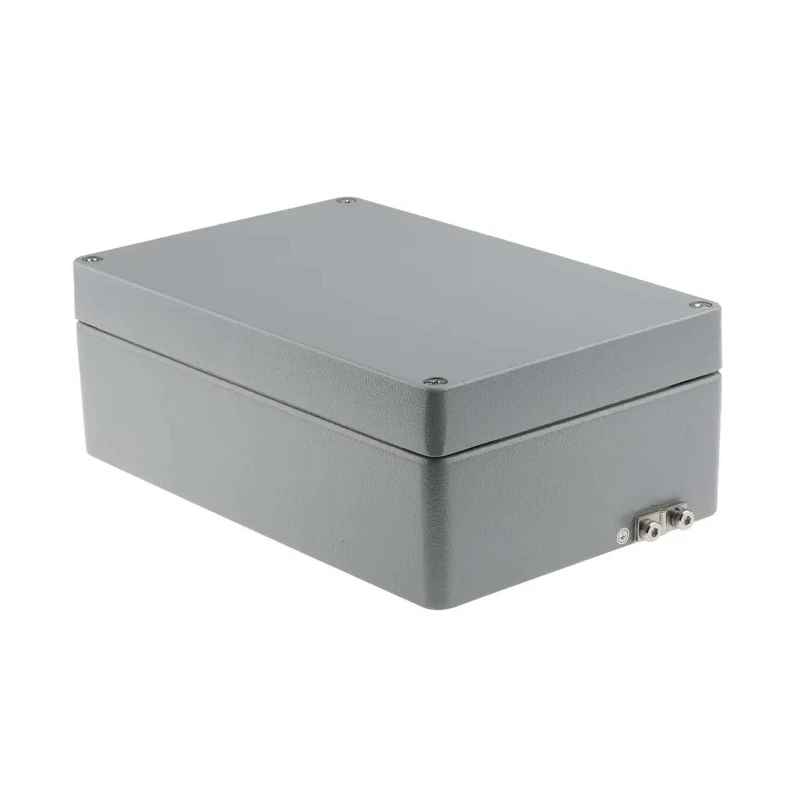

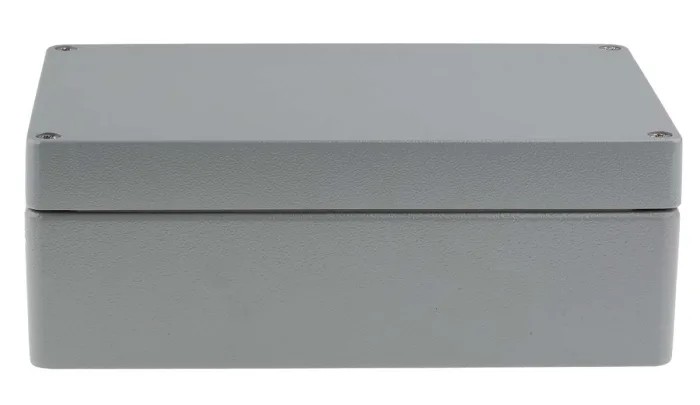

RS PRO Aluminium Enclosure IP66 IK09 100 mm x 280 mm x 180 mm 190-1877

RS PRO 190-1877 is a precision-engineered aluminium enclosure designed for industrial applications requiring high ingress and impact protection. This enclosure features a dimension of 100 mm height, 280 mm length, and 180 mm width, optimized for secure housing of electrical components and devices.

Made from AISi 12 aluminium in accordance with DIN EN 1706 standards, the enclosure offers robust mechanical strength and resistance to harsh environmental conditions. The painted finish assists in maintaining cleanliness and resisting dust accumulation during prolonged use.

With an IP66 rating, this enclosure ensures total protection against dust and limited ingress of water, making it suitable for outdoor and challenging indoor environments. The IK09 shock rating further provides excellent resistance to mechanical impacts, safeguarding sensitive electronics.

Key features include stainless steel captive lid screws which secure the enclosure while enabling easy access, and a silicone gasket seal that guarantees durable and reliable waterproofing. The enclosure supports service temperatures from -60°C up to 140°C, catering to a broad spectrum of industrial temperature requirements.

Certified to ATEX and IECEx standards, it is compliant for use in explosive atmospheres, making it ideal for industries such as process control, mining, automation, and chemical manufacturing.

High-strength AISi 12 aluminium body compliant with DIN EN 1706 standards. Painted surface finish facilitating easy cleaning and dust resistance. Protection class IP66 guaranteeing dust-tightness and water resistance. Durable IK09 shock rating ensuring high impact protection.

Equipped with stainless steel captive lid screws for secure fastening. Silicone gasket seal for effective waterproofing. Wide operating temperature range from -60°C to 140°C. ATEX and IECEx approved for hazardous and explosive atmospheres.

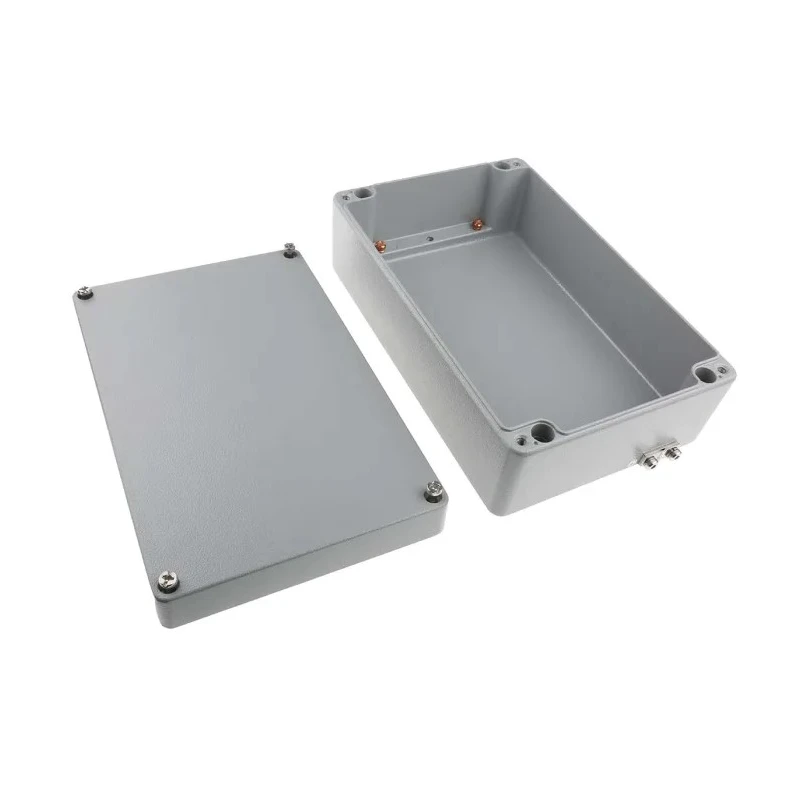

Includes internal mounting plate for flexible installation options. RoHS compliant and manufactured in India assuring quality and environmental standards.

This aluminium enclosure provides versatile protection solutions for electronic and electrical equipment in industrial, laboratory, automation, mining, and water treatment sectors. Its rugged construction and certified protection make it suitable for controlling electrical components in aggressive chemical, food industry environments and manufacturing settings.
