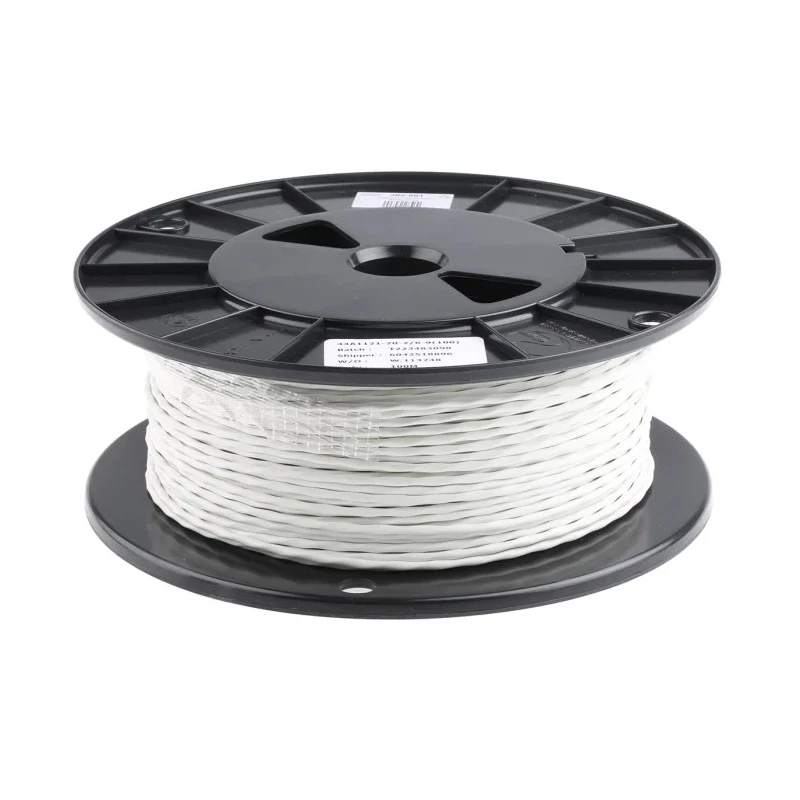

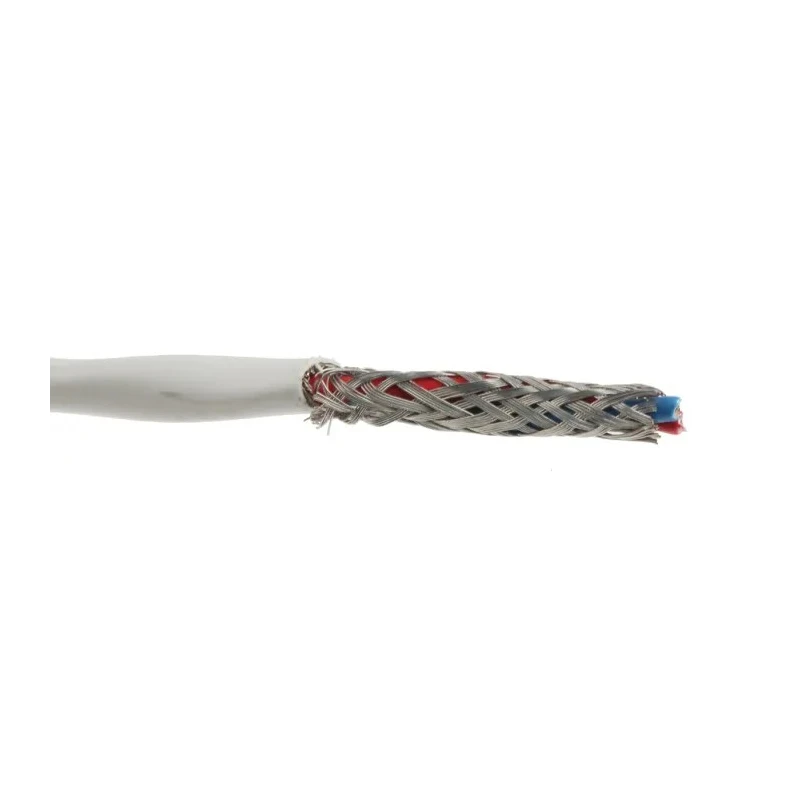

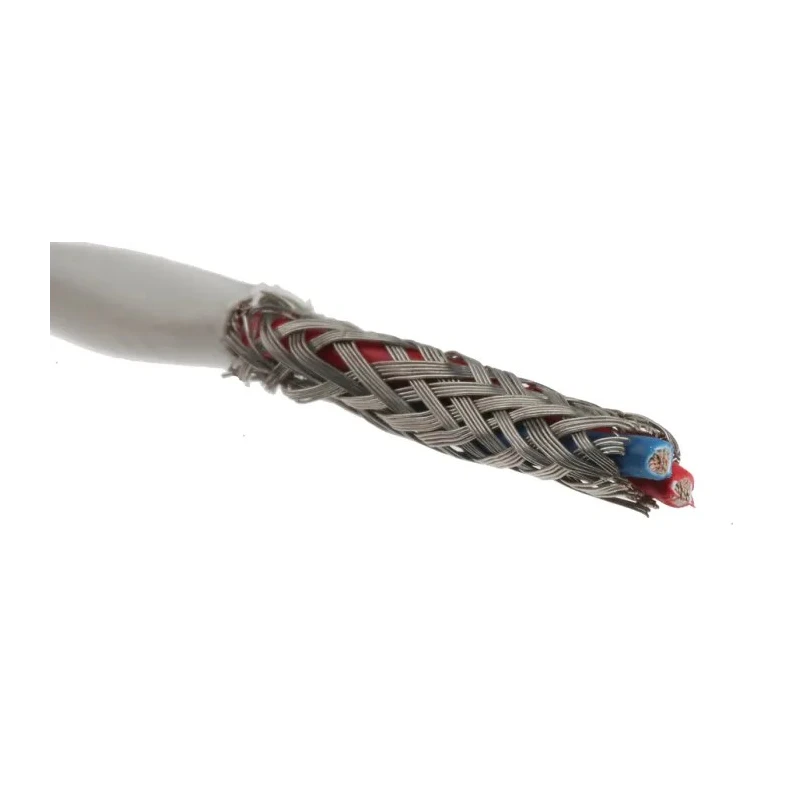

TE Connectivity SPEC 44 Series Data Cable 1 Pairs 2 Cores 100m White Sheath Polyvinyl Fluoride 44A1121-20-2/6-9
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Model | 44A1121-20-2/6-9 |
| Cable Length | 100m |
| Series | SPEC 44 |
| Outside diameter | 3.76mm |
| Maximum Operating Temperature | 150°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -65°C |
| Jacket Material | Polyvinyl Fluoride |
| Standards/Approvals | ASQ, SAE, NEMA, ASTM |
| Jacket Colour | White |
| Fire Behaviour | Flame Retardant, Self-Extinguishing, Low Smoke Density |
| Number of Strands | 19 |
| Core Strands | 19 x 0.2mm |
| Size of Strands | 0.2mm |
| Number of Pairs | 1 |
| Nexans SMA Series Data Cable, 2 Cores, 0.6 mm², Unscreened, 20 AWG, 100mBrand | Nexans |
Key Features
- This data cable features durable Polyvinyl Fluoride jacket material for extended operating temperature range.
- The cable length is 100 meters with an outside diameter of 3.76 mm.
- It has 19 strands per core made of tin copper wire and strand size of 0.2 mm.
- The cable supports a voltage rating of 600 V and withstands temperatures between -65°C and 150°C.
- The construction is flame retardant, self-extinguishing, and generates low smoke.
- Standards compliance includes ASQ, SAE, NEMA, and ASTM for industrial and military use.
- Applications include commercial, military electronics, avionics, satellites, aircraft, helicopters, ships, railways, military ground systems, and oil industries.
Product Description
TE Connectivity 44A1121-20-2/6-9 SPEC 44 Series Data Cable is a mechanically tough, lightweight, and compact cable designed to perform reliably in harsh environmental conditions. It features a dual wall construction with a white Polyvinyl Fluoride jacket that provides excellent chemical resistance, electrical arc tracking resistance, and high flame retardancy.
The cable has a 100 meter length with 1 pair and 2 cores, each core composed of 19 strands of 0.2 mm tin copper wire, providing flexibility and durability. The outer diameter is 3.76 mm, making it suitable for installations requiring compact wiring solutions.
Designed for a voltage rating of 600 V, this cable functions within a wide temperature range from -65°C minimum operating temperature to a maximum of 150°C. Its fire behaviour rating includes flame retardant, self-extinguishing properties and low smoke density, ensuring safety in industrial and military environments.
Certified to meet standards such as ASQ, SAE, NEMA, and ASTM, this SPEC 44 series cable is used prominently in commercial and military electronics, avionics, satellites, aircraft, helicopters, ships, railways, military ground systems, and oil industries.
This cable’s polyvinyl fluoride jacket provides chemical and arc tracking resistance. The 19-stranded tin copper conductors offer enhanced conductivity and flexibility. Wide temperature tolerance ensures operation in extreme environments.
Meets multiple stringent industrial and military standards. Compact size and lightweight design facilitate easy installation. Flame retardant and low smoke density characteristics enhance safety. Trusted choice for high-reliability applications in aerospace and military sectors.
This product's robust specifications make it a preferred cable for industrial applications demanding reliability and safety under challenging conditions. Explore more Data Cables at EnvMart to match your precise requirements in electrical power and industrial cabling.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this data cable is 600 V.
This model can operate at a maximum temperature of 150°C.
The cable length is 100 meters.
The outside diameter of this cable is 3.76 mm.
The cable features a Polyvinyl Fluoride jacket and conductors made of tin copper wire.
This cable has 2 cores.
The cable is flame retardant, self-extinguishing, and has low smoke density.
This cable complies with ASQ, SAE, NEMA, and ASTM standards.
The minimum operating temperature is -65°C.
Each core consists of 19 strands of 0.2 mm tin copper wire.
This cable is suitable for applications in commercial and military electronics, avionics, satellites, aircraft, and more.
The jacket material provides excellent chemical resistance and electrical arc tracking resistance.
