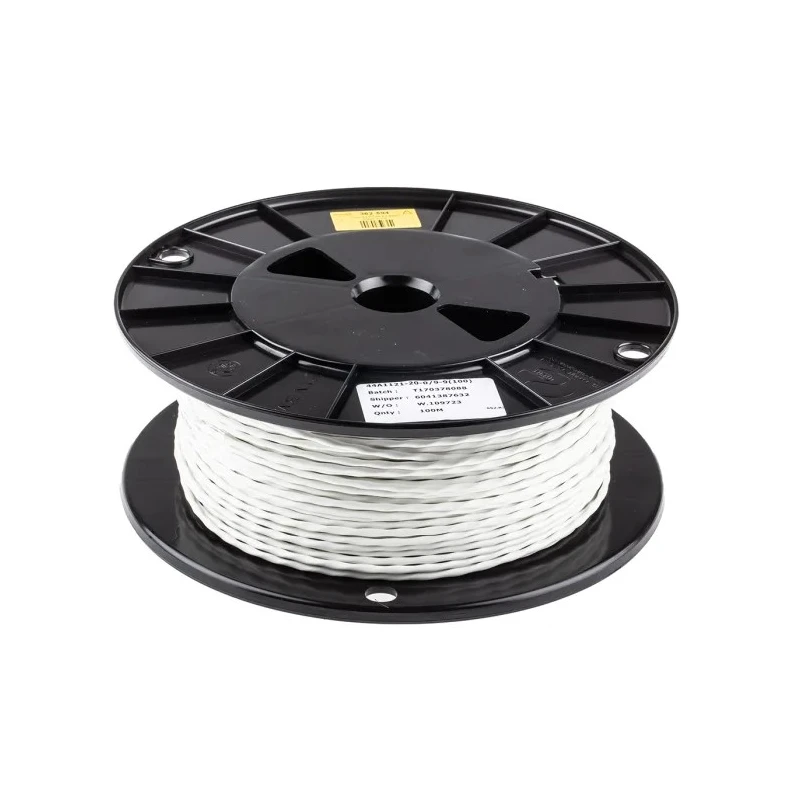

TE Connectivity SPEC 44 Series Data Cable 1 Pairs 2 Cores 100 m White Sheath Polyvinyl Fluoride 44A1121-20-0/9-9

TE Connectivity 44A1121-20-0/9-9 SPEC 44 Series Data Cable features a robust design with a white polyvinyl fluoride sheath, providing exceptional mechanical toughness and environmental resistance. This data cable contains 1 pair of twisted wires with 2 cores, optimized for reliable high-performance signal transmission over a length of 100 meters.

The cable has an outside diameter of 3.76 mm, combining compactness with efficient electrical properties. It operates safely within a temperature range from -65°C to 150°C, suitable for extreme environmental conditions found in industrial, military, and aerospace applications. The jacket material enhances resistance to chemicals and electrical arc tracking, while the low smoke density, flame retardant, and self-extinguishing fire behavior bolster safety in critical installations.

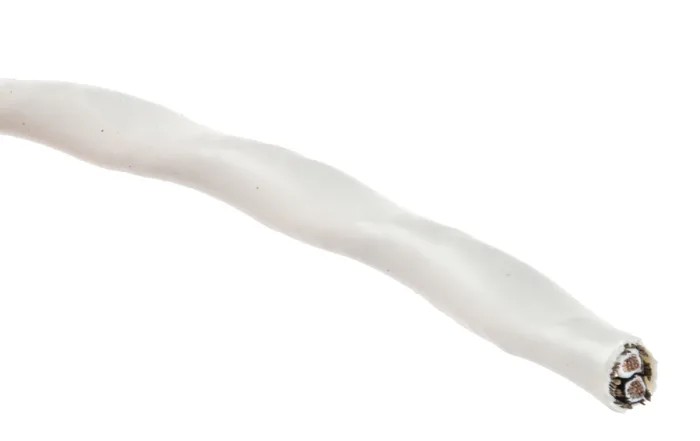

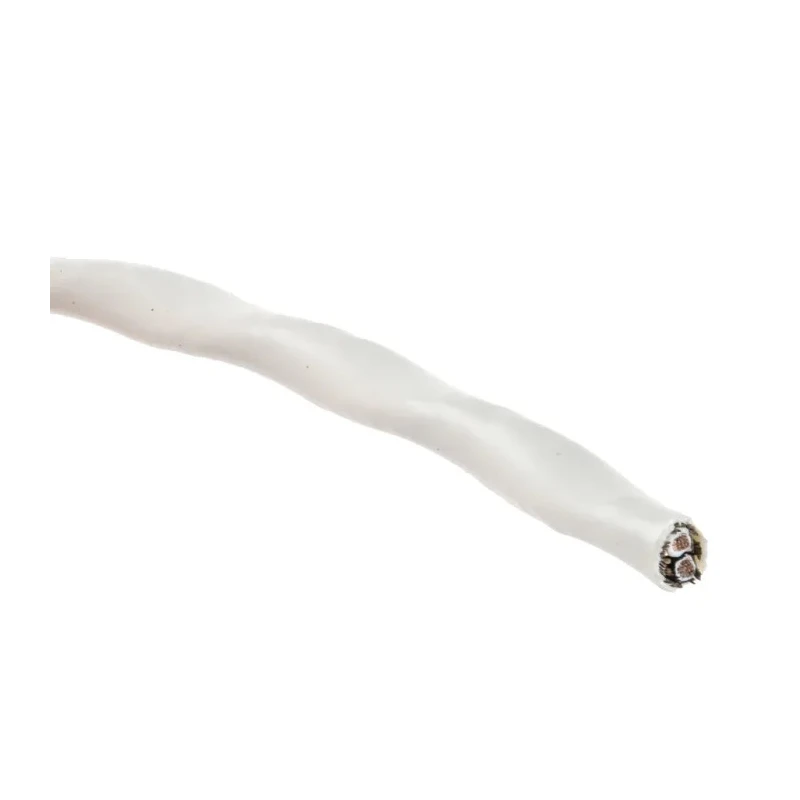

The cable’s conductor is composed of 19 strands of tin-plated copper wire, each strand having a diameter of 0.2 mm, ensuring flexibility and reliable conductivity. It carries a voltage rating of 600 V and conforms to stringent standards including ASTM, NEMA, SAE, and ASQ. The SPEC 44 series is widely used across commercial, military electronics, avionics, satellites, aircraft, helicopters, ships, railways, military ground systems, and oil industries where dependable performance is essential.

This product is crafted for environments demanding stable electrical properties and physical durability. It features dual-wall construction that maintains cable integrity under mechanical stress. Its small size and lightweight nature facilitate easy installation and handling.

Low smoke and corrosive gas emissions comply with safety regulations for enclosed spaces. The cable is resistant to a broad range of chemicals and electrical arc tracking hazards. Highly flame retardant properties enhance safety in fire-prone environments.

Compatible with Defence Standard 61-12 Part 18 Type 1 (Maintenance Wire) and Part 26 (Screened and Jacketed) requirements.

Ideal for industrial, laboratory, commercial, military, and telecommunications sectors, this Data Cable provides reliable connectivity and robustness. The white polyvinyl fluoride sheath ensures longevity and protection against harsh operating conditions. Explore more high-quality wire and cable solutions in the Electronics & Electricals category at EnvMart.
