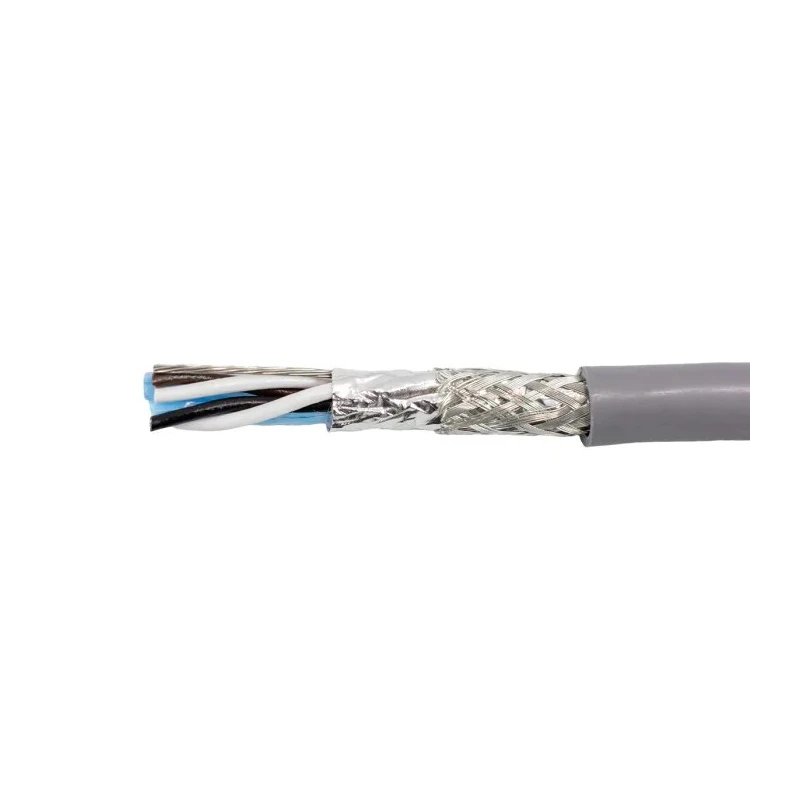

Alpha Wire Alpha Essentials Communication & Control Series Data Cable 3 Pairs 6 Cores 0.23 mm² 305 m 300V Grey 6363 SL001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.23 mm² |
| Model | 6363 SL001 |
| Cable Length | 305m |
| Series | Alpha Essentials Communication & Control |
| Outside diameter | 6.6mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | UL, CE, CSA |
| Jacket Colour | Grey |
| Fire Behaviour | Flammability Test: VW-1 |
| Number of Strands | 7 |
| Core Strands | 7 x 32AWG |
| Size of Strands | 32AWG |
| Number of Pairs | 3 |
| Fire BehaviourFlammability Test | VW-1 |
| Flammability Test | VW-1 |
| Audio systems | speakers, microphones, intercoms |
| Security systems | alarms, cameras, sensors |
Key Features
- Constructed with tin copper wire conductors to ensure high conductivity.
- Features a durable polyvinyl chloride (PVC) grey jacket for mechanical protection and flexibility.
- Complies with UL, CE, and CSA standards for safety and performance.
- Operates reliably between -20°C to 80°C temperature range.
- Outer diameter of 6.6 mm for easy installation in various environments.
- Fire behavior tested with VW-1 flammability rating for safety compliance.
- Optimized for EMI-resistant communication over distances in industrial setups.
- Applications include audio systems, data transmission (RS-232, 422, 485), security and control systems.
Product Description
Alpha Wire 6363 SL001 Alpha Essentials Communication & Control Series Data Cable is a premium quality communication and control cable designed to support robust industrial and commercial data transmission needs. This 3-pair, 6-core cable features a 0.23 mm² cross-sectional area per conductor and extends up to 305 meters, making it ideal for long-distance wiring.
The cable conductors are made from tin copper wire, combining excellent electrical conductivity with corrosion resistance. Each core consists of 7 strands of 32 AWG wire to provide flexibility and durable performance.
Protected by a grey polyvinyl chloride (PVC) jacket, the cable offers mechanical protection while maintaining flexibility for various installation scenarios. Rated for 300 volts, this cable complies with key international standards including UL, CE, and CSA, guaranteeing reliability and safety in demanding environments.
The operating temperature range of -20°C to 80°C ensures stable function in diverse climatic conditions, while the VW-1 flammability test rating confirms enhanced fire safety suitable for industrial applications.
This series cable is engineered to mitigate electromagnetic interference, making it suitable for sensitive audio systems, broadcast and studio equipment, CAD/CAM systems, and various data transmission protocols such as RS-232, RS-422, and RS-485.
It also supports security and instrumentation systems including alarms, cameras, and sensors, as well as control systems and point-of-sale terminals, providing versatile installation options in commercial and industrial settings.
Constructed with tin copper wire conductors ensuring excellent conductivity. Features a durable grey PVC jacket for mechanical protection and flexibility. Rated for 300V with compliance to UL, CE, and CSA standards. Wide operating temperature range from -20°C to 80°C.
VW-1 flammability rating for enhanced safety. Optimized for EMI performance in communication and control. Suitable for audio, broadcast, data transmission, and security systems. Long cable length of 305 meters ideal for industrial wiring needs.
Explore more high-performance cables in the EnvMart Data Cable category for your industrial and commercial wiring requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this cable is 80°C.
This model is rated for 300 volts.
The cable length is 305 meters.
The outer diameter of the cable is 6.6 mm.
The conductors are made from tin copper wire, and the jacket is constructed from polyvinyl chloride (PVC).
It complies with UL, CE, and CSA standards for safety and performance.
This model features 6 cores.
The cable has a VW-1 flammability rating, indicating enhanced fire safety.
It is suitable for audio systems, data transmission protocols (RS-232, RS-422, RS-485), security systems, and control systems.
Each conductor has a cross-sectional area of 0.23 mm².
This data cable contains 3 pairs of conductors.
The minimum operating temperature is -20°C.
