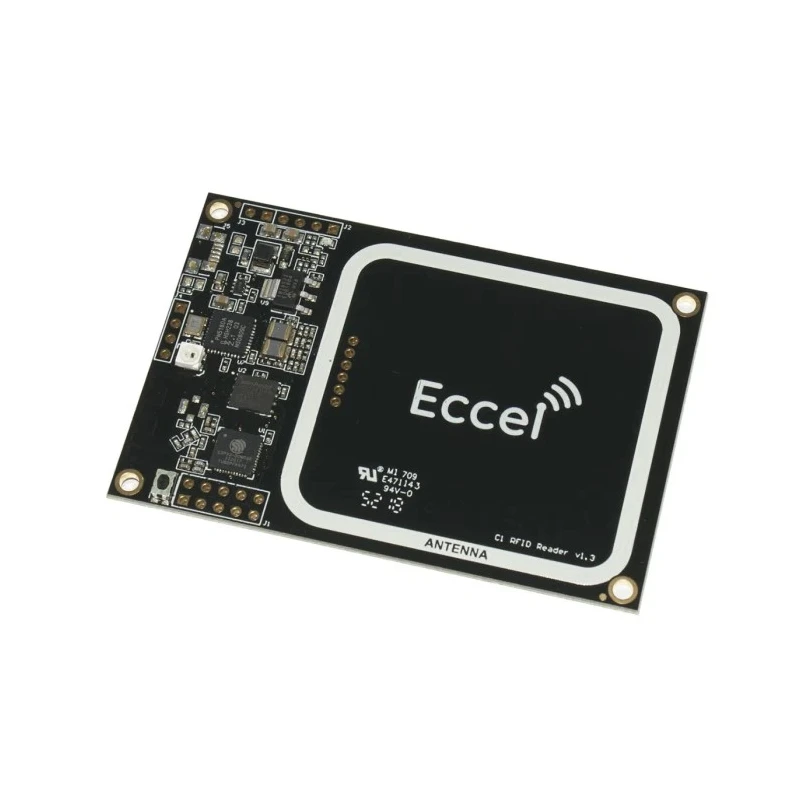

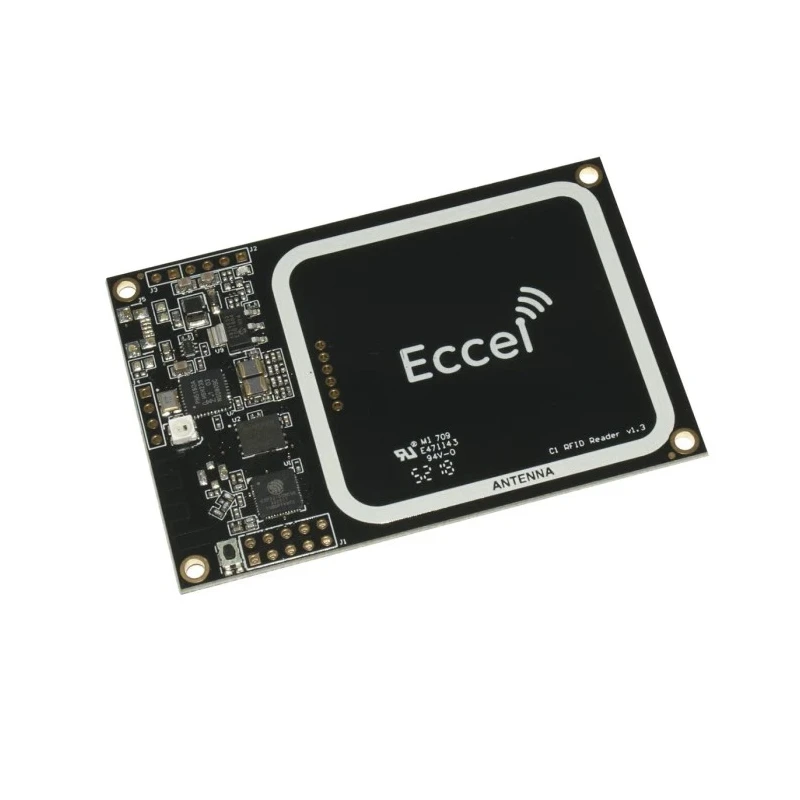

Eccel Technology Ltd RFID Reader 2.4 GHz UART Interface 3-5.5 V Pepper-C1-UART
Specifications
| Country of Origin | Poland |
|---|---|
| Frequency | 2.4GHz |
| Brand | Eccel Technology Ltd |
| Height | 4mm |
| Length | 75mm |
| Model | Pepper-C1-UART |
| Width | 50mm |
| Mount Type | Panel |
| Series | Pepper Wireless C1 |
| Maximum Operating Temperature | 85°C |
| Sub Type | RF Module |
| Minimum Operating Temperature | -40°C |
| Component Type | Reader |
| Interface Type | UART |
| Standards/Approvals | UKCA, CE (RED), FCC, PSE, ISED, RoHS |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Maximum RF Data Rate | 921600bps |
Key Features
- Supports full RFID/NFC read/write operation with UART interface.
- Compatible with MIFARE Classic, ICODE, MIFARE Ultralight, DESFire EV1/EV2, and MIFARE Plus series.
- Equipped with integral antenna, LED for tag indication, mounting holes, and plated connection holes.
- Operates in host connected or standalone mode with wireless capabilities.
- Includes Wi-Fi interface with WEB configuration, TCP sockets, WebSockets, and MQTT client support.
- Features simple binary protocol for commands over UART and network protocols.
- Wide operating temperature range from -40°C to 85°C for industrial environments.
- Complies with UKCA, CE (RED), FCC, PSE, ISED, and RoHS standards.
Product Description
Eccel Technology Ltd Pepper-C1-UART RFID Reader is a powerful and low-cost 2.4 GHz RF module with UART interface designed for versatile RFID and NFC applications. Operating at supply voltages from 3 V up to 5.5 V, this reader supports a wide range of MIFARE and ICODE cards, making it suitable for industrial, commercial, and laboratory RFID implementations.
The Pepper-C1-UART integrates an internal antenna along with an LED indicator for tag presence, mounting holes, and plated connection points providing ease of installation and robust connectivity. It supports both host-connected and stand-alone operation modes, enabling flexible use in access control, asset tracking, and wireless communication implementations.
The device incorporates built-in Wi-Fi with a WEB interface to facilitate configuration of protocols, pooling modes, and networking options. It can operate as a Wi-Fi client or an access point, providing TCP socket and WebSocket communication, along with MQTT client support to publish UID and tag type in JSON format. Firmware upgrades are freely available via online download to ensure long-term usability.
Designed to withstand industrial environments, the module operates reliably in temperatures ranging from -40°C to 85°C and meets prominent global certifications including UKCA, CE (RED), FCC, PSE, ISED, and RoHS standards. The compact form factor measures 75 mm in length, 50 mm in width, and 4 mm in height, facilitating integration into varied equipment enclosures.
This RFID reader is manufactured in Poland, giving it a high standard of quality control and performance for deployment in industrial automation, supply chain management, electronic access systems, and other RFID/NFC communication needs.
Supports UART interface communication at speeds up to 921600 bps. Compatible with MIFARE Classic 1K/4K, Ultralight, DESFire EV1/EV2, and MIFARE Plus card types. Equipped with integrated antenna and LED tag indication for operational feedback.
Flexible mount type as panel mount for easy installation. Wide supply voltage range ensures compatibility in diverse electrical systems. Wi-Fi module supports configuration via web interface and network protocols. Robust operating temperature suitable for harsh environments.
Conforms to multiple international standards ensuring regulatory compliance. Compact and lightweight module suitable for embedded system integration. Explore a broad range of RFID Readers and modules available at EnvMart for advanced wireless device implementations and IoT applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at supply voltages ranging from 3 V to 5.5 V.
It is compatible with MIFARE Classic 1K/4K, Ultralight, DESFire EV1/EV2, and MIFARE Plus card types.
The maximum RF data rate supported is 921600 bps.
It measures 75 mm in length, 50 mm in width, and 4 mm in height.
The RFID reader operates reliably in temperatures ranging from -40°C to 85°C.
This unit supports panel mounting for easy installation.
It utilizes a UART interface for communication.
It complies with UKCA, CE (RED), FCC, PSE, ISED, and RoHS standards.
Yes, it includes a built-in Wi-Fi interface for configuration and communication.
It is equipped with integral mounting holes and plated connection points for robust connectivity.
Yes, it can operate in both host-connected and standalone modes.
This model is manufactured in Poland.
