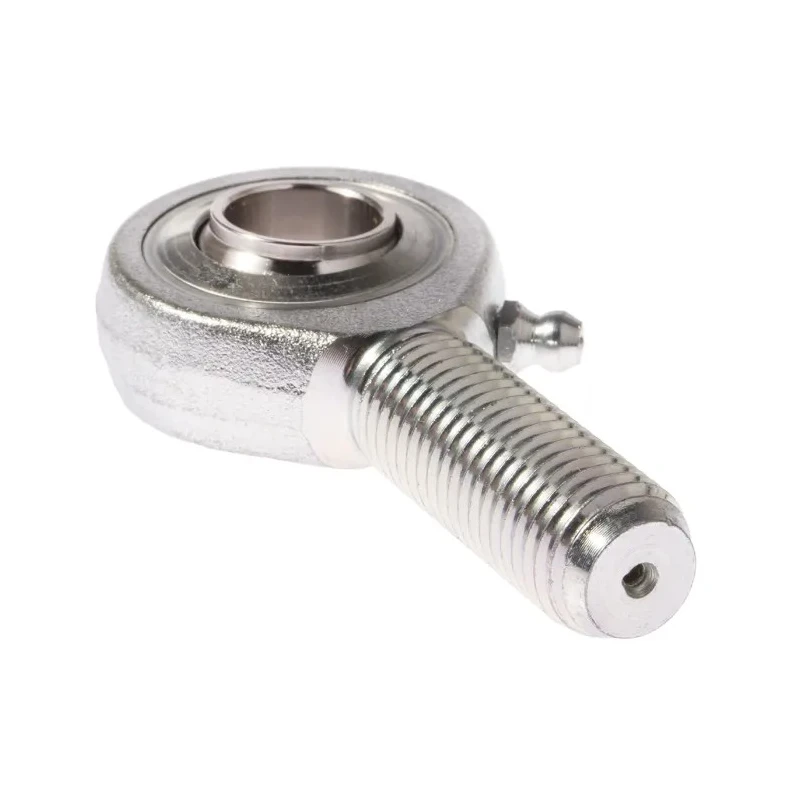

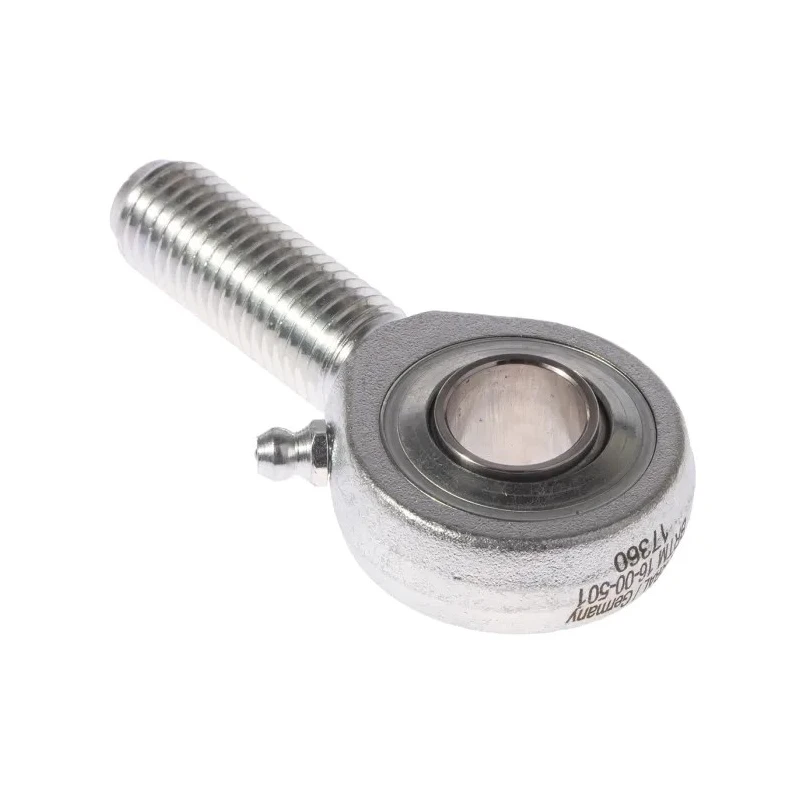

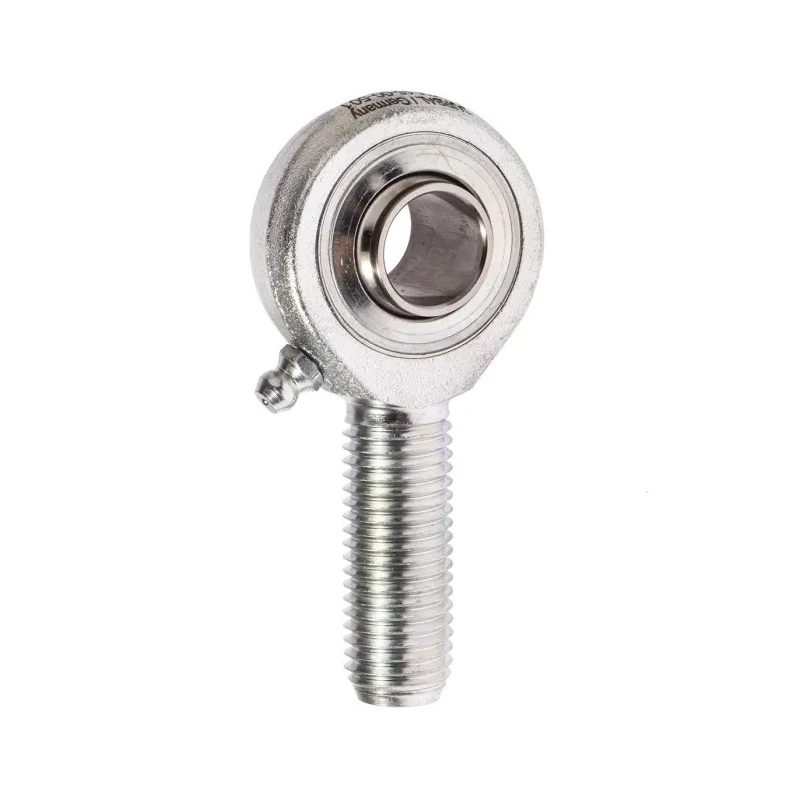

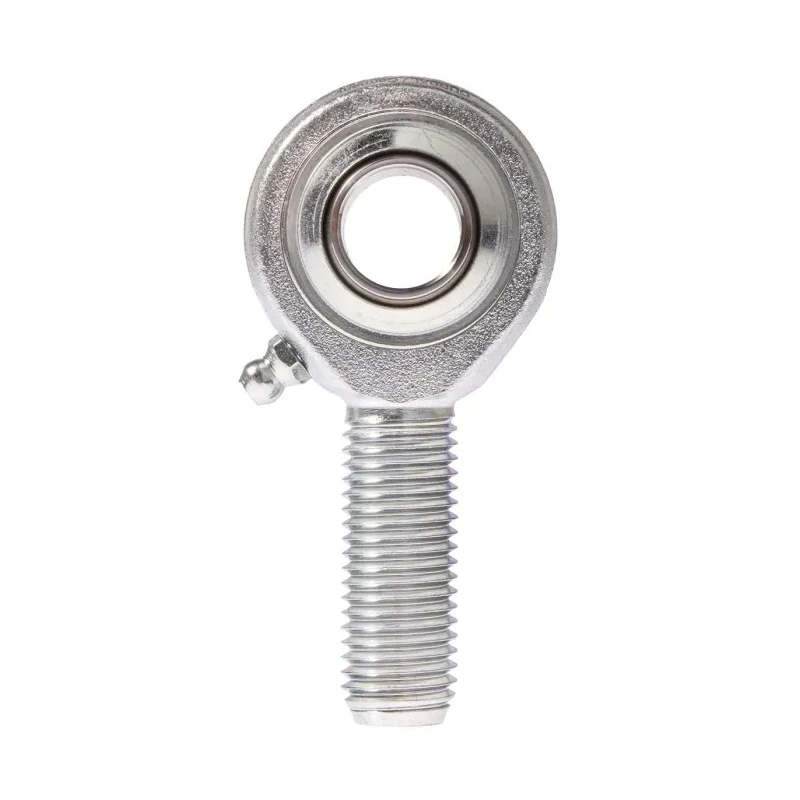

Durbal M22 x 1.5 Male Forged Steel Rod End, 22mm Bore BRM 22-00-501

Durbal BRM 22-00-501 Rod End is a premium forged steel mechanical component designed specifically for rotary bearing and housing applications.

This rod end features a M22 x 1.5 male threaded connection suitable for a 22mm bore size, making it ideal for integration into various mechanical linkages and control systems within industrial machinery.

Manufactured with high-grade forged steel, the rod end housing is tempered, case hardened, and surface galvanized. It incorporates a bearing race that is ground and lapped, providing excellent wear resistance and longevity under demanding conditions.

The inner ring consists of hardened ball bearing steel, finished with superfine ground surfaces to ensure smooth operation and minimize friction. The bearing offers a radial clearance between 15 and 40 micrometers, enabling effective self-alignment of connected parts.

Lubrication is facilitated by Polyrex EP2 or an equivalent soap complex grease, allowing for low maintenance and extended functional life. The rod end is capable of operating reliably within temperatures ranging from minus 20 degrees Celsius up to 120 degrees Celsius, accommodating use in diverse industrial environments.

The dynamic load rating is 9.3kN with a static load rating of 4kN, indicating robust load handling capacity suitable for heavy-duty applications.

Originating in Germany, this rod end conforms to high manufacturing standards expected in precision mechanical components. It is particularly suitable for industrial, manufacturing, fluid power, automotive, and machinery applications where reliability and durability are critical.

Equipped with a M22 x 1.5 male threaded connection for secure mounting. Constructed from premium forged steel for enhanced durability and strength. Supports dynamic loads up to 9.3kN and static loads up to 4kN. Operational temperature range from -20°C to 120°C allows use in diverse environments.

Lubrication accommodated via Polyrex EP2 or soap complex for low maintenance. Features a precision bearing with a radial clearance between 15 and 40 μm for smooth self-aligning action. Rod end housing is tempered, case hardened, and surface galvanized to resist wear and corrosion.

Originates from Germany, ensuring high-quality manufacturing standards. Explore the wide range of rod ends and rotary bearing products at EnvMart for all your industrial and mechanical needs.
