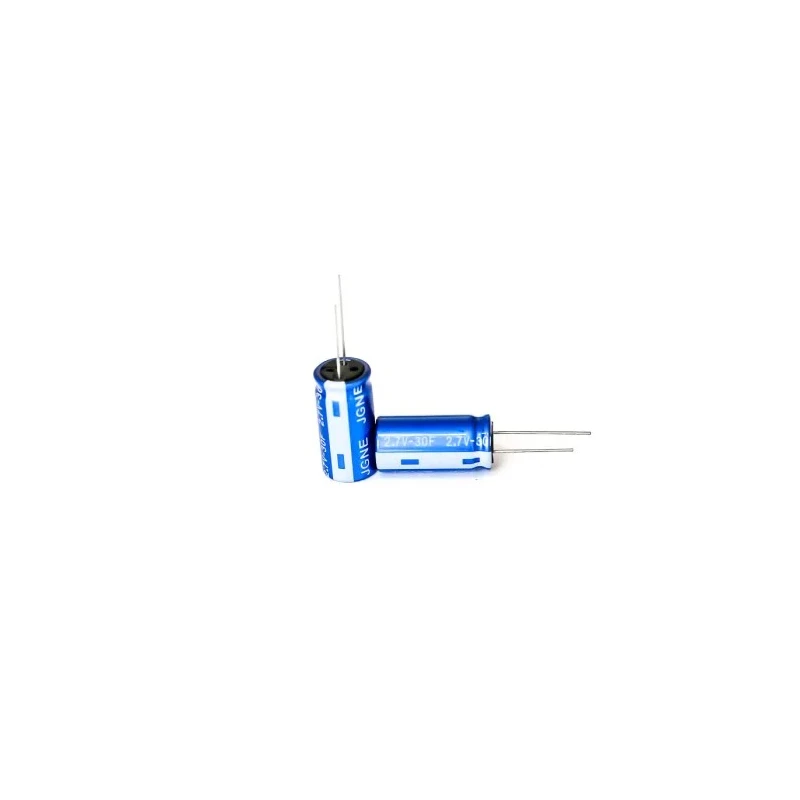

RS PRO 30F Electric Double Layer Supercapacitor 2.7V dc Through Hole Mount Model 184-5061

Free Delivery in India | Lowest Global Shipping Charges

RS PRO 30F Electric Double Layer Supercapacitor 2.7V dc Through Hole Mount Model 184-5061

Name: RS PRO 30F Electric Double Layer Supercapacitor 2.7V dc Through Hole Mount Model 184-5061
Brand: RS PRO
SKU: 156584
Price: 4.31 USD
Availability: InStock



Category Supercapacitors Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	2.7V dc
Brand	RS PRO
Model	184-5061
Mount Type	Through Hole
Maximum Operating Temperature	85°C
Tolerance	-20 to 80 %
Lifetime	200000 Cycles
Capacitance	30F
Minimum Operating Temperature	-40°C
Polarity	Polar
Terminal type	Solder
Leakage Current	150μA
Pin Count	2
ANSI/ESD S20.20	2014
BS EN 61340-5-1	2007
Equivalent Series Resistance ESR	45mΩ
Capacitor Family	Electric Double Layer

Key Features

The supercapacitor has a capacitance of 30F with a voltage rating of 2.7V dc.
Tolerance range from -20% to 80% ensures flexible performance parameters.
Designed for a temperature range from -40°C to 85°C for varied environments.
Features low leakage current of 150μA and ESR of 45mΩ for efficient operation.
Suitable for applications such as UPS backup power supplies, solar battery operated circuits, motor drives, and electronic meters.
Mount type is through hole with polar terminals and solder type connections.
Rated for a lifetime of 200000 cycles, assuring long-term reliability.

Product Description

RS PRO 184-5061 is a 30F Electric Double Layer Supercapacitor designed for industrial and commercial electronic applications, rated at 2.7V dc and mounted through hole. It offers a wide tolerance range of -20% to 80% and a robust operating temperature range from -40°C to 85°C, making it suitable for various environments.

This supercapacitor delivers low leakage current of 150μA and an equivalent series resistance of 45mΩ, ensuring efficient energy storage and discharge cycles. Its polar terminal type with solder connections ensures reliable mounting and electrical connection.

The product is rated for 200000 operational cycles, highlighting its durability and long lifespan. It is especially suited for applications involving uninterruptible power supplies (UPS), solar battery circuits, quick charging in motor drives, and electronic metering equipment.

The RS PRO 184-5061 complies with international standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, assuring quality and safety in electrostatic discharge protection. The supercapacitor has a capacitance of 30F with a voltage rating of 2.7V dc.

Tolerance range from -20% to 80% ensures flexible performance parameters. Designed for a temperature range from -40°C to 85°C for varied environments. Features low leakage current of 150μA and ESR of 45mΩ for efficient operation.

Suitable for applications such as UPS backup power supplies, solar battery operated circuits, motor drives, and electronic meters. Mount type is through hole with polar terminals and solder type connections. Rated for a lifetime of 200000 cycles, assuring long-term reliability.

Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards.

This supercapacitor is ideal for use in industrial, electronic manufacturing, solar energy systems, and power backup solutions requiring reliable, high-capacity energy storage components. Explore more Supercapacitors and related electronic components under RS PRO at EnvMart.
