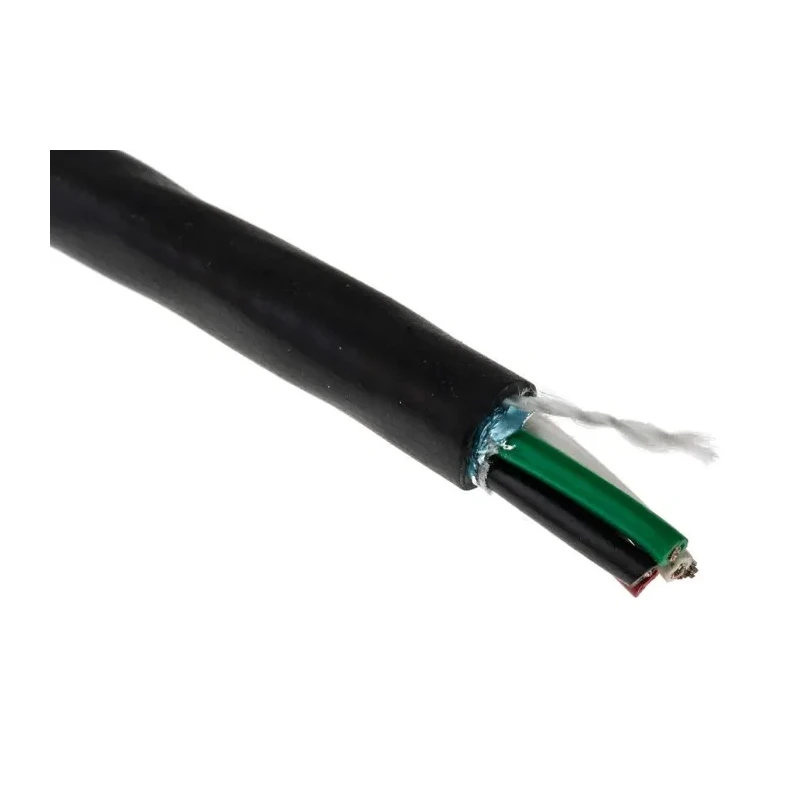

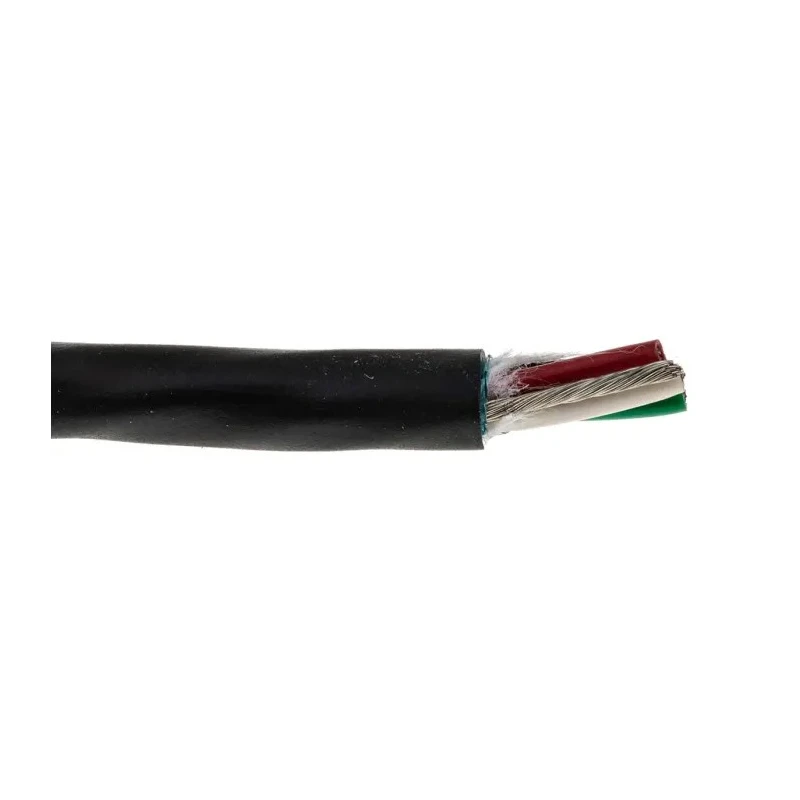

Alpha Wire Xtra-Guard 2 Performance Screened Control Cable 4 Cores 0.81mm² 18 AWG 300V Polyvinyl, 30 m 25384 BK005
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| Model | 25384 BK005 |
| Cable Length | 30m |
| Series | Xtra-Guard 2 Performance Cable |
| Outside diameter | 6.68mm |
| Maximum Operating Temperature | 90°C |
| Number Of Cores | 4 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CSA, CE, UL |
| Jacket Colour | Black |
| Fire Behaviour | Oil Resistant, Low Flammability, Flame Retardant, Flame resistance to UL1581 VW-1 and IEC60332-1, Reaction to fire (CPR Euroclass rating) |
| American Wire Gauge | 18AWG |
| Screened/Unscreened | Screened |
| Number of Strands | 16 |
| Core Strands | 16 x 0.25mm |
| Size of Strands | 0.25mm |
| Cable CSA | 0.81mm² |
Key Features
- Features four color-coded cores with 0.81mm² tin copper conductors.
- Constructed with a durable black polyvinyl chloride jacket providing abrasion and chemical resistance.
- Operates reliably from -30°C to 90°C with a voltage rating of 300V.
- Includes Supra-Shield triple-layer foil and braided tinned copper shielding for EMI protection.
- Designed for industrial applications with resistance to oils, solvents, and UV light exposure.
- Armoured cable construction enhances mechanical protection in tough environments.

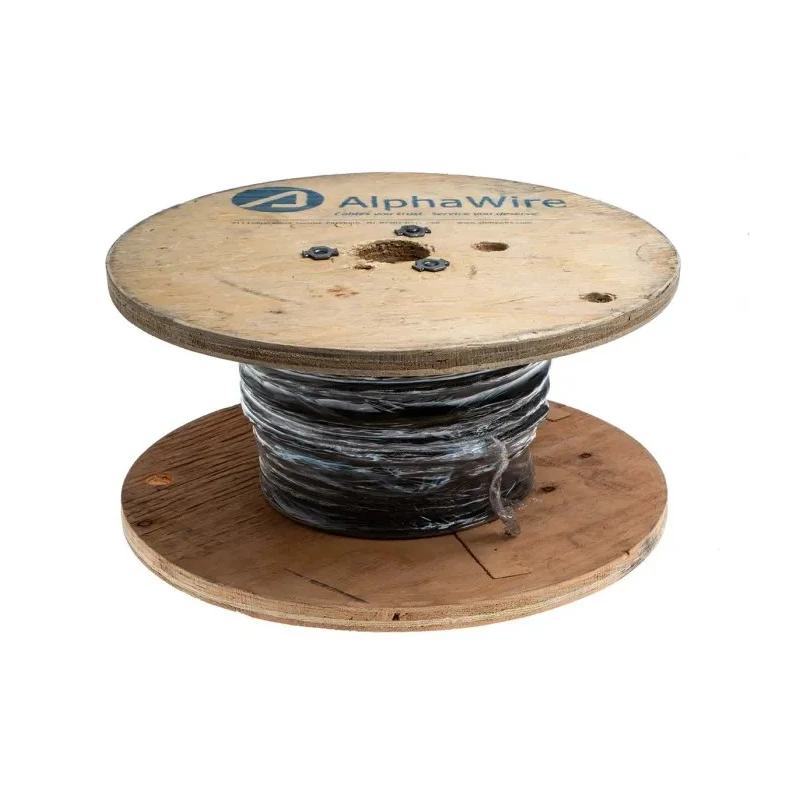

- Cable length of 30 meters suitable for diverse control wiring needs.
- Complies with CSA, CE, and UL standards ensuring safety and quality performance.
Product Description
Alpha Wire 25384 BK005 is a high-performance Xtra-Guard 2 screened control cable engineered for demanding industrial situations requiring superior abrasion and chemical resistance. Featuring four color-coded cores of 0.81mm² (18 AWG) tin copper wire, this cable ensures reliable conductivity and signal integrity.
The cable is sheathed in a robust black polyvinyl chloride jacket offering excellent protection against oil, abrasion, UV exposure, and flame. The unique Supra-Shield design integrates a triple-layer aluminium/polyester/aluminium foil paired with a braided shield of tinned copper wires, providing outstanding electromagnetic interference (EMI) protection essential for sensitive control systems.
This armoured cable operates effectively within a temperature range from -30°C up to 90°C and is rated for 300 volts, making it ideal for CNC machines, automotive plants, military ground support, petrochemical operations, packaging machines, and geological equipment. Its rugged build assures durability in mechanically abusive environments where tear and abrasion resistance are critical.
The cable is certified by CSA, CE, and UL standards (UL AWM 20668 VW-1, CSA AWM I/II A/B FT-1) to meet stringent safety and quality regulations. Additionally, the cable incorporates a nylon ripcord facilitating easy jacket stripping during installation.
Features four color-coded cores with 0.81mm² tin copper conductors. Durable black polyvinyl chloride jacket offers abrasion and oil resistance. Screened with Supra-Shield foil and braided tinned copper for EMI protection.
Operates in harsh conditions with temperature rating from -30°C to 90°C. Armoured construction for mechanical abuse resistance. Complies with CSA, CE, and UL certifications. Cable length of 30 meters.
This Control Cable is suitable for industrial, manufacturing, automation, and electrical applications requiring reliable and durable wiring solutions. Explore the full Alpha Wire range for additional cable options optimized for varied environments and performance demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This control cable has a voltage rating of 300V, making it suitable for various industrial applications.
It operates effectively within a temperature range from -30°C to 90°C, allowing for use in diverse environments.
This cable features four color-coded cores, each made of 0.81mm² tin copper conductors.
The cable is sheathed in a durable black polyvinyl chloride (PVC) jacket, which provides abrasion and chemical resistance.
It includes a unique Supra-Shield design with a triple-layer foil and braided tinned copper shielding for effective EMI protection.
The outside diameter of this cable is 6.68mm, which is essential for installation considerations.
This model complies with CSA, CE, and UL standards, ensuring it meets safety and quality regulations.
Yes, it is designed to resist UV light exposure, making it suitable for outdoor applications.
The cable length is 30 meters, providing flexibility for various installation needs.
It has low flammability and is flame retardant, with a fire resistance rating to UL1581 VW-1 and IEC60332-1.
It is suitable for industrial, manufacturing, automation, and electrical applications requiring reliable wiring solutions.
Each core consists of 16 strands, with each strand measuring 0.25mm in size.
