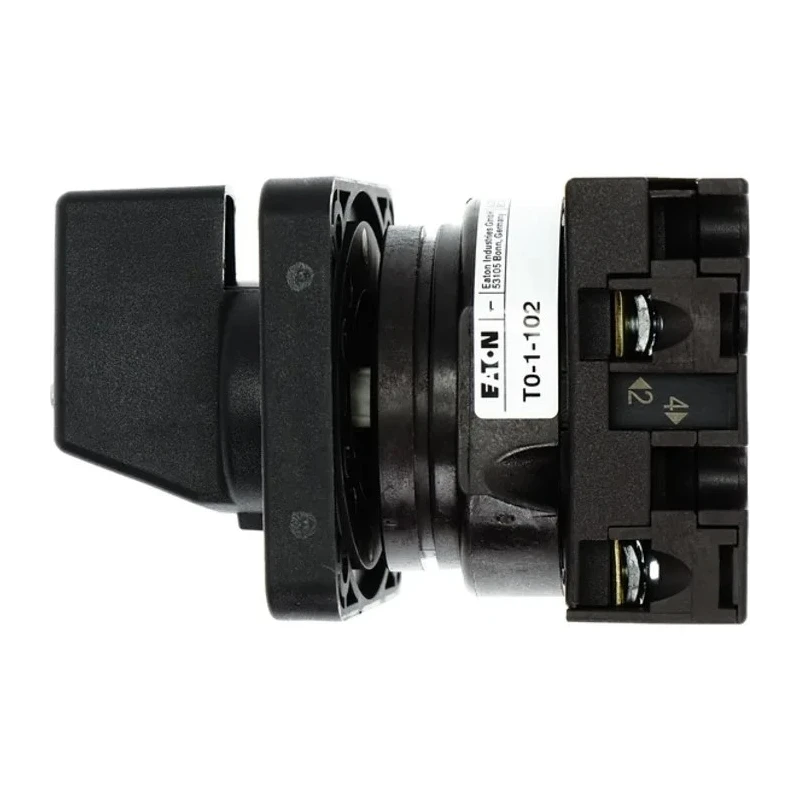

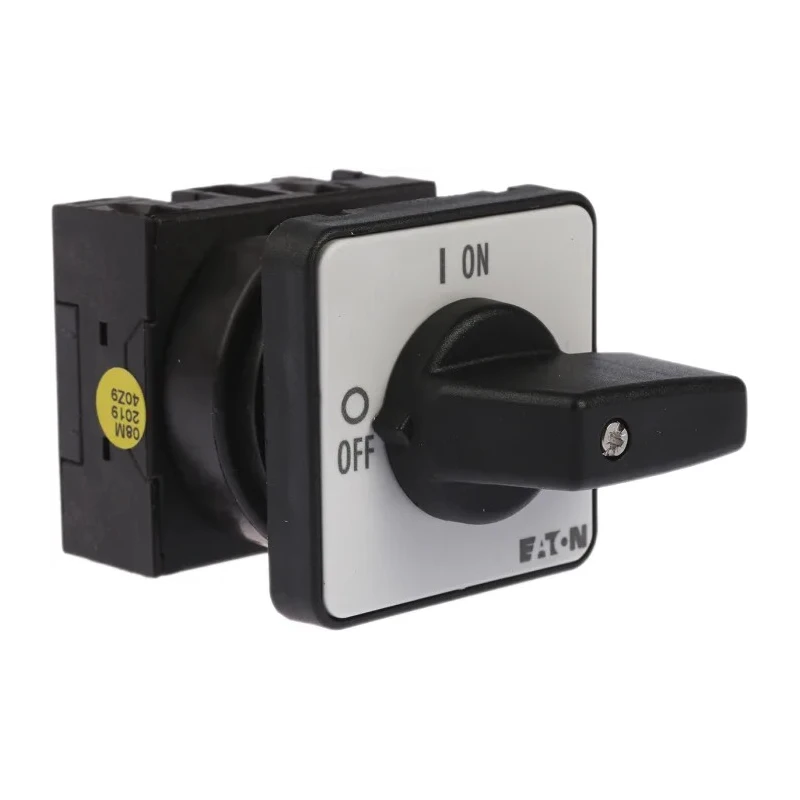

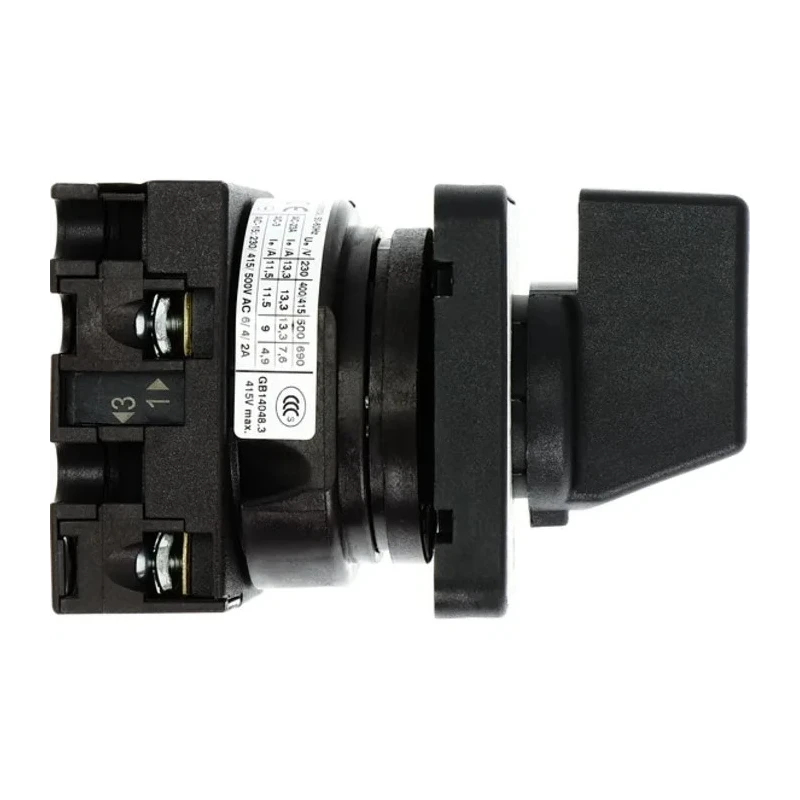

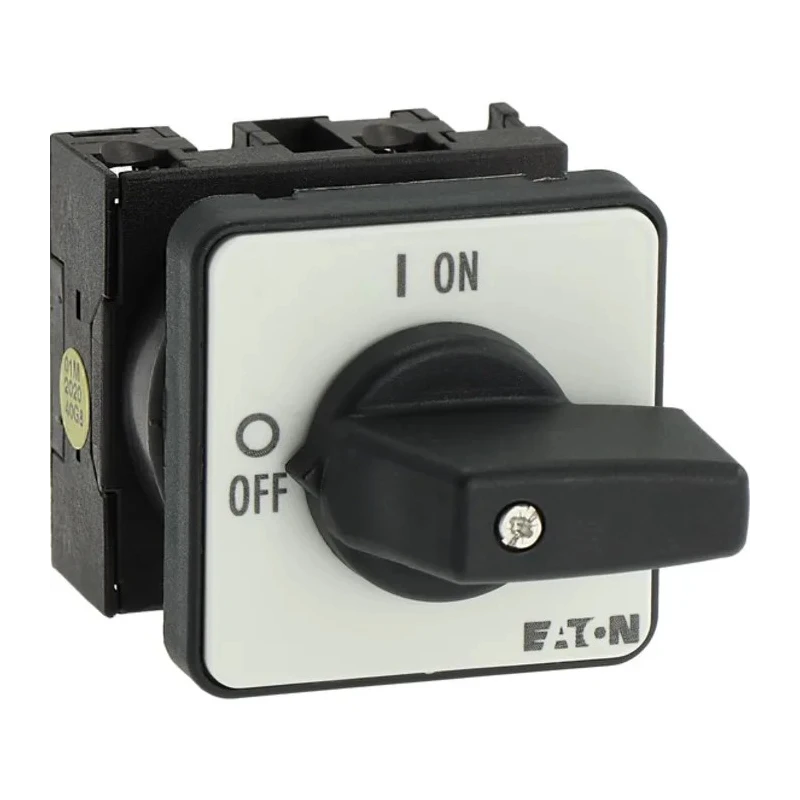

Eaton Rotary Cam Switch With Toggle Actuator 2 Position 90 °, 20 A, 690 V AC, IP65 78819001 T0-1-102/E/EZ-P1(RS332-133)

Eaton 78819001 T0-1-102/E/EZ-P1(RS332-133) Rotary Cam Switch is a precision-engineered control switch featuring a 2-position toggle actuator with a 90° angle of throw, rated for 20 A contact current and a maximum voltage of 690 V AC. This cam switch is designed for flush mounting and offers an IP65 ingress protection rating that safeguards against dust and low-pressure water jets, making it suitable for demanding industrial, building automation, and trade applications requiring durable and reliable switchgear solutions.

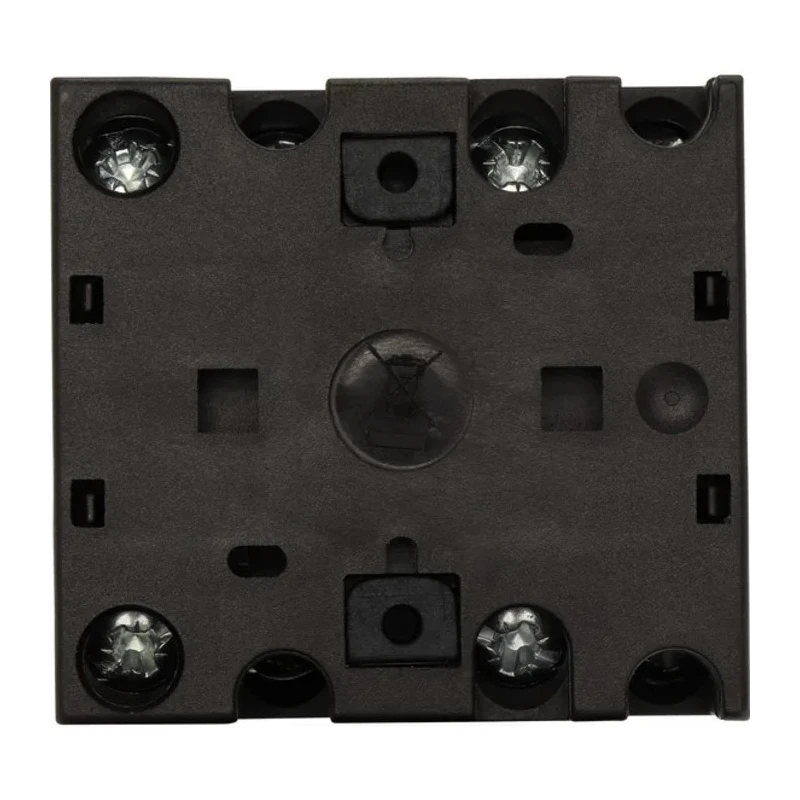

The switch's compact form factor, with dimensions of 48 mm length, 48 mm width, and 100 mm depth, allows it to fit seamlessly into constrained spaces while facilitating ease of installation and integration into control panels. Screw terminal connections permit secure and straightforward wiring setups. Its mechanical life expectancy of 1,000,000 operations ensures longevity and dependable performance in frequent switching applications.

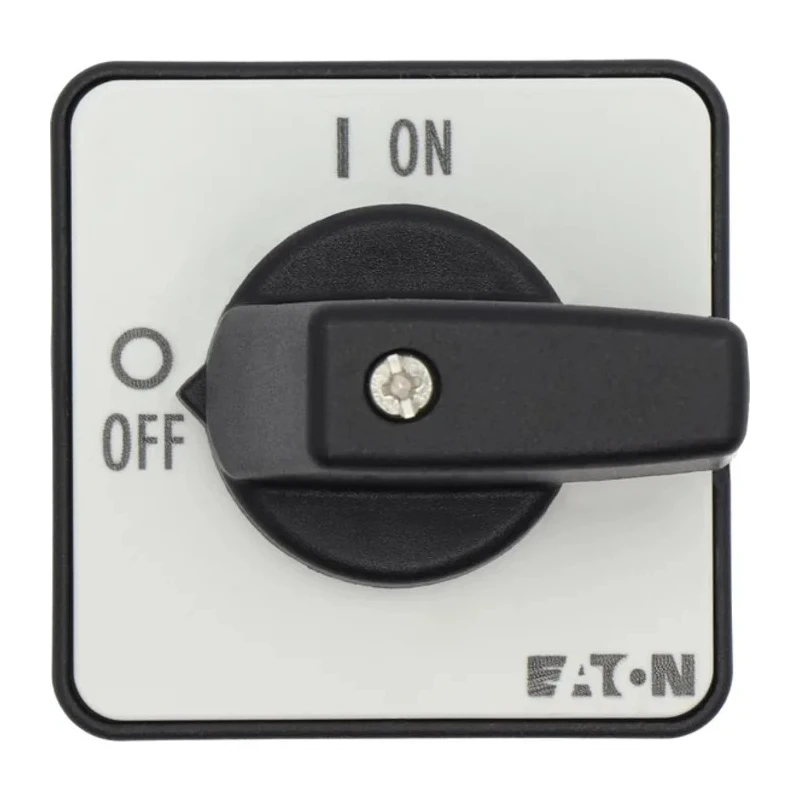

This Eaton cam switch complies with IEC/EN 60947 standards, attesting to its high safety and performance criteria. It is IECEx certified for hazardous area use, extending its applicability to environments requiring stringent safety protocols. The actuator is ergonomically designed with a thumb grip for improved handling and operational safety. Additionally, the switch can be locked in the off position using a padlock to ensure safe lockout/tagout procedures during equipment maintenance and repair, reducing operational hazards.

Operating temperature ranges from -25°C to 50°C, enabling deployment in various environmental conditions found in industrial and automation contexts. The unit is supplied with centre mounting accessories and includes an earth terminal for effective grounding and enhanced electrical safety.

This Eaton rotary cam switch from the T0 series is ideal for use as ON/OFF, main, main/control, or instrument switch in industrial automation, construction, and manufacturing sectors. It delivers robustness, versatility, and safety required by modern industrial control systems.

The switch is designed for industrial and automation applications requiring robust control and safety. It features screw terminals for secure electrical connections. Its IP65 rating ensures protection against dust and low-pressure water jets.

The compact dimensions of 48mm length, 48mm width, and 100mm depth save installation space. Mechanical life expectancy is 1,000,000 operations. The switch can be locked in the off position for safety during maintenance. Operating temperature ranges from -25°C to 50°C, enabling use in harsh environments.

Complies with IEC/EN 60947 standards and IECEx hazardous area certification. Explore more Eaton industrial switches and control components on EnvMart for advanced automation solutions.
