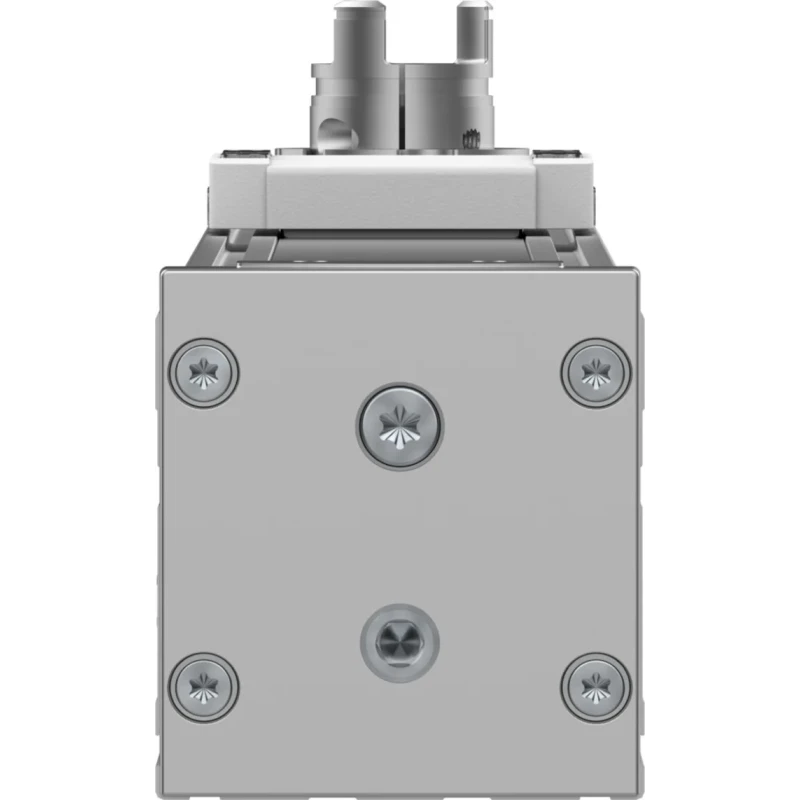

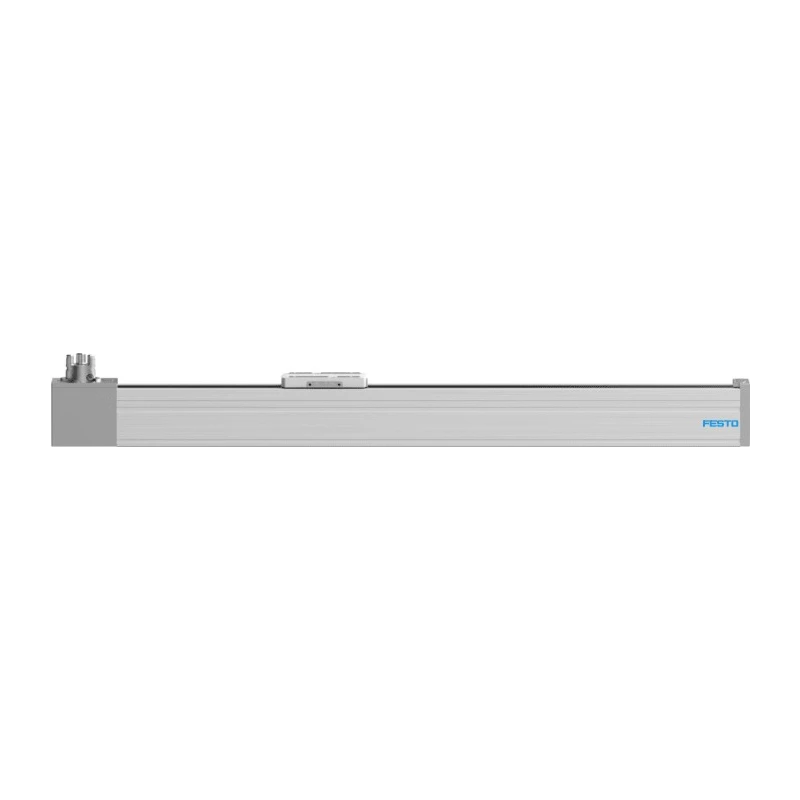

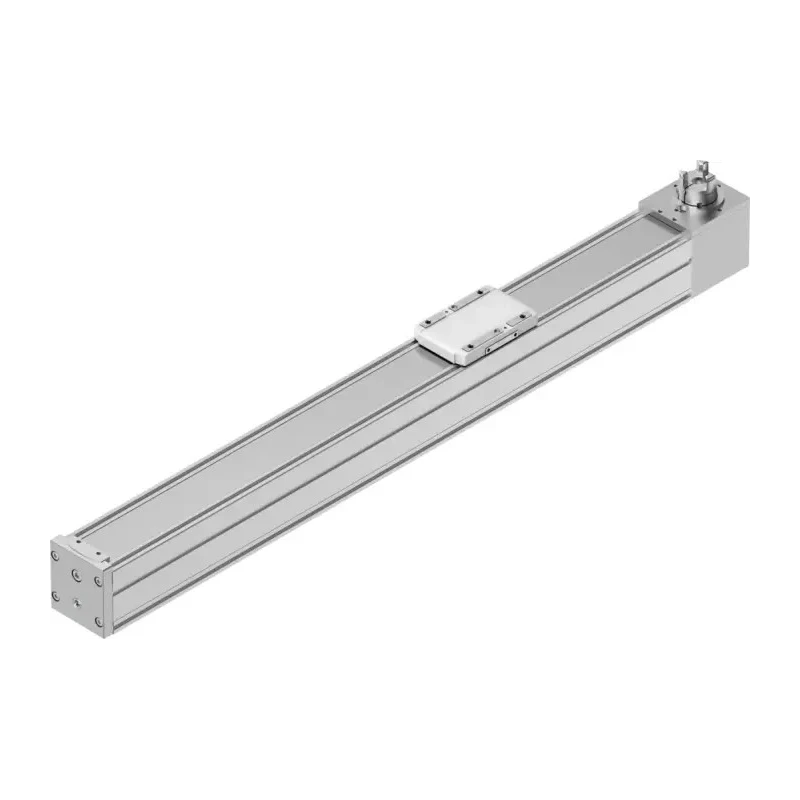

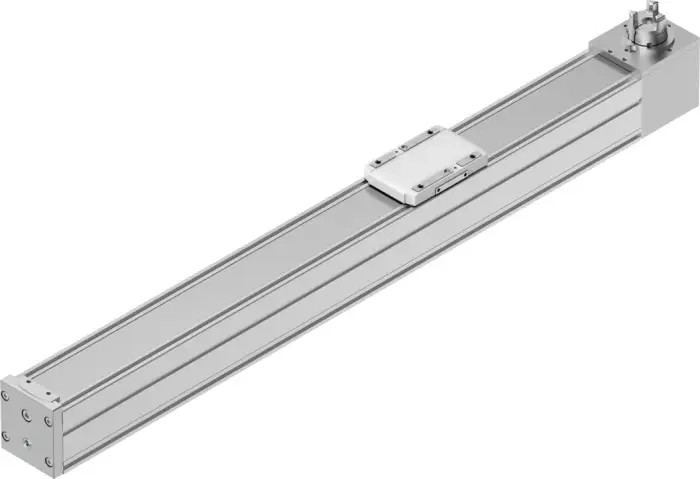

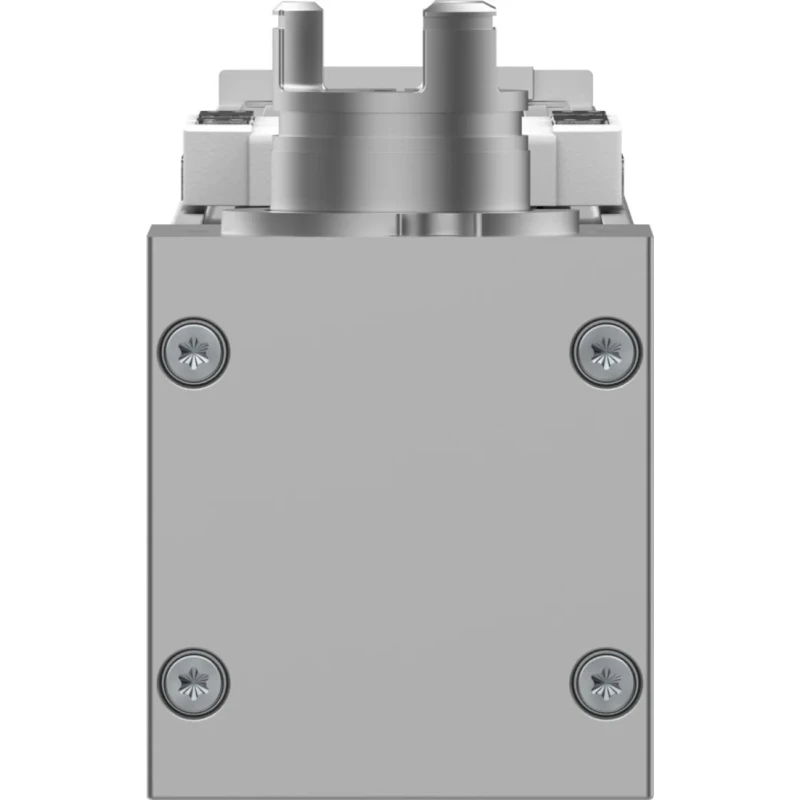

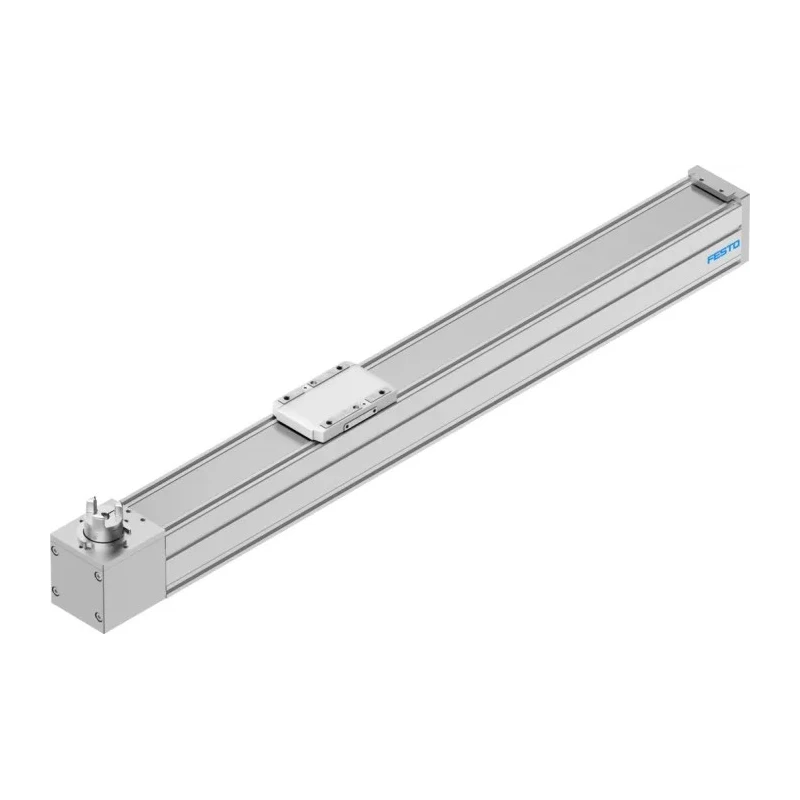

Festo Electrical Linear Actuator 500 mm 600N Stepper/Servo Motor 100% Duty Cycle IP40 ELGC-TB-KF-60-500

Free Delivery in India | Lowest Global Shipping Charges

Festo Electrical Linear Actuator 500 mm 600N Stepper/Servo Motor 100% Duty Cycle IP40 ELGC-TB-KF-60-500

Name: Festo Electrical Linear Actuator 500 mm 600N Stepper/Servo Motor 100% Duty Cycle IP40 ELGC-TB-KF-60-500
Brand: FESTO
SKU: 155555
Price: 919.46 USD
Availability: InStock



Category Electric Linear Actuators Brand FESTO Condition New

Specifications

Country of Origin	India
Brand	Festo
Model	ELGC-TB-KF-60-500
IP Rating	IP40
Gross Weight	3.9kg
Duty Cycle	100%
Series	ELGC-TB
Maximum Load	600N
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Stroke Length	500mm
Maximum Force	3641N
Spindle Type	Toothed Belt
Standards/Approvals	RoHS
Motor Technology	Stepper Motor, Servo Motor
Overall Length Closed	60mm
Festo EGC, 3012494 Electrical Linear Actuator, 5000mm/s, 500 mmBrand	Festo

Key Features

Equipped with stepper or servo motor technology for flexible control.
Operates with 100% duty cycle ensuring continuous performance.
Maximum no-load speed of 1500 mm/s for high-speed applications.
Robust IP40 rating protects against solid objects larger than 1mm.
Compact overall length of 60 mm when closed facilitates versatile installations.
Designed to function in ambient temperatures ranging from 0 to 50°C.
Utilizes a toothed belt spindle type for smooth and accurate motion.
Maximum force capability of 3641N for demanding industrial tasks.

Product Description

Festo ELGC-TB-KF-60-500 electrical linear actuator features a 500 mm stroke length and offers a maximum load capacity of 600N, combined with a compact closed length of 60 mm. Designed with both stepper and servo motor technologies, this actuator supports precise motion control and versatile application needs.

The actuator’s IP40 rating ensures protection against solid particles larger than 1 mm, making it suitable for controlled environments including cleanrooms and manufacturing lines. It is engineered for continuous operation with a 100% duty cycle and achieves a maximum no-load speed of 1500 mm/s, supporting rapid positioning requirements.

Its toothed belt spindle provides smooth, reliable movement and exceptional repetition accuracy of ±0.1 mm. The actuator can exert a peak force of 3641N and withstands operational temperatures from 0 to 50°C, making it adaptable to varied industrial settings.

Maintenance is simplified with lifetime lubrication, eliminating frequent servicing and enhancing operational efficiency. Applications include robotic automation, machine integration, CNC manufacturing, and battery production, especially in precision-sensitive and clean environments.

This actuator’s compact design and robust performance answer the needs of industries requiring accurate linear motion control combined with dependable service life. Equipped with stepper or servo motor technology for flexible control.

Operates with 100% duty cycle ensuring continuous performance. Maximum no-load speed of 1500 mm/s for high-speed applications. Robust IP40 rating protects against solid objects larger than 1mm. Compact overall length of 60 mm when closed facilitates versatile installations.

Designed to function in ambient temperatures ranging from 0 to 50°C. Utilizes a toothed belt spindle type for smooth and accurate motion. Maximum force capability of 3641N for demanding industrial tasks. Maintained by lifetime lubrication to minimize service requirements.

Ideal for automation, robotics, cleanroom environments, and CNC machinery. Explore the variety of Electric Linear Actuators available on EnvMart for advanced industrial automation and precise mechanical power transmission solutions.
