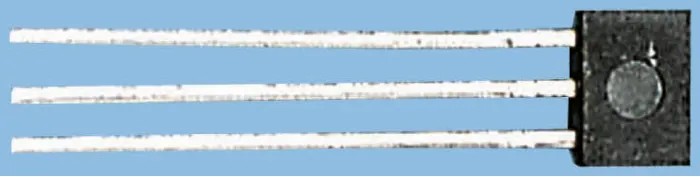

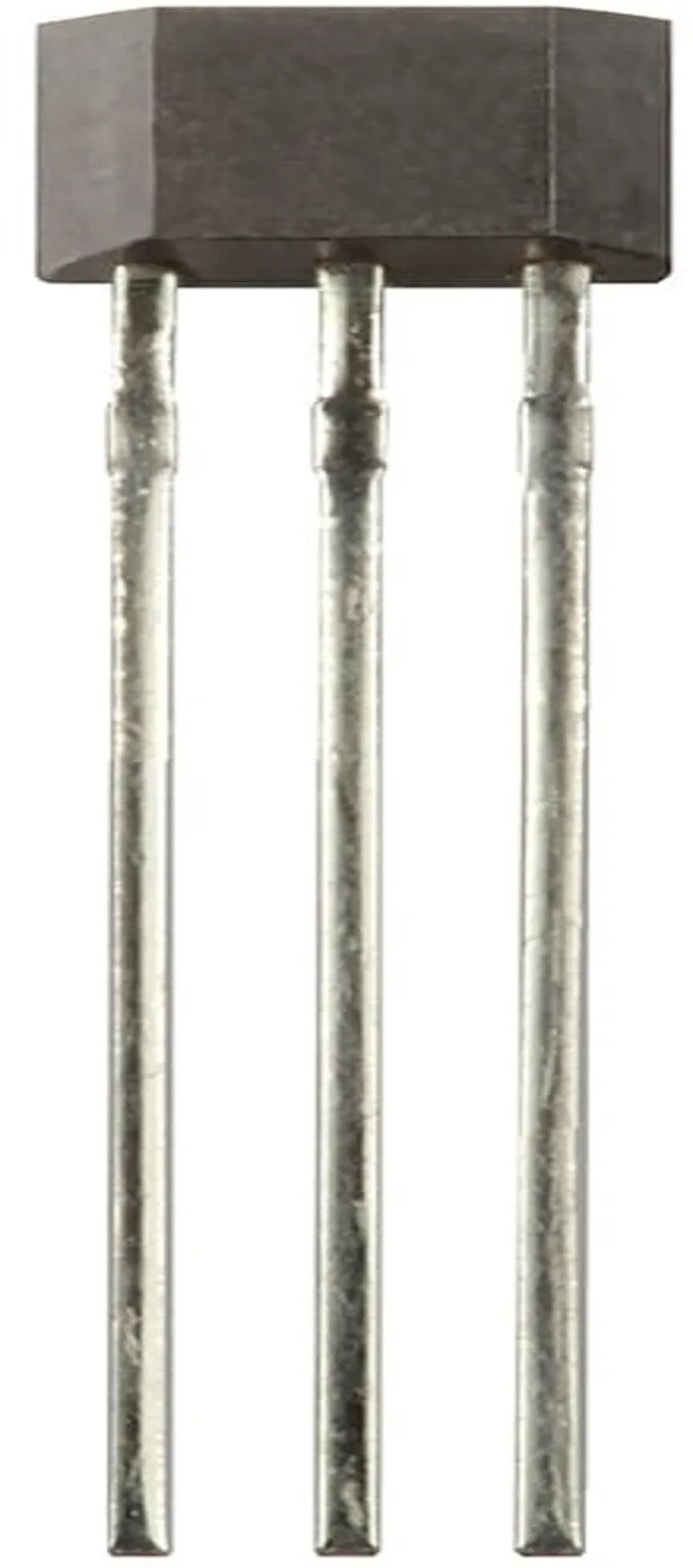

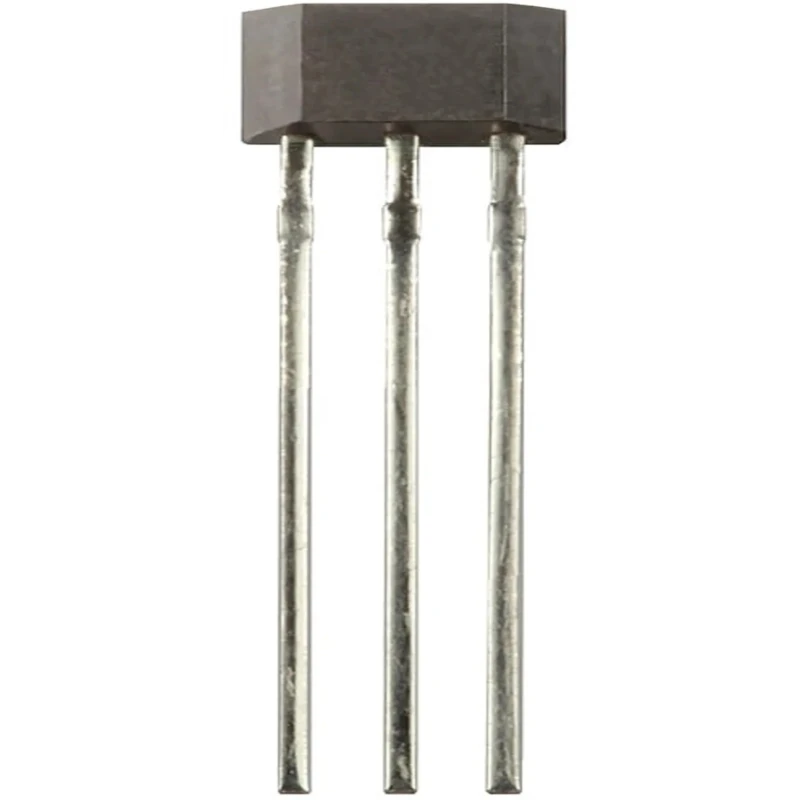

Honeywell Hall Effect Sensor Surface Mount Flat Body Sink Output 30V DC 20mA SS443A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Honeywell |
| Length | 4.06mm |
| Model | SS443A |
| Depth | 1.57mm |
| Width | 3mm |
| Mount Type | Surface |
| Housing Material | Plaskon 3300H |
| Output type | Sink |
| Series | SS400 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20mA |
| Terminal type | 3-Pin |
| Body Style | Flat |
| Maximum dc Voltage | 30V dc |
| Maximum Supply Voltage | 30V |
| Honeywell Technologies Surface Hall Effect Sensor 3.8 V 30V, U-Pack, 3-PinBrand | Honeywell |
Key Features
- Operates within a wide temperature range from -40°C to 150°C.
- Features reverse polarity protection to safeguard the sensor.
- Surface mount with 3-pin terminal for easy PCB through-hole installation.
- Suitable for applications such as computer keyboards, fuel gauges, engine ignition, and tachometers.
- Part of the SS400 series with thermally balanced IC providing temperature compensation for accuracy.
- Maximum supply and DC voltage rating up to 30V for robust operation.
- High output current capacity up to 50mA for versatile switching requirements.
- Housing made of durable Plaskon 3300H material ensuring long-term reliability.
Product Description
Honeywell SS443A Hall Effect Sensor is a digital sensor featuring a flat body and surface mount design, with sink output rated for 30V DC and 20mA switching current. It measures changes in magnetic fields by detecting voltage variations using external magnets, enabling non-contact switching.
This sensor utilizes a thermally balanced integrated circuit in the SS400 series to compensate for environmental temperature shifts, improving measurement accuracy across the operating temperature range of -40°C to 150°C.
The compact dimensions of 4.06mm length, 3mm width, and 1.57mm depth make it suitable for space-constrained electronic assemblies. Its 3-pin terminal allows easy through-hole PCB mounting, facilitating integration into electronic control systems.
Additional features include reverse polarity protection, safeguarding the sensor from damage due to incorrect voltage connection. The housing is constructed from Plaskon 3300H, providing robust mechanical and chemical resistance.
Typical applications encompass computer keyboards, fuel gauge systems, engine ignition timing modules, tachometers, and anti-lock braking systems where reliable magnetic field sensing is critical.
Wide operating temperature range from -40°C to +150°C. Compact and flat form factor for versatile installation. Reverse polarity protection for enhanced durability. Surface mount with 3-pin configuration compatible with standard PCB layouts.
High current output suitable for various switching applications. Thermally compensated IC for accuracy under temperature fluctuations. Plaskon 3300H housing material ensures long term reliability.
The Honeywell SS443A Hall Effect Sensor is designed for industrial, automotive, and commercial electronics requiring accurate magnetic field sensing components. It allows precise and reliable non-contact switching for modern electronic control systems.
