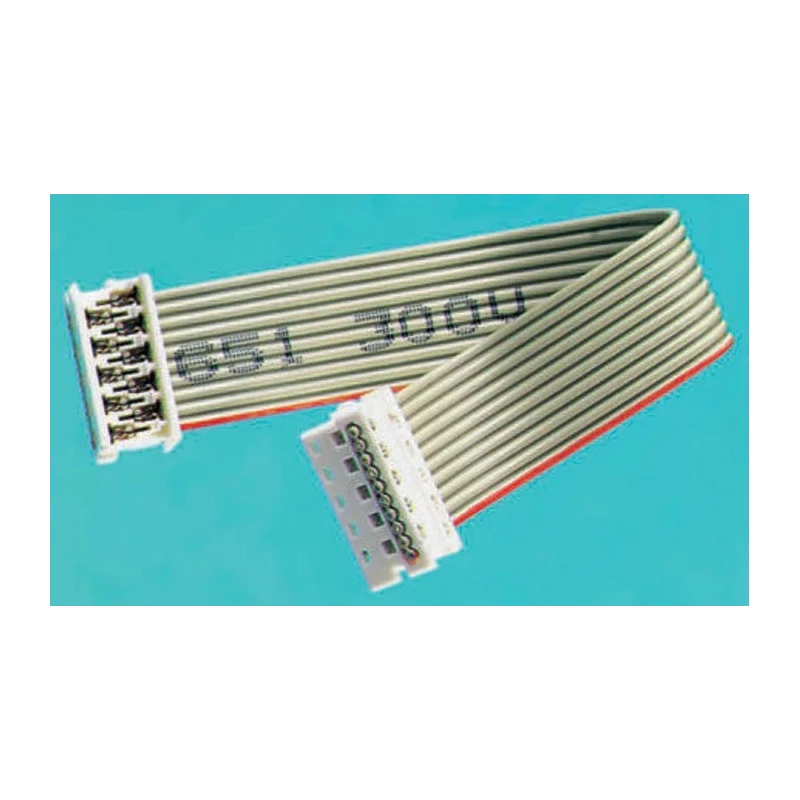

Molex Picoflex Series Flat Ribbon Cable 100 mm Length Picoflex IDC to Picoflex IDC 92315-1210

Molex 92315-1210 Picoflex Series Flat Ribbon Cable is a 100 mm length pre-terminated cable assembly featuring Picoflex IDC connectors on both ends, designed for wire-to-board applications requiring high-density connectivity.

This cable belongs to the Molex Picoflex PF-50 series with a 1.27 mm pitch, providing space-saving advantages over traditional connectors with its compact design. The flat ribbon format offers a flexible and reliable solution for automotive, consumer electronics, and industrial applications.

Key construction materials include a grey polyester jacket and gray PVC insulation maintaining cable integrity and protecting against environmental factors. The contact material is a phosphor bronze alloy with tin plating, ensuring reliable electrical contacts and corrosion resistance. The connector housing is made of durable Nylon 6/6, compliant with UL 94V-0 flammability standards.

The assembly features integral strain relief to enhance its mechanical robustness and resistance to shock and vibration, making it suitable for demanding environments. Its lower profile design allows for more compact electronic assemblies.

Molex Picoflex cables are pre-terminated with two 90327 Series Picoflex IDC connectors and mate with multiple header series such as 90325, 90800, 90779, 90715, and 90814, offering extensive system compatibility.

The cable has a length of 100 mm, making it suitable for short-distance connections in compact assemblies. Connector type: Picoflex IDC, Female contact gender on both ends for reliable connections. Jacket material: polyester providing durability and protection.

Cable insulation made of grey PVC ensuring electrical insulation and mechanical protection. RoHS compliant, confirming environmentally safe materials. Phosphor bronze contacts with tin plating for excellent conductivity and corrosion resistance.

Nylon 6/6 UL 94V-0 rated housing ensuring flame retardant properties.

This cable is widely used in electronics manufacturing, industrial automation, automotive systems, and consumer devices where dense wiring solutions are required within a small footprint. It combines durability, compact size, and electrical performance for reliable signal transmission.
