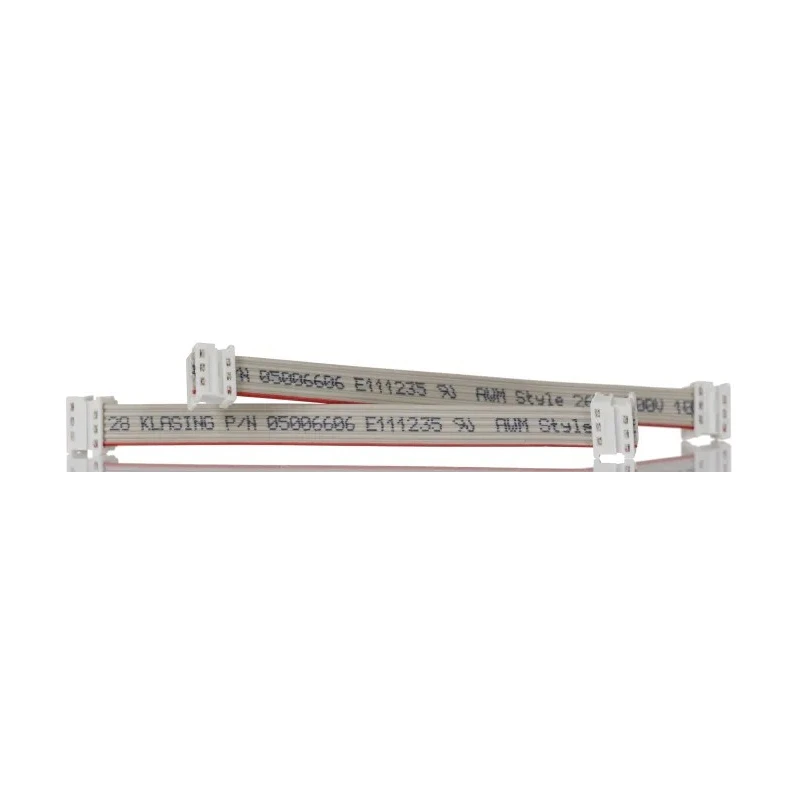

Molex Picoflex Series Flat Ribbon Cable 100 mm Length Picoflex IDC to Picoflex IDC 92315-0610
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Cable Length | 100mm |
| Contact Material | Phosphor Bronze alloy, tin plated |
| Cable insulation | Gray PVC |
| Series | Picoflex |
| Cable Type | Flat |
| Jacket Material | Polyester |
| Standards/Approvals | RoHS Compliant |
| Connector Type A | Picoflex IDC |
| Connector Gender A | Female |
| Jacket Colour | Grey |
| Contact Gender A | Female |
| IDT housing Material | Nylon 6/6, UL 94V-0 |
Key Features
- 1.27 mm pitch Picoflex PF-50 cable assembly with IDC connectors.
- Flat gray PVC cable insulation with polyester jacket.
- Connectors feature phosphor bronze alloy contacts, tin plated.
- Nylon 6/6 UL 94V-0 housing for durability and safety compliance.
- Compatible with Molex Picoflex PF-50 series headers.
- Offers 50% space saving compared to traditional pitch cables.
- Low profile with mated height of only 6.4 mm.
- Excellent polarization and integral strain relief features for secure connections.
Product Description
Molex 92315-0610 Picoflex Series Flat Ribbon Cable is a 100 mm long ribbon cable assembly designed for wire-to-board applications in industrial, automotive, and consumer electronic environments. This cable features Picoflex IDC connectors on both ends providing reliable and compact connections suitable for high-density electronic assemblies.
The cable assembly utilizes 1.27 mm pitch Picoflex PF-50 connectors which mate with a range of Picoflex PF-50 series headers including models 90325, 90800, 90779, 90715, and 90814. The contacts are constructed from phosphor bronze alloy with tin plating ensuring corrosion resistance and conductivity. Cable insulation comprises gray PVC with an additional polyester jacket for added mechanical protection.
The IDT housing material is Nylon 6/6 rated UL 94V-0, providing flame retardancy. The flat ribbon cable design offers a 50% space saving when compared with standard pitch cables and features an exceptionally low mated height of only 6.4 mm. It incorporates excellent polarization to prevent mis-mating and integral strain relief for durability under repeated connection cycles.
This cable assembly is compliant with RoHS standards, making it environmentally safer. Its high resistance to vibration and shock makes it suitable for demanding industrial and automotive electronic applications.
1.27 mm pitch connector system for high-density applications. Durable flat ribbon cable with polyester jacket and gray PVC insulation. Reliable phosphor bronze tin-plated contacts. Flame retardant nylon housing complying with UL 94V-0.
Compatible with a variety of Molex Picoflex PF-50 headers. Compact design with 50% space saving and low profile. Exceptional polarization and strain relief features. RoHS compliant for environmental safety. Suitable for automotive and consumer electronics industries.
Explore more cable assemblies and connectors in the Ribbon Cable category to meet diverse industrial wiring requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a length of 100 mm.
This model features Picoflex IDC connectors on both ends.
The cable insulation is made of gray PVC, while the jacket is composed of polyester. The contacts are made from phosphor bronze alloy with tin plating.
The connectors utilize a 1.27 mm pitch design.
Yes, this cable assembly is RoHS compliant, making it environmentally safer.
The mated height of this model is only 6.4 mm, allowing for a low-profile design.
It is designed for wire-to-board applications in industrial, automotive, and consumer electronic environments.
The IDT housing material is Nylon 6/6, which is rated UL 94V-0 for flame retardancy.
Yes, it incorporates integral strain relief features for durability under repeated connection cycles.
The jacket of this cable is gray in color.
This cable is compatible with a range of Molex Picoflex PF-50 series headers, including models 90325, 90800, 90779, 90715, and 90814.
Both connectors feature a female contact gender.
