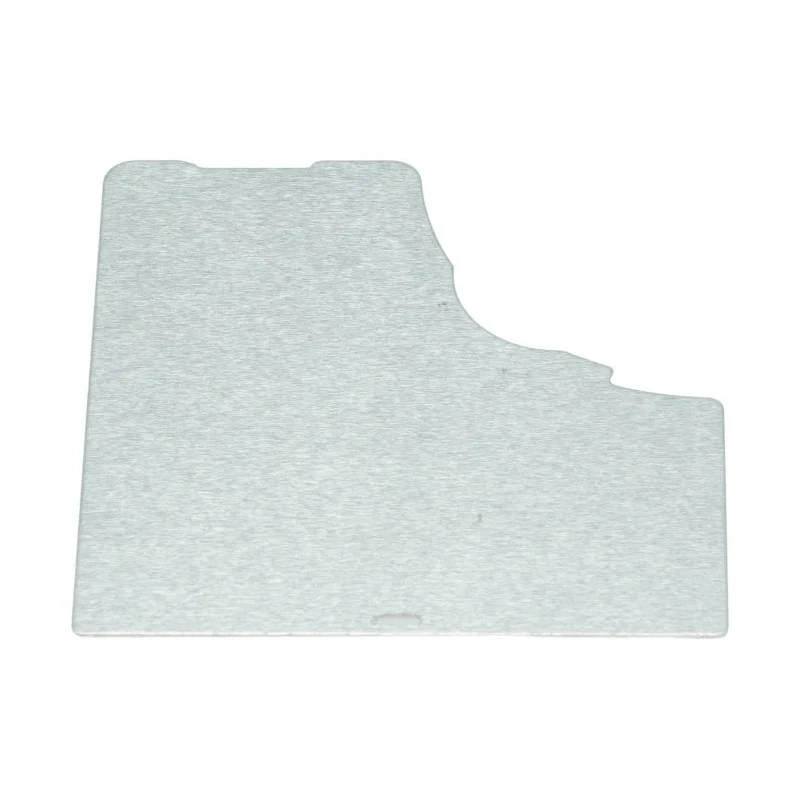

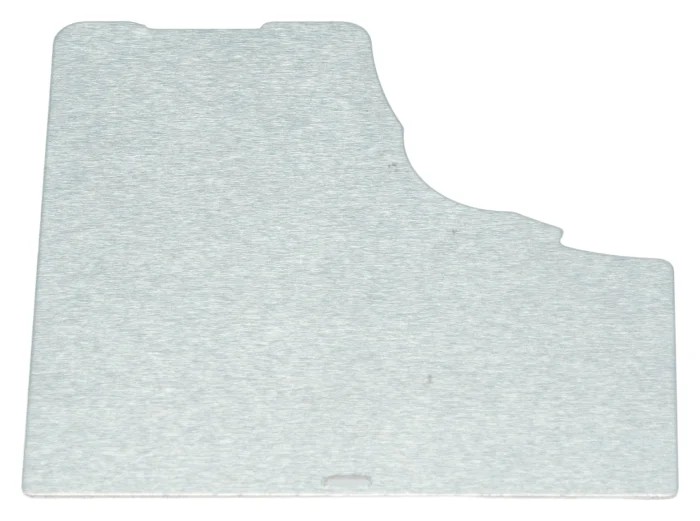

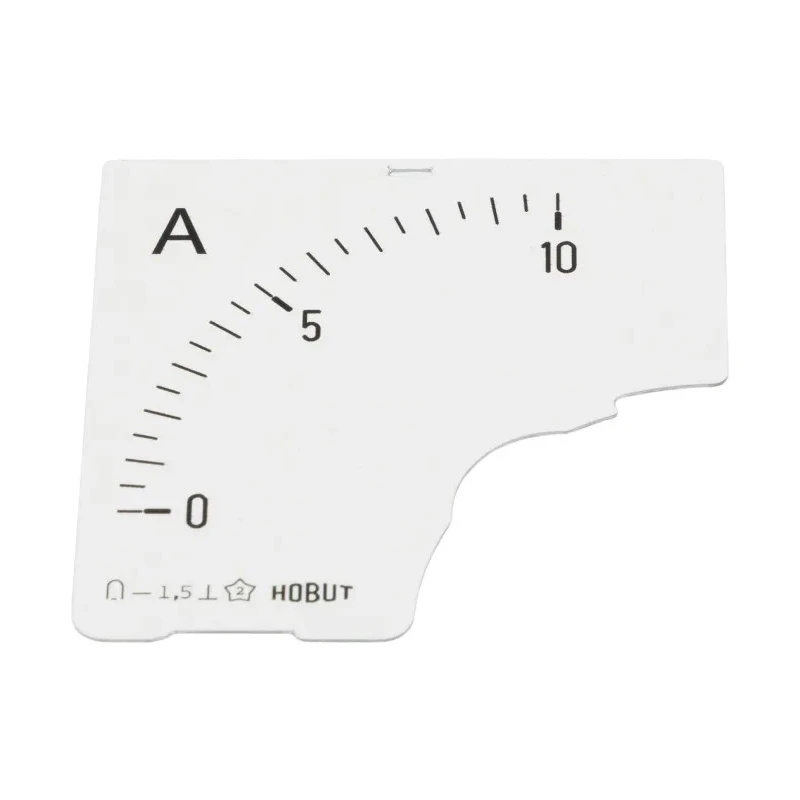

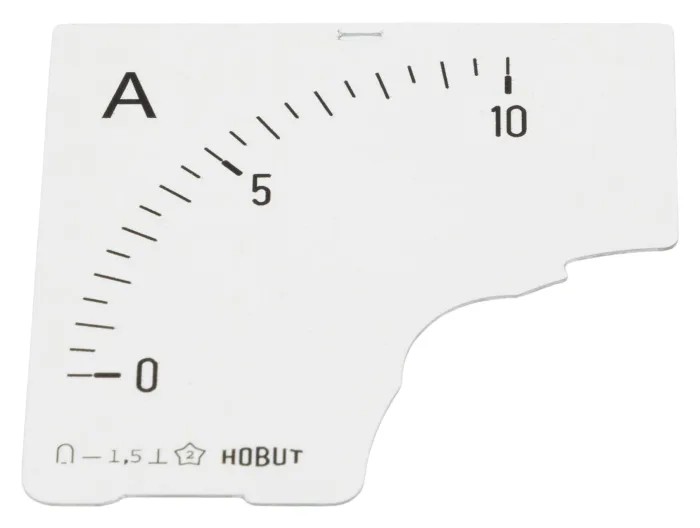

HOBUT Meter Scale Accessory for Ammeter D72MC DIAL 0/10A

HOBUT D72MC DIAL 0/10A Meter Scale is a precision accessory designed to be used with ammeters for accurate current reading. This meter scale is specifically calibrated for 0 to 10 amperes and features a 90° scale arc suitable for DC voltage and current meters.

Constructed with a flame retardant case certified to UL94V0, it provides enhanced safety during industrial and laboratory applications. The scale comes fitted with mounting brackets for easy and secure installation, supporting panel meters sized 72x72 mm and 96x96 mm. Note that 48x48 mm ammeters include integral scales and require no additional meter scales.

This accessory operates effectively within a temperature range of -25 to +40 degrees Celsius, making it suitable for various environmental conditions encountered in electrical panels and control systems.

The product requires the use of appropriate 75mV shunts (such as part number 257-307), which must be ordered separately, as all ammeters it supports are shunt operated. Meter operation is not possible without the corresponding shunt, ensuring the system’s accuracy and safety.

Terminal covers, sold separately, provide added protection against accidental contact and environmental factors. Compatible specifically with ammeters requiring 0 to 10A scale. Features a 90-degree scale arc suitable for DC voltage and current meters.

Constructed with flame retardant case certified to UL94V0 standards. Includes mounting brackets for secure installation. Operates in temperature range of -25 to +40 °C. Terminal covers available separately enhance safety.

Designed to fit 72x72 mm and 96x96 mm ammeters; 48x48 mm ammeters have integral scales. Requires compatible 75mV shunt (sold separately) for proper meter operation.

This meter scale is ideal for industrial and electrical automation applications including panel meter accessories for measuring and controlling currents. Its robust design ensures durable performance in manufacturing, testing, and instrumentation systems.

Explore EnvMart’s extensive range of Panel Meter Accessories to complement this product for comprehensive control and measurement solutions.
