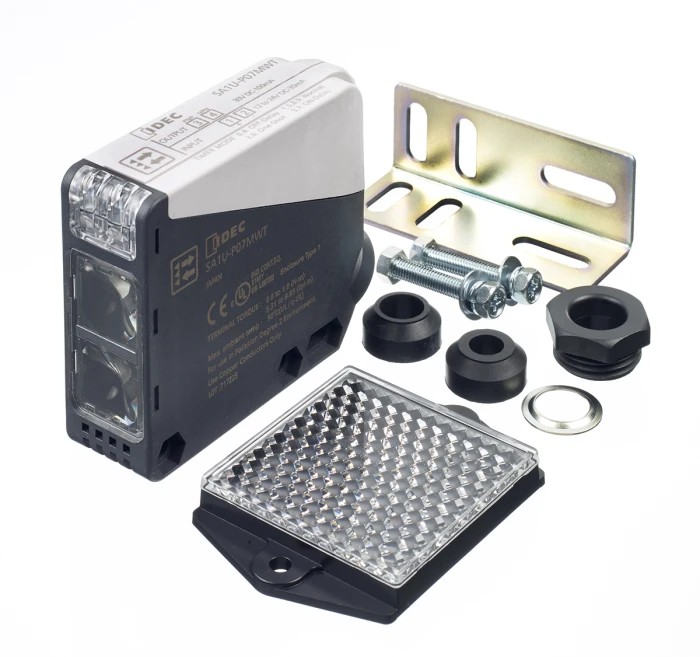

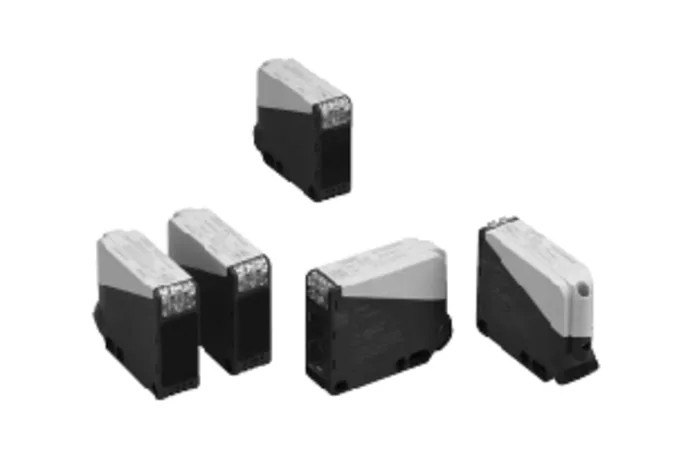

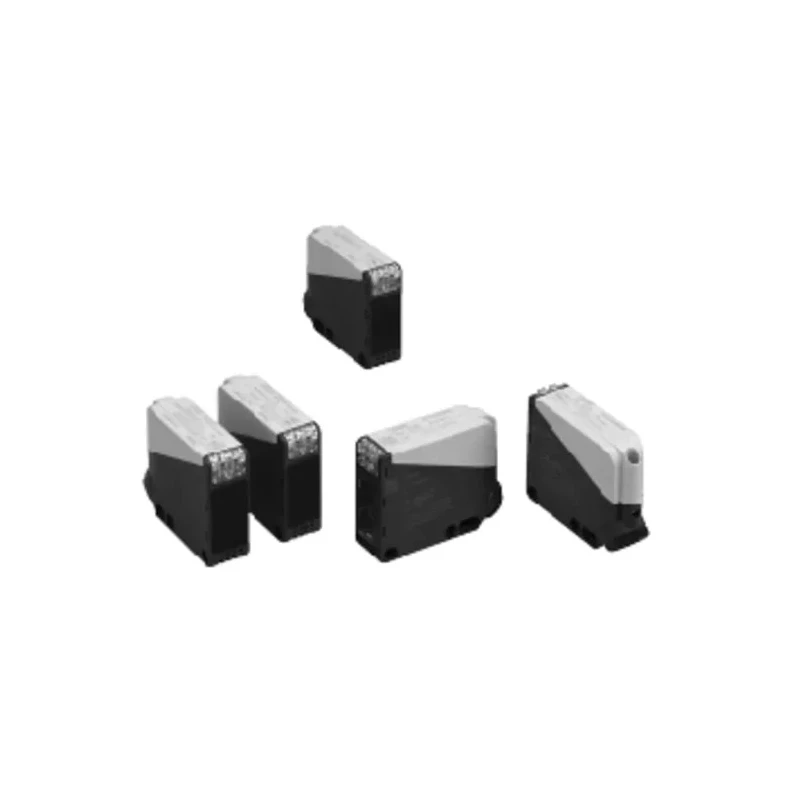

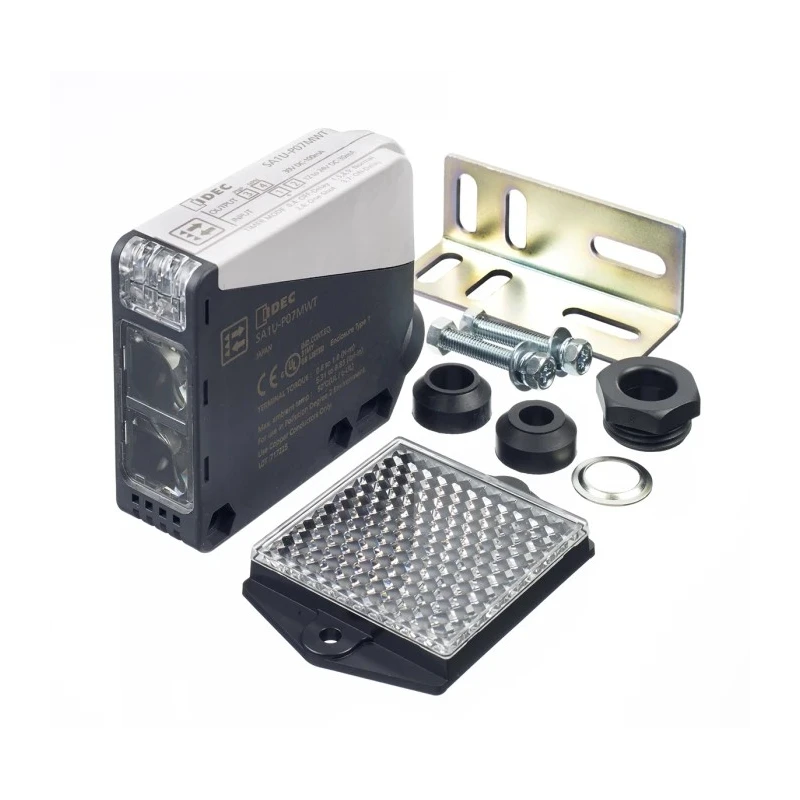

Idec Retroreflective Block Photoelectric Sensor, 7 m Detection Range, NPN/PNP Output, IP67,

Idec SA1U-P07MWT retroreflective block photoelectric sensor offers precise detection up to a range of 7 meters with dual NPN/PNP transistor outputs. This sensor is designed for industrial automation and control gear systems, ensuring dependable glass material detection with an IP67-rated enclosure for water and dust resistance.

The sensor supports universal voltage operation between 24 to 240V AC and 12 to 240V DC, making it versatile for various power supply configurations. Spring-up type terminal blocks enable straightforward wiring, which can be extended up to 100 meters using round cables of diameter between 8 to 10 mm.

Adjustable time delay settings from 0.1 to 5 seconds allow customized response timing for specific application requirements. The device features a flange mount and includes mounting hole centers sized at 40 mm and adjustable range from 50 to 55 mm to accommodate diverse installation setups. Its housing is made from polybutylene terephthalate, providing excellent durability in harsh industrial environments.

This sensor boasts rapid 1 ms response time and supports interference prevention, enabling the placement of two units in close proximity without malfunctions (with the exception of through-beam type sensors). Its reliability is backed by CE and cULus certifications, assuring safety and compliance.

Suitable for industrial, manufacturing, automation, HVAC, and water treatment applications, this device is a robust solution for photoelectric sensing needs. It includes features such as LED light source indication and spring-up terminals for efficient wiring and operation.

The sensor utilizes a retroreflective detection method suitable for glass material detection. It operates with universal voltage compatibility from 24 to 240V AC and 12 to 240V DC. Equipped with spring up terminals for easy wiring and supports wiring extension up to 100 meters using Ø8 to Ø10 mm round cables.

Provides an adjustable time delay ranging from 0.1 to 5 seconds for flexible operation timing. Flange mounting type with mounting hole centers of 40 mm and 50 to 55 mm for secure installation. Compact housing constructed from durable polybutylene terephthalate material ensuring robust performance.

Features quick 1 ms response time for precise sensing applications. Certified with CE and cULus approvals, confirming compliance with industry standards. Operating temperature range from -25°C to 60°C suitable for varied industrial environments.

Designed for industrial automation, manufacturing, and control system applications requiring reliable object detection. Explore more high-quality Photoelectric Sensors and automation components at EnvMart for your industrial and manufacturing needs.
