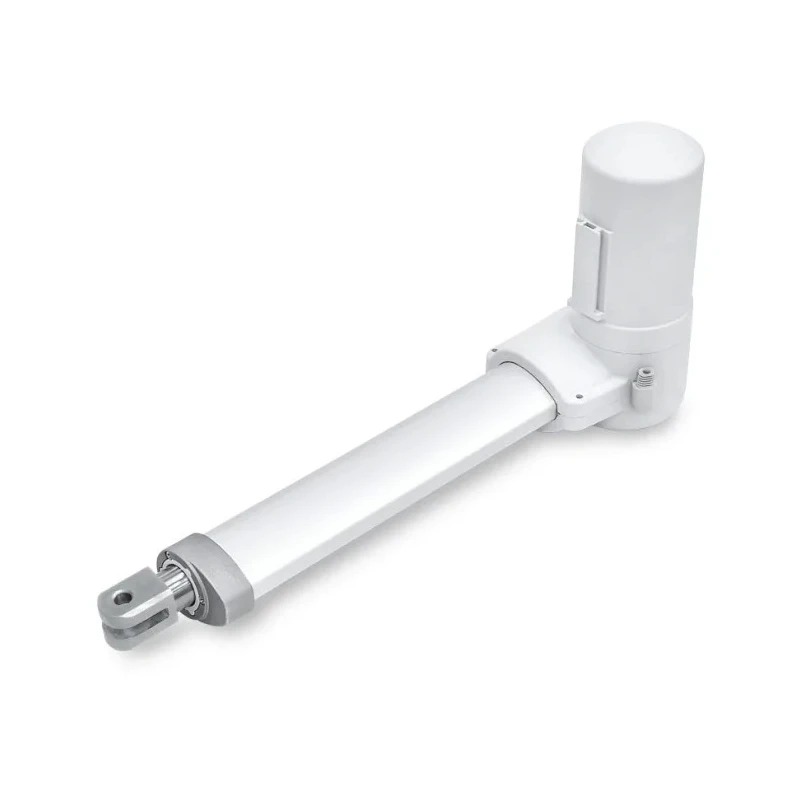

RS PRO Electrical Linear Actuator 300 mm Stroke 8000N Force 24V DC Motor 8.1 mm/s Speed 177-4494

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Electrical Linear Actuator 300 mm Stroke 8000N Force 24V DC Motor 8.1 mm/s Speed 177-4494

Name: RS PRO Electrical Linear Actuator 300 mm Stroke 8000N Force 24V DC Motor 8.1 mm/s Speed 177-4494
Brand: RS PRO
SKU: 153401
Price: 435.1 USD
Availability: InStock



Category Electric Linear Actuators Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Voltage	24V dc
Brand	RS PRO
Model	177-4494
IP Rating	IPX4
Gross Weight	3.6kg
Series	RS PRO
Maximum Load	8000N
Maximum Operating Temperature	40°C
Minimum Operating Temperature	5°C
Stroke Length	300mm
Maximum Force	8000N
Motor Technology	DC Motor
Overall Length Closed	525mm
RS PRO Electric Linear ActuatorBrand	RS PRO

Key Features

This actuator features a stroke length of 300 mm enabling precise linear movement.
It delivers a maximum thrust force of 8000N for heavy-duty tasks.
Powered by a 24V DC motor with a speed of 8.1 mm/s for smooth operation.
Equipped with an IPX4 rating, protecting against splashing water from any direction.
The actuator has an overall closed length of 525 mm for compact installation.
Operates reliably between 5°C to 40°C ambient temperatures.
Includes steel extension tube construction for enhanced durability and low noise operation (≤ 50 dB).
Features preset limit switches for controlled and safe movement range.

Product Description

RS PRO 177-4494 electrical linear actuator is a compact and powerful device designed for applications requiring controlled linear motion up to a stroke length of 300 mm. Powered by a robust 24V DC motor, it delivers a maximum force of 8000N at a speed of 8.1 mm/s, suitable for tasks demanding high thrust and precise positioning. The actuator's steel extension tube construction ensures durability and quiet operation, producing noise levels below 50 dB.

The actuator features an IPX4 ingress protection rating, offering reliable operation against splash water from any direction, making it ideal for industrial environments. Its overall closed length of 525 mm allows installation in limited spaces, while the clevis type metal connectors with pivot angle adjustment provide flexible mounting options. Operating temperature range from 5°C to 40°C accommodates diverse operational setups.

Preset limit switches enable stopping at predefined positions, enhancing safety and control during use. This unit is compliant with European CE and EN standards EN55014-1:2017+A11:2020 and EN 55014-2:2015, reinforcing its quality and reliability.

Ideal for industrial machinery automation, fluid power equipment, and linear motion control in mechanical systems, the RS PRO 177-4494 electrical linear actuator is built to meet demanding operational needs. It is recommended to use in conjunction with the appropriate controller and handset for optimal performance.

This actuator offers reliable linear movement with a 300 mm stroke. Maximum thrust force of 8000N for heavy load applications. Operates on a 24V DC motor with a speed of 8.1 mm/s. IPX4 rated for splash water protection in industrial environments.

Steel extension tube construction yielding quiet operation below 50 dB. Preset limit switches facilitate safe operational limits. Compact overall length closed at 525 mm for limited installation space. Operating temperature range from 5°C to 40°C ensures versatility.

CE and EN55014 certifications confirm compliance and safety. Explore more RS PRO Electric Linear Actuators and mechanical power transmission solutions in EnvMart’s Industrial Tools & Equipment category.
