Alpha Wire Hook Up Wire TEFLON Series White Insulated Wire 20 AWG, 19 x 0.20 mm Core Strands, 30 m Length, 600 V 5856 WH005

Free Delivery in India | Lowest Global Shipping Charges

Alpha Wire Hook Up Wire TEFLON Series White Insulated Wire 20 AWG, 19 x 0.20 mm Core Strands, 30 m Length, 600 V 5856 WH005

Name: Alpha Wire Hook Up Wire TEFLON Series White Insulated Wire 20 AWG, 19 x 0.20 mm Core Strands, 30 m Length, 600 V 5856 WH005
Brand: ALPHA WIRE
SKU: 153327
Price: 167.07 USD
Availability: InStock



Category Hook Up Wire Brand ALPHA WIRE Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	Alpha Wire
Model	5856 WH005
Cable Length	30m
Series	Hookup Wire TEFLON
Outside diameter	1.47mm
Maximum Operating Temperature	200°C
Conductor Material	Silver Plated Copper
Sub Type	TFE Teflon Insulation
Cable Type	Hookup
Minimum Operating Temperature	-60°C
Jacket Material	Polytetrafluoroethylene
Standards/Approvals	MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1
Jacket Colour	White
Fire Behaviour	Flame Retardant
American Wire Gauge	20AWG
Number of Strands	19
Core Strands	19 x 0.20mm
Size of Strands	0.20mm

Key Features

The conductor is made of silver plated copper for superior conductivity and corrosion resistance.
The cable features TFE Teflon insulation with a white polytetrafluoroethylene jacket for durability and flame retardant properties.
The wire has 19 strands of 0.20 mm diameter for enhanced flexibility.
It operates reliably within a temperature range of -60°C to 200°C.
The overall cable diameter is 1.47 mm, suitable for compact installations.
Rated for 600 V voltage applications, it meets MIL-W-16878/4, NEMA HP-EXBBB, UL1213, and VW-1 standards.

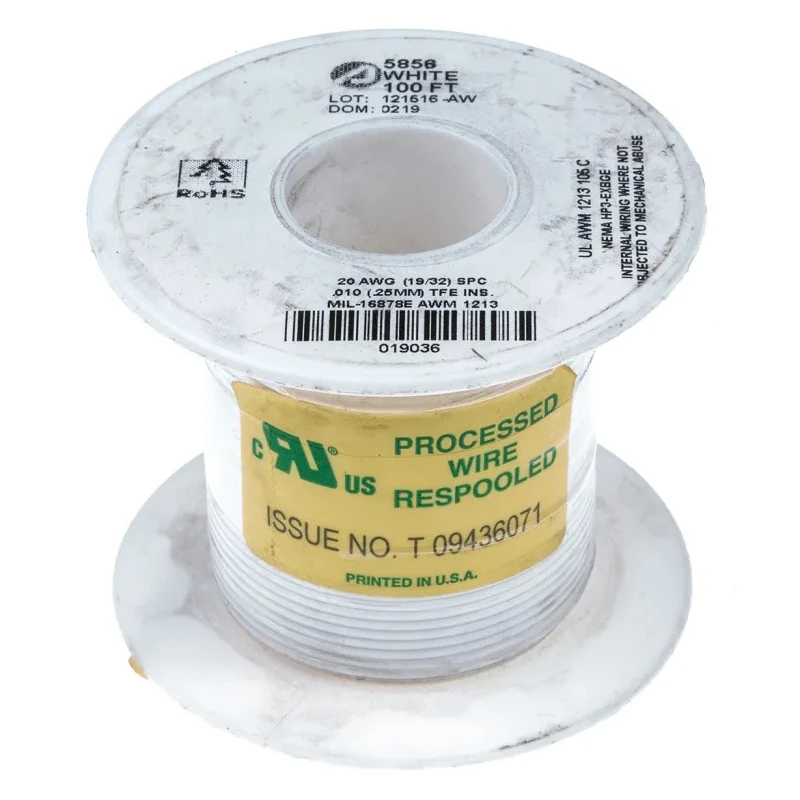

The 30 m cable length reel provides ample supply for various electrical projects.
The insulation thickness of 0.3 mm ensures electrical safety and mechanical robustness.

Product Description

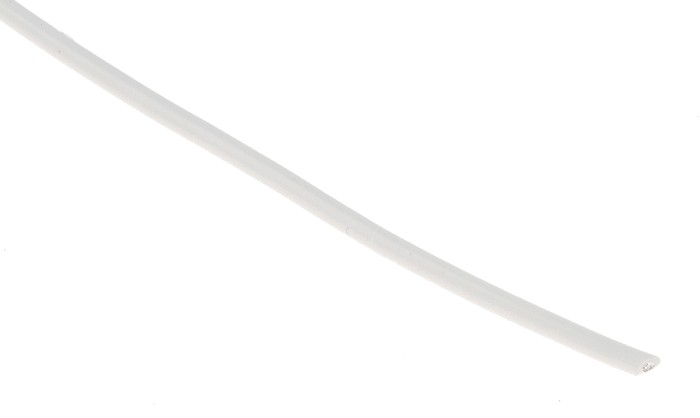

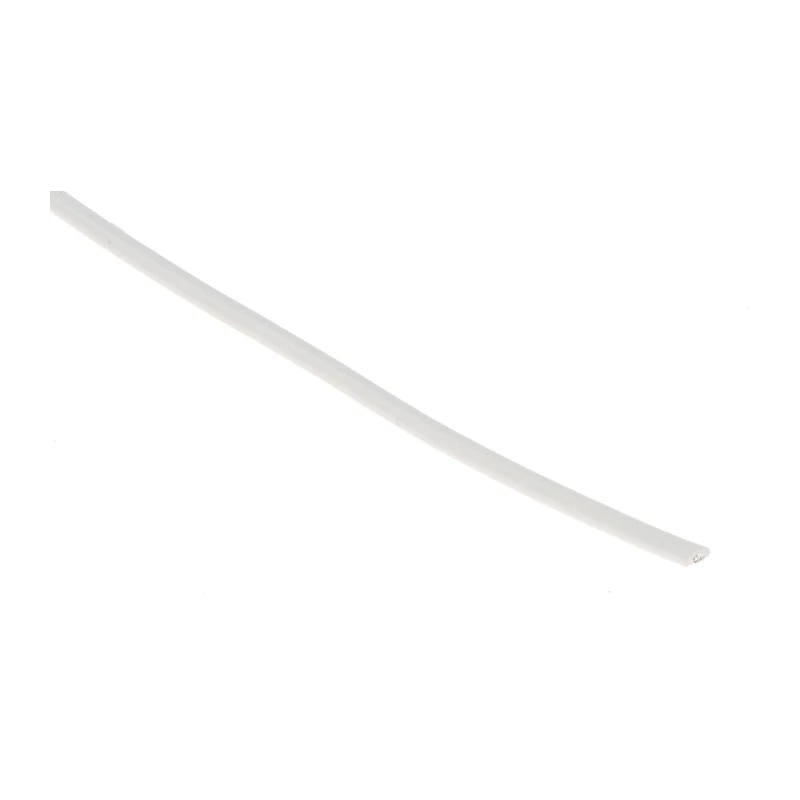

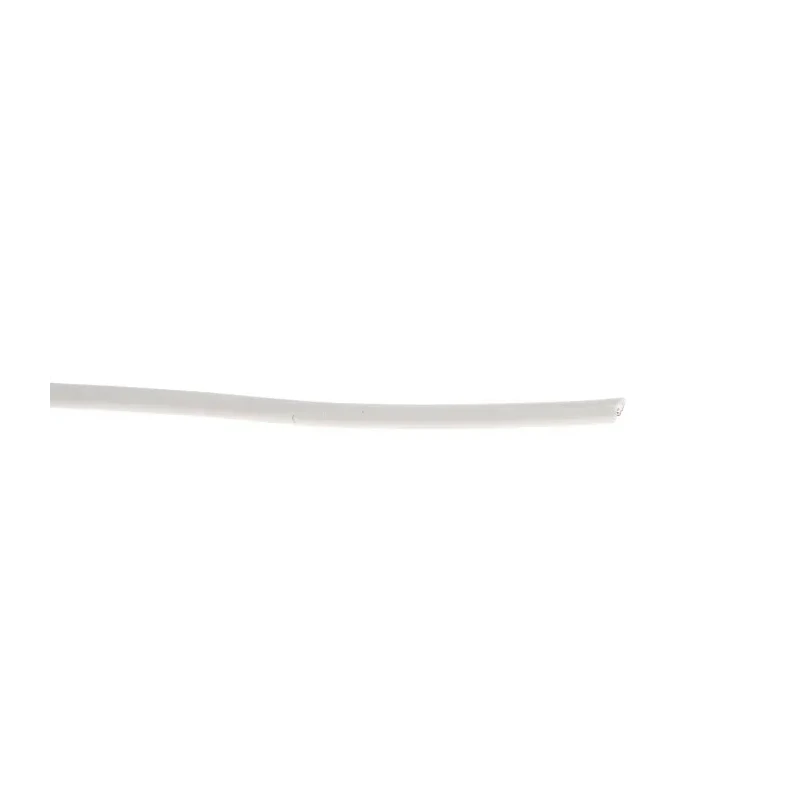

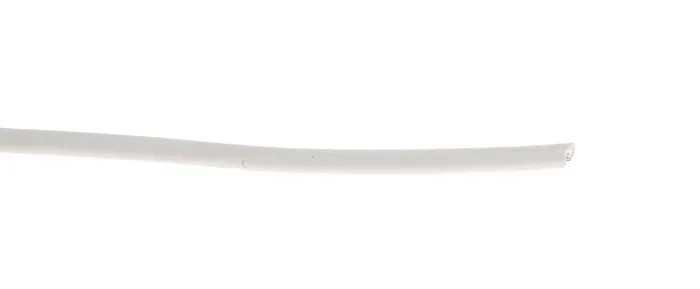

Alpha Wire 5856 WH005 Hook Up Wire TEFLON Series is a premium quality 20 AWG wire featuring silver plated copper conductors to ensure excellent conductivity and resistance to oxidation. The wire is insulated with TFE Teflon insulation and a white polytetrafluoroethylene jacket which provides flame retardant properties and mechanical durability.

With a conductor composed of 19 strands each 0.20 mm in diameter, this hookup wire offers exceptional flexibility while maintaining electrical performance. The overall diameter is 1.47 mm, making it suitable for compact and precise wiring applications.

The wire is designed to operate safely within a broad temperature range from -60°C minimum to 200°C maximum, enabling usage in harsh and demanding environments. It supports a voltage rating of 600 V, meeting rigorous standards such as MIL-W-16878/4, NEMA HP-EXBBB, UL1213, and VW-1 flame retardant certifications.

Available in a 30 m length reel, this product is ideal for use in industrial, manufacturing, telecommunications, consumer electronics, and PCB manufacturing sectors. The white color of the jacket allows for easy color-coding and identification during assembly.

The conductor uses high-grade silver plated copper for efficient signal transmission. The robust TFE Teflon insulation provides excellent thermal stability and chemical resistance. Flame retardant jacket ensures safety in case of fire exposure.

Bend radius is 10 times the cable diameter, allowing flexible installation. The precise build quality supports high reliability in networking and electronic devices.

This Alpha Wire TEFLON Series hookup wire is designed to meet the strict requirements of industrial and laboratory wiring applications. It delivers both durability and performance needed for sophisticated electrical and electronic systems.

Choose this product for trusted hookup wire solutions at EnvMart for your high temperature and high reliability wiring needs.
