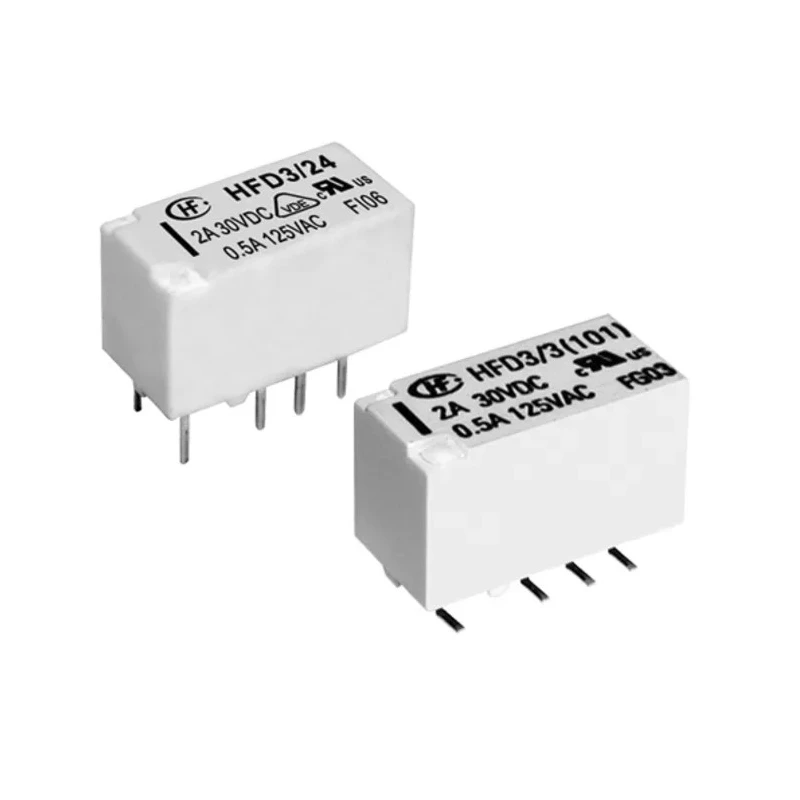

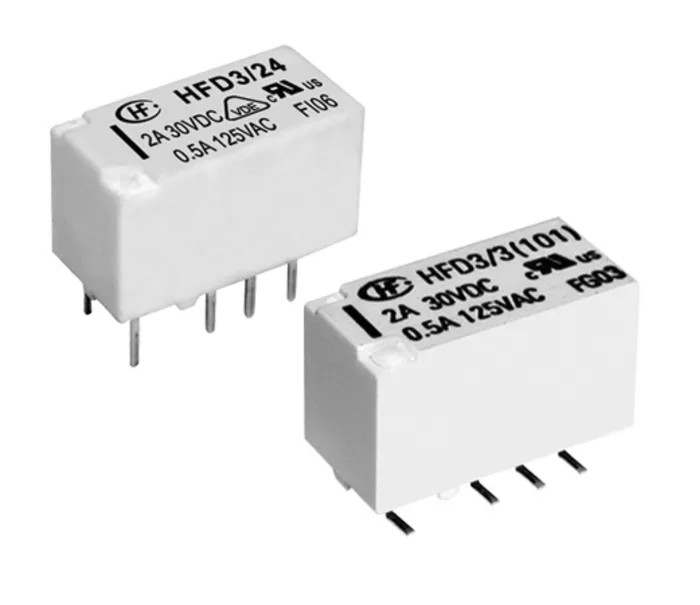

Hongfa Europe GMBH PCB Signal Relay 5V DC Coil 2A DPDT 90W Silver Alloy Contacts HFD3/5-L2
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 9mm |
| Length | 15mm |
| Model | HFD3/5-L2 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HFD3 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 101Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 200mW |
| Switching Power | 90W |
| Outline Dimensions | (15.0 x 7.5 x 9.0) mm |
Key Features
- Operates with a coil voltage of 5V DC and switching power of 90W.
- DPDT (Double Pole Double Throw) contact configuration ensures versatile circuit control.
- Contacts are made from silver alloy for reliable conductivity.
- Compact dimensions of 15 x 7.5 x 9 mm suit PCB mounting.
- Switching AC voltage rating up to 277V AC and DC voltage up to 220V DC.
- Coil resistance is 101 ohms with coil power consumption of 200mW.
- Terminal type is PCB terminal for direct circuit board integration.
- Operation temperature range from -40°C to 85°C meets demanding environmental conditions.
Product Description
Hongfa Europe GMBH HFD3/5-L2 is a high-quality PCB Signal Relay designed for reliable signal switching in industrial and electronic applications. It operates with a 5V DC coil, delivering a switching current of 2A with a Double Pole Double Throw (DPDT) contact configuration, making it suitable for a wide range of control circuits.
The relay features durable silver alloy contacts that provide excellent electrical conductivity and resistance to wear. Its compact outline dimensions of 15.0 x 7.5 x 9.0 mm and PCB terminal mount type allow easy integration into printed circuit boards where space savings are critical.
With a switching power capacity of 90W and voltage ratings of up to 277V AC and 220V DC, this relay supports various industrial, automation, and signal conditioning uses. The coil resistance is optimized at 101 ohms with a coil power dissipation of 200mW, ensuring efficient energy consumption.
Designed for operation in harsh environments, the relay supports minimum and maximum operating temperatures from -40°C up to +85°C. It is RoHS compliant, confirming adherence to international environmental regulations, making it suitable for environmentally conscious manufacturing.
This product is ideal for applications in electronics, automation, industrial machinery, HVAC systems, and laboratory equipment requiring reliable and compact switching solutions. Its surge withstand voltage capability of up to 2500VAC further adds to its robustness.
Operates at 5V DC coil voltage with 2A switching current. DPDT contact configuration with silver alloy contacts. Compact size with PCB terminal mounting. Supports AC switching voltage of 277V and DC voltage of 220V. RoHS compliant for environmental safety.
Wide operating temperature range from -40°C to 85°C. Coil resistance of 101 ohms and coil power of 200mW. Suitable for industrial, laboratory, and automation applications. Robust surge withstand voltage of 2500VAC. Explore more high-quality electronic relays and components in the Electronics & Electricals category on EnvMart for your industrial and technological needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 2A.
It operates with a coil voltage of 5V DC.
The outline dimensions are 15.0 mm in length, 7.5 mm in width, and 9.0 mm in height.
It features a Double Pole Double Throw (DPDT) contact configuration.
The maximum switching AC voltage is 277V AC.
The contacts are made from silver alloy, which ensures reliable conductivity.
The coil resistance is 101 ohms.
The coil power consumption is 200mW.
It operates within a temperature range from -40°C to 85°C.
The maximum switching DC voltage is 220V DC.
It has a surge withstand voltage capability of up to 2500VAC.
Yes, this relay is RoHS compliant, confirming adherence to international environmental regulations.
