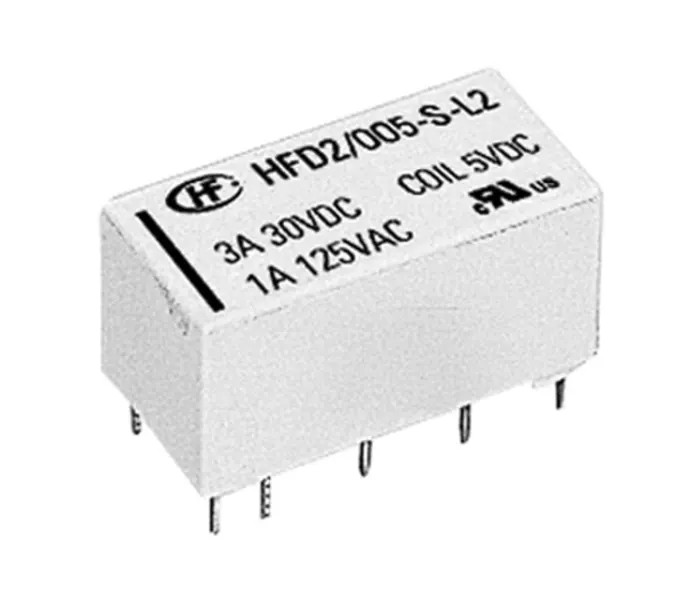

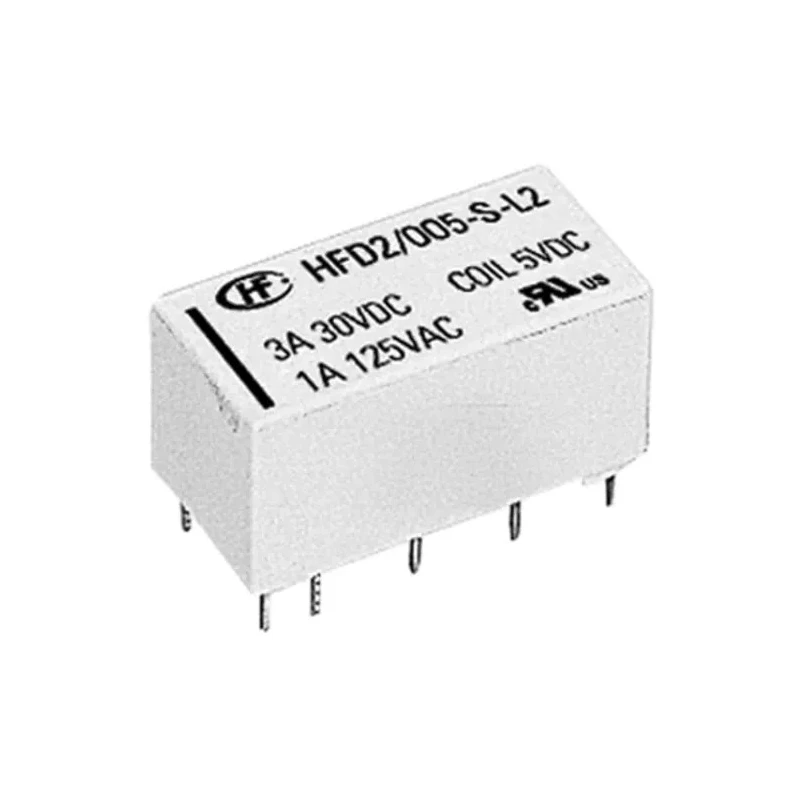

Hongfa Europe GMBH PCB Signal Relay, 5V Coil Voltage, 2A Switching Current, DPDT Contact Configuration HFD2/005-S-L1-D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 10.6mm |
| Length | 20.2mm |
| Model | HFD2/005-S-L1-D |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Silver |
| Series | HFD2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 330Ω |
| Coil Voltage | 5V |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 75mW |
| Switching Power | 90W |
Key Features
- Equipped with silver alloy contacts ensuring high electrical endurance.
- Coil power consumption is low at 75mW, enhancing efficiency.
- Compact dimensions with length 20.2mm, width 10.2mm, height 10.6mm for PCB mounting.
- Operates reliably in temperature ranges from -40°C to 85°C.
- High switching capacity of 125VA/90W supports various industrial applications.
- Offers excellent vibration and abrasion resistance for durable operation.
- Isolation voltage between coil and contacts rated at 1.5KVAC for safety.
- Suitable for automotive, household appliances, industrial machinery and telecommunication use.
Product Description
Hongfa Europe GMBH HFD2/005-S-L1-D is a subminiature DPDT PCB Signal Relay designed with a 5VDC coil voltage and a 2A switching current rating. Featuring silver alloy contact material provides excellent electrical endurance and reliability in control applications.
This relay supports PCB mounting with compact dimensions of 20.2mm length, 10.2mm width, and 10.6mm height, making it suitable for space-constrained designs. It operates efficiently with a coil power consumption of only 75mW, and coil resistance of 330Ω.
It withstands a wide service temperature range from -40°C to 85°C, ensuring stable performance under various environmental conditions. The relay has a maximum switching power of 90W and an isolation voltage of 1.5KVAC between coil and contacts for added safety.
The contact configuration is DPDT, allowing double pole double throw switching, with a contact resistance of 100mΩ. This industrial-grade relay is resistant to vibration and abrasion, providing a long mechanical lifespan of up to 100 million cycles.
Applications include automotive systems, household appliances, industrial machinery controls, and telecommunications equipment. The relay complies with RoHS standards, emphasizing its environmentally friendly design.
Equipped with silver alloy contacts ensuring high electrical endurance. Low coil power consumption for energy efficiency. Compact dimensions suitable for PCB mounting. Wide operating temperature range for industrial environments.
High switching capacity and long mechanical life. Excellent resistance to vibration and abrasion. High isolation voltage between coil and contacts. Ideal for automotive, industrial, household, and telecom applications. Explore other high-quality relays and signal conditioning equipment in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this signal relay is 5V DC.
It has a switching current rating of 2A.
The dimensions are 20.2mm in length, 10.2mm in width, and 10.6mm in height.
This relay features a DPDT (Double Pole Double Throw) contact configuration.
The maximum operating temperature is 85°C.
The coil power consumption is 75mW.
The isolation voltage between the coil and contacts is rated at 1.5KV AC.
The contact resistance is 100mΩ.
This model is designed for PCB mounting.
It is suitable for automotive systems, household appliances, industrial machinery, and telecommunications equipment.
The minimum operating temperature is -40°C.
This relay complies with RoHS standards, indicating its environmentally friendly design.
