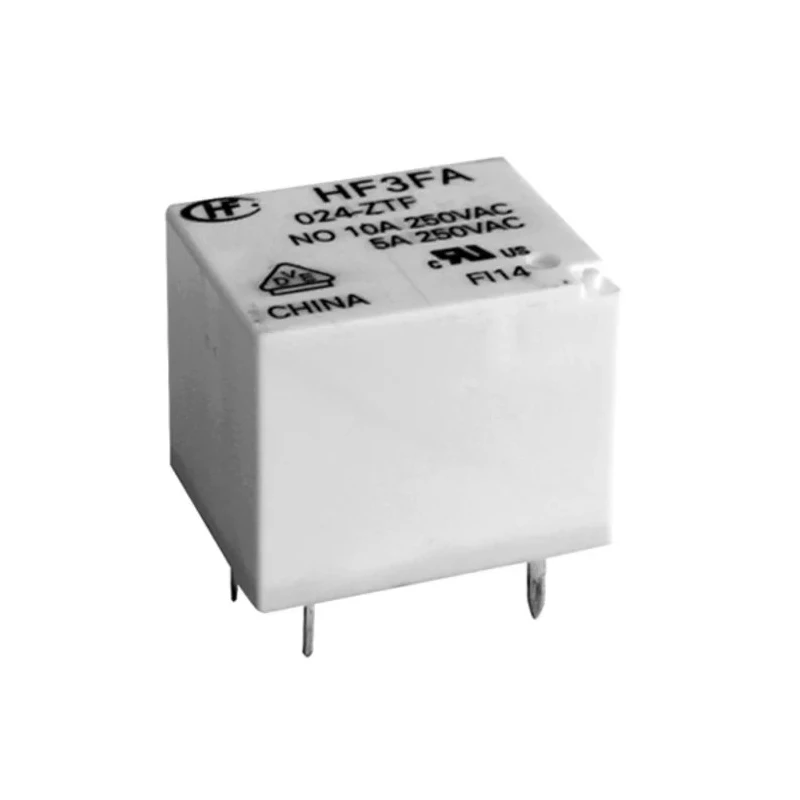

Hongfa Europe GMBH PCB Power Relay, 24V dc Coil, 10A Switching Current, SPDT HF3FA/024-ZTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 15.5mm |
| Length | 19mm |
| Model | HF3FA/024-ZTF |
| Width | 15.2mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF3FA |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.6kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250, 277V |
| Coil Power | 360mW |
Key Features
- Features a subminiature electromagnetic SPDT non-latching contact arrangement.
- Supports up to 10A AC/DC switching current with silver alloy contacts.
- Compact PCB mount design with a low mounting height of 15.5mm.
- Operates efficiently with low coil power consumption of 360mW.
- Supports a wide operating temperature range from -40°C to 85°C.
- Provides high isolation voltage of 2.5kVAC between coil and contacts.
- Suitable for automotive and industrial control applications.
- Compliant with RoHS standards for environmental safety.
Product Description
Hongfa Europe GMBH HF3FA/024-ZTF PCB Power Relay is a high performance power relay featuring a 24V dc coil voltage and a rated switching current of 10A. This SPDT (Single Pole Double Throw) relay is designed for PCB mounting, offering a compact and efficient solution with a low height profile of 15.5mm and size dimensions of 19mm length and 15.2mm width.
The relay employs silver alloy contacts for enhanced durability and low contact resistance of 100mΩ, ensuring minimal signal loss and high reliability in switching operations. It provides high power switching capacity up to 2.8kVA and supports switching voltages of 28V dc and up to 250/277V ac, suitable for a wide range of electrical control applications.
Operating between temperatures of -40°C and 85°C, the relay features a coil power consumption of 360mW and coil resistance rated at 1.6kΩ. It offers robust isolation voltage of 2.5kVAC between coil and contacts, ensuring safety and preventing electrical interference. The PCB pin terminal type and subminiature size facilitate easy integration into circuit boards.
This relay is RoHS compliant, aligning with environmental and safety regulations. It is ideal for industrial automation, control systems, and automotive electronic applications requiring reliable high current switching with compact form factor.
Features a subminiature electromagnetic SPDT non-latching contact arrangement. Supports up to 10A AC/DC switching current with silver alloy contacts. Compact PCB mount design with a low mounting height of 15.5mm. Operates efficiently with low coil power consumption of 360mW.
Supports a wide operating temperature range from -40°C to 85°C. Provides high isolation voltage of 2.5kVAC between coil and contacts. Suitable for automotive and industrial control applications. Compliant with RoHS standards for environmental safety.
Contact resistance maintained at a low 100mΩ for reliable switching. Constructed with durable materials and designed to withstand industrial conditions.
This Hongfa Europe GMBH relay is a reliable choice for demanding industrial, automotive, and manufacturing environments. Explore our extensive catalog for Power Relays and electrical components compatible with your system requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It supports a maximum switching current of 10A.
The dimensions of the relay are 19mm in length, 15.2mm in width, and 15.5mm in height.
It features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range is from -40°C to 85°C.
The relay uses silver alloy contacts for enhanced durability.
The coil power consumption is 360mW.
It provides a high isolation voltage of 2.5kVAC between the coil and contacts.
This model supports switching voltages of 28V DC and up to 250/277V AC.
It is designed for PCB mounting with PCB pin terminals.
Yes, this relay is compliant with RoHS standards for environmental safety.
The contact resistance is maintained at a low level of 100mΩ.
